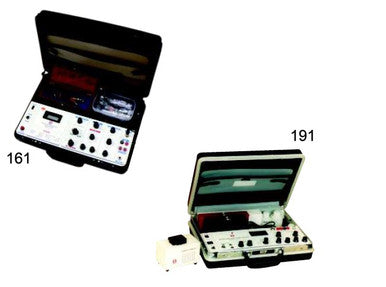

Model 161 Digital Water & Soil Analysis Kit – Multi-Parameter Environmental Analysis
The Model 161 Digital Water & Soil Analysis Kit by Electronics India is a premium quality multi-parameter analytical instrument engineered for precise, simultaneous measurement of vital environmental parameters. Serving as an all-in-one laboratory and field testing platform, this comprehensive kit evaluates 7 critical data points: pH, Conductivity (EC), Total Dissolved Solids (TDS), Dissolved Oxygen (DO), Salinity, Oxidation-Reduction Potential (mV/ORP), and Temperature.
Designed to address diverse ecological and industrial demands, the Model 161 is heavily utilized for drinking water purity validation, agricultural nutrient management optimization, and thorough industrial wastewater testing. Its versatile design seamlessly balances scientific authority with operational flexibility, functioning flawlessly as either a stationary 230V AC mains-operated laboratory machine or as a portable field unit energized by six 1.5V dry cells.
Engineered for harsh on-site environments, the entire meter assembly alongside its analytical electrodes and calibration bottles comes housed within a rugged, secure ABS plastic briefcase. The high-contrast 3½ digit LCD display guarantees readable results anywhere, matching high-tier lab capabilities with ultimate field portability.
Technical Specifications
| Parameter / Feature | Details / Specification Range |
|---|---|
| Display System | 3½ Digit Clear LCD Display |
| pH Measurement | Range: 0 – 14 pH | Resolution: 0.01 pH | Accuracy: ± 0.01 ± 1 Digit (Manual Temp. Comp. 0 – 100 °C) |
| mV (ORP) | Range: 0 to ± 1999 mV | Resolution: 1 mV | Accuracy: ± 1 mV ± 1 Digit |
| Conductivity (EC) | Range: 0 – 200 µS, 0 – 2 mS, 0 – 20 mS, 0 – 200 mS | Resolution: 0.1 µS | Accuracy: ± 0.5% FS ± 1 Digit (Adjustable Cell Constant: 0.4 – 1.5) |
| Total Dissolved Solids (TDS) | Range: 0 – 200 ppm, 0 – 2 ppt, 0 – 20 ppt, 0 – 200 ppt | Resolution: 0.1 ppm | Accuracy: ± 0.5% FS ± 1 Digit (Manual Range Selection) |
| Dissolved Oxygen (DO) | Range: 0 – 20 ppm | Resolution: 0.1 ppm | Accuracy: ± 0.5 ppm ± 1 Digit (Gold/Silver Amperometric Probe Sensor) |
| Salinity | Range: 0 – 50 ppt | Resolution: 0.1 ppt | Accuracy: ± 0.5% FS ± 1 Digit |
| Temperature | Range: 0 – 100 °C | Resolution: 0.1 °C | Accuracy: ± 0.1 °C ± 1 Digit (Semi-Conductor Type Sensor) |
| Power Architecture | Mains-cum-battery operated: 230V ± 10% AC, 50 Hz OR 6 x 1.5V Dry Cells |
| Enclosure Design | Durable, heavy-duty protective ABS Plastic Briefcase execution |
Core Features & User Benefits
The Model 161 multi-parameter kit solves primary field constraints by eliminating the need for multiple, fragile separate meters.
- 7-in-1 Comprehensive Testing Matrix Consolidates your environmental workflow by managing pH, EC, TDS, DO, Salinity, ORP, and Temperature assessments inside a single system.
- Mains-cum-Battery Operation Solves remote testing power shortages through dual-input versatility, adapting to steady benchtop 230V AC lines or field-ready dry cell batteries.
- Rugged ABS Briefcase Enclosure Prevents instrumentation field damage and probe misplacement by safeguarding all parts in a highly resilient, fitted tactical transport shell.
- Amperometric Dissolved Oxygen Precision Utilizes a high-fidelity Gold/Silver amperometric probe to deliver rapid, repeatable DO indicators vital for water health monitoring.
- Fine-Tuned Calibration Control Allows advanced calibration adjustments including custom manual range selection and an adjustable electrical cell constant (0.4 to 1.5).
- Ready-to-Use Complete Kit Accessory Pack Eliminates out-of-box sourcing delays by bundling all necessary high-grade electrodes, cells, probes, and specialized solution storage bottles.
Frequently Asked Questions
What applications benefit most from the Model 161 Water & Soil Analysis Kit?
The Model 161 Digital Water & Soil Analysis Kit is optimized for municipal drinking water testing, environmental wastewater testing, and agricultural soil quality assessment. It provides critical multi-parameter data required by professionals to optimize soil nutrient application efficiency and verify safe effluent discharge levels globally.
Can the Electronics India Model 161 run without a localized grid power source?
Yes, the Model 161 Digital Water & Soil Analysis Kit features a robust mains-cum-battery operated architecture. It operates effortlessly using six 1.5V dry cells when performing remote field testing, or can be plugged directly into standard 230V AC power outlets inside traditional laboratory testing settings.
How many parameters can this specific water and soil analysis kit measure?
The Model 161 Digital Water & Soil Analysis Kit monitors seven fundamental environmental parameters in a single unit. These include pH, Oxidation-Reduction Potential (mV/ORP), Conductivity (EC), Total Dissolved Solids (TDS), Dissolved Oxygen (DO), Salinity, and Temperature data for highly comprehensive aquatic and terrestrial profiles.
What type of sensor technology is utilized for Dissolved Oxygen tracking?
For professional monitoring validation, the Model 161 Digital Water & Soil Analysis Kit utilizes a specialized gold/silver amperometric probe. This advanced electrochemical sensor delivers superior measurement resolution and precision, ensuring highly dependable analysis of biological oxygen availability during vital aquatic health surveys.
How is the kit protected against damage during transportation for field testing?
The entire Model 161 Digital Water & Soil Analysis Kit along with its sensitive sensor electrodes is fitted cleanly inside a heavy-duty ABS plastic briefcase. This impact-resistant structural enclosure ensures reliable instrument protection against fieldwork shocks, managing safe equipment transport across challenging analytical environments.
