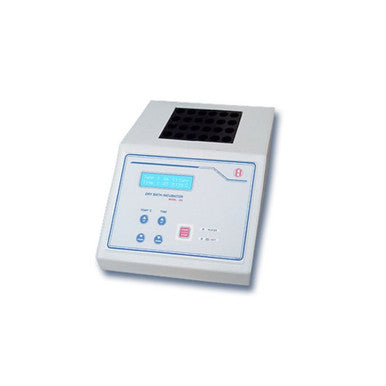

Dry Bath Incubator Model 352: Precision Temperature Control for Laboratory Applications:
The Dry Bath Incubator Model 352 is a highly sensitive, microcontroller-based instrument engineered to provide precise and constant temperatures for demanding laboratory tasks. It controls the heating of a thermally conducting block, ensuring reliable temperature uniformity for your samples.
This model is ideal for environments requiring highly controlled thermal conditions, utilizing advanced electronic regulation to guarantee precision for critical experiments.
Advanced Design and Control:
The core of the Model 352 features a specially fabricated block designed to accommodate 24 standard test tubes, each up to 12 mm in diameter. The direct contact between the test tubes and the block walls ensures efficient heat transfer, delivering precise temperatures to the contents.
Temperature management is handled by a precision temperature sensor (LM 35 Semi Conductor) and a highly sensitive automatic electronic temperature controller. This system utilizes advanced PID (Software Controlled) technology for exceptional stability and accuracy. Operational status and settings are easily viewed via a large 16x2 line alphanumeric LCD display, complete with a backlit feature for clarity.
Versatile Laboratory Applications
The Dry Bath Incubator Model 352 is widely used across various scientific, clinical, and industrial fields due to its high accuracy and reliable performance.
Key areas of application include:
• Molecular Biology: Essential for DNA amplification, preparation steps for electrophoresis (pre-degeneration), and solidification procedures.
• Sample Management: Used broadly for samples cultivation, preservation, and chemical reactions.
• Industry and Research: Critical for use in clinical diagnostics, pharmaceutical research, chemical analysis, food safety testing, environmental monitoring, and general quality inspection processes.
Technical Specifications:
|
Parameter
|
Detail
|
|
Model
|
352
|
|
Instrument Type
|
Microcontroller-based Dry Bath Incubator
|
|
Block Size
|
24 holes for 12 mm test tubes
|
|
Temperature Range
|
+5°C Above ambient up to 100°C
|
|
Temperature Accuracy
|
± 2°C
|
|
Temperature Controller
|
PID (Software Controlled)
|
|
Temperature Sensor
|
LM 35 (Semi Conductor)
|
|
Maximum Heating Power
|
125 W
|
|
Timer
|
1-99 Minutes
|
|
Display
|
16x2 Line Alphanumeric LCD Display (with backlit)
|
|
Power Supply
|
230V ±10% AC, 50Hz
|
|
Dimensions (L x W x H)
|
190 x 220 x 125 mm
|
|
Weight
|
2.70 Kgs. (Approx.)
|
