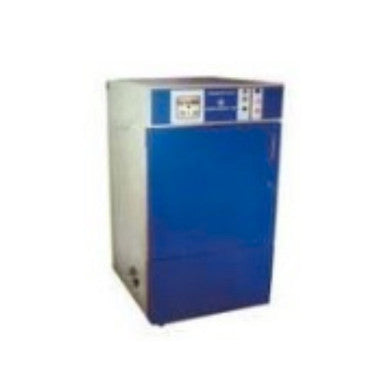

EI-DVI Laboratory Incubator with Digital Temperature Controller

Rs. 17,405.00 INR

~~Rs. 0.00 INR~~ Rs. 17,405.00 INR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Product Overview:

The Laboratory Incubator (EI-DVI Series) is a robust and essential instrument designed to provide a highly stable, temperature-controlled environment vital for supporting the growth of microbiological cultures, performing bacteriological work, and other laboratory processes requiring consistent thermal performance. These incubators are built as sturdy double-walled units, ensuring optimal performance and minimizing heat loss. They are available in several convenient sizes to suit various laboratory capacities.

Advanced Temperature Control (EI-DVI System):

This incubator series features the high-performance EI-DVI Digital Temperature Controller system for reliable and precise thermal management.

• Precise Regulation: Temperature is controlled by a Microprocessor PID controller or solid-state electronic control with a sensor, ensuring high accuracy.

• Dual Display & Auto Tune: The controller typically includes a dual display and auto-tune facility for ease of operation and accurate setting.

• Range and Accuracy: The typical operational temperature range is 5°C above room temperature (ambient) up to 60°C. The temperature accuracy is maintained at approximately ± 0.5°C or better.

• Safety Features: Heating elements are engineered for longevity and efficiency.

Construction and Design Features

These incubators are engineered for durability, stability, and ease of maintenance.

• Double Wall Construction: The unit features double-walled construction. The outer body is often made of mild steel, which is powder coated for protection.

• Inner Chamber Material: The inner chamber is typically constructed from high-quality stainless steel (such as S.S. 304 grade), which may be anodized stainless steel sheet.

• Insulation: High-quality glass wool insulation is placed between the inner and outer walls to maintain chamber stability and efficiently minimize heat losses.

• Doors for Observation: The units are fitted with a double door system: an inner clear acrylic or glass door allows for observation of samples without disturbing the internal environment, while the outer metal door provides robust insulation and closure.

• Storage and Support: Special stainless steel (S.S.) racks are provided to hold material inside the chamber.

Air Circulation for Uniformity

To ensure maximum thermal performance and stability, these incubators utilize a forced convection design.

• Uniform Temperature: An air circulation motor with a blower is included to facilitate the circulation of air, resulting in uniform temperature throughout the inner chamber.

• Efficient Circulation: This forced convection mechanism leads to faster temperature response rates, improved uniformity, and reduced fluctuation inside the unit.

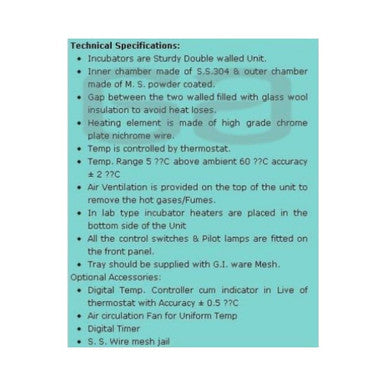

Technical Specifications:

The following table details the key specifications for the requested inner dimensions of the Digital Temperature Controlled Incubator (EI-DVI Series).

Inner Dimension (W x D x H)	Approximate Capacity (Ltr)	Typical Wattage (W)	Standard Shelves
12” x 12” x 12” (300mm x 300mm x 300mm)	28 Ltr	250 W	1
14” x 14” x 14” (355x355x355mm)	45 Ltr	300 W	2
18” x 18” x 18”(455x455x455mm)	95 Ltr	500 W	2
24” x 24” x 24”( 605x605x605mm)	224 Ltr	900 W	3

General Operating Parameters:

Feature	Specification
Temperature Control	Digital Microprocessor PID Controller (EI-DVI Brand)
Temperature Range	5°C above ambient to 60°C
Temperature Accuracy	± 0.5°C
Inner Chamber Material	Stainless Steel (S.S.)
Outer Body Material	Mild Steel (M.S.) Powder Coated
Insulation	Glass Wool Insulation
Air Circulation	Forced air circulation with motor/blower
Heater Type	Nichrome wire heating element (may be ‘U’ shape or three-side heating)
Door Type	Double door: Outer metal door & Inner acrylic/glass viewing door
Power Supply	Typically 220-230 Volts AC, 50 Hz
