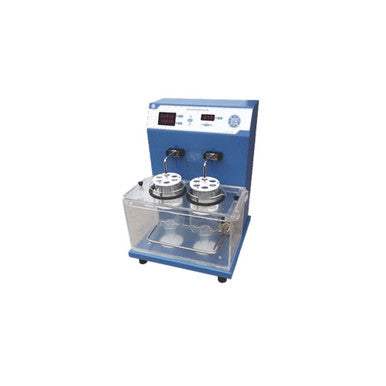

EI-DVI Model 2901 Tablet Disintegration Apparatus – USP/IP Compliant Pharmaceutical Testing System
The EI-DVI Model 2901 Tablet Disintegration Apparatus is a precision-engineered pharmaceutical testing instrument designed for accurate determination of tablet and capsule disintegration time in accordance with USP, BP, and IP pharmacopoeial standards. Built using advanced microprocessor technology and modern laboratory engineering principles, this robust disintegration tester delivers highly reliable, repeatable, and reproducible analytical performance for pharmaceutical quality control and research laboratories.
Widely used in pharmaceutical manufacturing facilities, quality assurance departments, formulation development centers, and R&D laboratories, the Model 2901 enables simultaneous testing of two batches of six tablets using dual USP basket assemblies. Each basket assembly is independently controlled by its own dedicated motor and timer, allowing greater flexibility and improved laboratory productivity during routine disintegration analysis.
The instrument incorporates a durable acrylic water bath equipped with a large stainless-steel heating system for uniform heat distribution and highly stable temperature maintenance. Its advanced dual-channel temperature monitoring system continuously supervises both the water bath and reaction beaker temperatures using highly accurate PT100 or semiconductor sensors, ensuring dependable test conditions with temperature accuracy maintained within ±0.2°C.
Designed for simplified operation and user convenience, the Model 2901 features soft-touch membrane keys, LED displays, intelligent status indicators, and automatic basket parking functionality. At the completion of testing, the baskets automatically move to the top position, minimizing operator intervention and improving workflow efficiency.
With programmable microprocessor-based controls, dual independent testing channels, and compliance with international pharmacopoeial standards, the EI-DVI Model 2901 Tablet Disintegration Tester offers an ideal combination of precision, reliability, automation, and operational convenience for modern pharmaceutical testing environments.
Technical Specifications
| Parameter / Feature | Details |
|---|---|
| Product Type | Tablet Disintegration Test Apparatus |
| Model Number | 2901 |
| Compliance Standards | USP, BP & IP Specifications |
| Number of Baskets | 2 USP Basket Assemblies |
| Number of Motors | 2 Independent Motors |
| Number of Timers | 2 Independent Timers |
| Stroke Length | 55 mm ± 0.5 Strokes per Minute |
| Timer Display | 5 Digit Seven Segment Red LED Display |
| Timer Range | 1 Second to 9 Hours, 59 Minutes, 59 Seconds |
| Temperature Display | 3 Digit LED Display |
| Temperature Control | Microprocessor Based using PT100 / Semiconductor Sensor |
| Temperature Range | 20.0°C to 39.9°C |
| Temperature Accuracy | ± 0.2°C |
| Reaction Vessel | 1000 ml Glass Beakers (2 Nos.) |
| Water Bath Type | Acrylic Water Bath with Stainless Steel Heater |
| Heater Power | 0.5 KW |
| Keyboard Type | 10 Soft Touch Membrane Keys |
| Auto Parking Function | Automatic Basket Positioning at Test Completion |
| Electrical Supply | 220/230V AC ±10%, 50/60 Hz, 44VA |
| Dimensions (W x H x D) | 36 x 20 x 32 cm |
| Weight | 17 Kg |
| Standard Accessories | 2 USP Basket Sets, External Temperature Sensor, Mains Lead, Dust Cover, Instruction Manual |
Core Features & User Benefits
The EI-DVI Model 2901 Tablet Disintegration Apparatus is engineered to deliver precise pharmaceutical disintegration testing with advanced automation, dependable temperature control, and superior operational efficiency.
- USP/BP/IP Compliant Testing Designed to perform accurate tablet and capsule disintegration testing according to international pharmacopoeial standards for reliable pharmaceutical quality control.
- Dual Independent Testing Stations Two independently controlled basket assemblies allow simultaneous testing of separate batches, improving productivity and laboratory throughput.
- Microprocessor-Based Operation Advanced microprocessor technology ensures highly accurate timing, temperature regulation, reproducibility, and user-friendly operation during testing procedures.
- Independent Motors and Timers Each basket assembly operates with its own dedicated motor and timer, enabling flexible and efficient testing workflows.
- Precise Temperature Monitoring Dual-channel temperature monitoring with PT100 or semiconductor sensors maintains stable testing conditions with ±0.2°C accuracy.
- Uniform Heating System The stainless-steel heater provides even heat distribution throughout the acrylic water bath for dependable pharmaceutical analysis.
- Automatic Basket Parking At the end of the testing cycle, baskets automatically return to the top position, reducing operator intervention and improving convenience.
- User-Friendly LED Interface Bright LED displays, status indicators, and soft-touch membrane keys simplify parameter monitoring and instrument operation.
Frequently Asked Questions (FAQ)
What is the EI-DVI Model 2901 Tablet Disintegration Apparatus used for?
The Model 2901 is used for determining the disintegration time of pharmaceutical tablets and capsules according to USP, BP, and IP pharmacopoeial standards. It is commonly used in pharmaceutical quality control laboratories and formulation development facilities.
How many tablets can be tested simultaneously?
The apparatus is designed to test two batches of six tablets simultaneously using two independent USP basket assemblies, improving testing efficiency and laboratory productivity.
Does the instrument provide accurate temperature control?
Yes, the Model 2901 features dual-channel microprocessor-based temperature monitoring using PT100 or semiconductor sensors, maintaining temperature accuracy within ±0.2°C for highly reproducible pharmaceutical testing.
What is the benefit of independent motors and timers?
Independent motors and timers allow each basket assembly to operate separately, enabling laboratories to perform different tests simultaneously with greater flexibility and improved operational efficiency.
What accessories are supplied with the Model 2901?
The instrument is supplied complete with two USP basket sets, an external temperature sensor, mains lead, dust cover, and instruction manual, providing a ready-to-use pharmaceutical testing solution.
