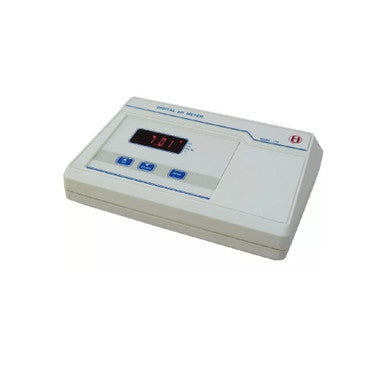

Electronics India Model 111 Digital pH Meter
The Electronics India Model 111 Digital pH Meter is a precision instrument engineered for the accurate determination of pH and mV values in any aqueous solution. Utilizing the latest microcontroller technology, this meter provides highly accurate readings, displayed clearly on its 3½ digit LED display. Designed for reliability and ease of use, it simplifies your measurement processes across various applications.
Key Features
• Measures pH & mV: Provides versatile measurement capabilities for both pH and millivolt readings.
• Highly Accurate using Microcontroller: Employs advanced microcontroller technology to ensure the most precise results.
• Manual Temperature Compensation: Features a manual temperature compensation facility for accurate readings over a range of 0 to 100°C.
• Auto Buffer Recognition: Automatically recognises buffer solutions, streamlining the calibration process.
• One-Touch Calibration: Allows for quick and effortless calibration with a single touch, supporting up to 3-point calibration.
• Calibration Memory Retention: Calibration settings are stored in the memory even when the instrument is switched off, eliminating the need for frequent recalibrations.
• Soft Touch Keys: Equipped with soft touch keys for comfortable and intuitive operation.
Applications
The Electronics India Model 111 Digital pH Meter is an exceptionally useful instrument for a wide array of sectors and laboratories, including:
• Agriculture and Soil Analysis Laboratories
• Swimming Pools
• Fertilizer Plants
• Chemical Industries
• Pharmaceutical Industries
• Petroleum Refineries
• Textile Plants
Technical Specifications
|
Feature
|
Model 111
|
|
Display
|
3 ½ Digit LED
|
|
Range pH
|
-2.00 to 20.00 pH (or 0 to 14.00 pH)
|
|
Range mV
|
0 to ±1999 mV
|
|
Range °C
|
–
|
|
Resolution pH
|
0.01 pH
|
|
Resolution mV
|
1 mV
|
|
Resolution °C
|
–
|
|
Accuracy pH
|
± 0.01 pH
|
|
Accuracy mV
|
± 1 mV
|
|
Accuracy °C
|
–
|
|
Temperature Compensation
|
Manual: 0 to 100°C
|
|
Input Impedance
|
> 10 ohms
|
|
Slope Control
|
80 to 120%
|
|
Sensor
|
Combined pH Electrode
|
|
Power
|
12V DC using 230V ± 10% AC
|
|
Dimensions (L x B x H)
|
270 x 202 x 80 mm (l x b x h)
|
|
Weight
|
0.8 Kg approx.
|
Note: Specifications are subject to change due to continuous improvements.
Included Accessories
The Electronics India Model 111 Digital pH Meter comes complete with the following accessories for immediate use:
• Combination pH Electrode
• Buffer Tablets 4 pH & 7 pH
• Operation Manual
• Buffer Bottles (4 & 7 pH)
• Dust Cover
• Electrode Stand
