Product Overview and Application:

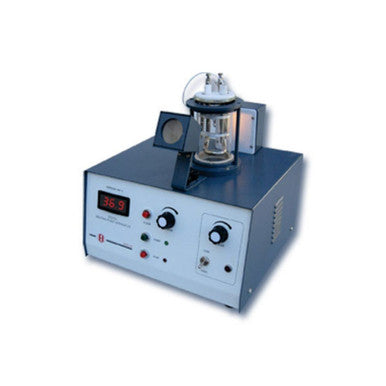

The Digital Melting Point Apparatus Model 935, manufactured by Electronics India (EI), is a specialized laboratory instrument designed for the accurate measurement and observation of melting points and melting ranges of solid samples. The determination of a substance's melting point is crucial for identifying pure substances and verifying sample purity in various scientific fields.
This apparatus is particularly useful for the Pharmaceutical Industry, where assessing the purity of active pharmaceutical ingredients (API) and ensuring adherence to specifications is vital for drug safety and efficacy.
Advanced Measurement Technology
The Model 935 is engineered for high accuracy and ease of operation. It uses a digital temperature indicator equipped with a PT100 RTD sensor.
Precision Heating and Temperature Control:
The core system involves a 200 ml capacity silicon oil-bath covered with a PTFE or Teflon cover. Uniform heating across the bath is ensured by an in-built magnetic stirrer, with the stirrer speed being controllable via a front knob. An electronic controller allows for precise adjustment of the silicon oil-bath heating rate.
Digital Display and Resolution
Model 935 offers high resolution and clear visibility. It utilizes a 4 Digit, 7-Segment LED Display. The digital readout provides a high resolution of 0.1 °C, enabling precise recording of the melting range.
Observation and Operation
The apparatus features a large magnifier and a glare-free background illuminator to facilitate stain-free observation of the sample as it melts inside the capillary tube.
Operational control includes:
• Start Switch: Used to initiate the measurement of the melting point.
• Stop Switch: Used to halt the measurement once the sample has melted, with the display showing the last temperature recorded.
• Clear Switch: Used to reset the display reading to zero.
Specifications:
|
Feature
|
Specification (Model 935)
|
|
Brand
|
Electronics India (EI)
|
|
Model
|
935
|
|
Type
|
Digital Melting Point Apparatus
|
|
Temperature Range
|
0 – 300 °C
|
|
Resolution
|
0.1 °C
|
|
Display
|
4 Digit, 7-Segment LED Display
|
|
Heating System
|
Silicon Oil-Bath (200 ml capacity) with Oil Immersion Heater
|
|
Stirring
|
In-built Magnetic Stirrer, speed controllable with front knob
|
|
Temperature Sensor
|
PT100 RTD sensor
|
|
Observation
|
Glare-free Illuminator and Large Magnifier
|
|
Capillary Tube Size
|
75 mm long, 0.8 – 1.1 mm internal diameter
|
|
Boiling Point Tubes
|
75 mm long glass tube
|
|
Recommended Sample Amount
|
Fine, dry powder, 4 – 6 mm high in the tube
|
|
Power
|
230 V ± 10% AC, 50 Hz
|
|
Dimensions (L x B x H)
|
315 x 290 x 230 mm (Approx.)
|
|
Weight
|
12 Kg (Approx.)
|
|
Outer Body Material
|
Plastic (or Mild Steel/Rectangular shape in some listings)
|
Included Accessories and Components:
The apparatus comes complete with necessary accessories for immediate use. These typically include:
• A box of Capillaries.
• Boiling Point Tubes (usually 2 sets).
• Thermometer with a range of 0 – 360 °C.
• Magnetic Capsule.
• Bottle of Silicon Oil (e.g., 250 ml).
• Glass Cylindrical Beaker with Teflon/PTFE cover fitted with an immersion heater.
• Operation Manual and Dust Cover.
