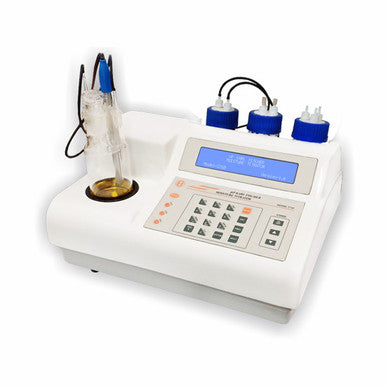

ESICO 2760 Microprocessor KF Moisture Titrator
ESICO 2760 Microprocessor KF Moisture Titrator
The Model 2760 Microprocessor KF Moisture Titrator from Environmental and Scientific Instruments Co. (ESICO) represents the pinnacle of volumetric titration technology. This ISO 9001:2015 certified laboratory instrument combines advanced microcontroller technology with dynamic motorized dispensing to deliver exceptional accuracy and reproducibility for moisture analysis across various sample types.Key Features & Benefits
- Dynamic Motorized Dispensing - Highly sensitive system for more accurate and faster operation
- Comprehensive Measurement Range - Analyzes moisture from 100 ppm to 100%
- Multiple Result Formats - Auto computation of moisture in ppm, percentage, and mg H₂O
- Superior Resolution - Precise 0.01 ml titrant volume resolution
- User-Friendly Interface - 20 soft-touch membrane keys with alphanumeric keypad
- Clear End-Point Detection - Both visual LED and audible alarm indicators
- Automatic Titer Calculation - Built-in facility using repeated averaging method for accuracy
- Extensive Storage Capabilities - Stores up to 300 titration results
- Method Storage - Saves up to 90 user-defined setup files for streamlined operation
- Pharma Compliance - Calibration and validation reports meet pharmaceutical requirements
- Enhanced Security - 2-tier password protection (Admin & User)
- Comprehensive Reporting - Condensed, statistical, and detailed report options
- External Connectivity - RS232 interface for printer/PC connection and data export
- Battery Backup - Retains results and parameters even when powered off
- Integrated Components - Built-in magnetic stirrer with adjustable speed
- Large Display - 40 x 4 line alphanumeric LCD for clear visibility
- 1-Year Warranty - Manufacturer-backed quality assurance
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ESICO 2760 |
| Measuring Range | 100 ppm to 100% of moisture |
| Measuring Method | Karl Fischer volumetric titration method |
| KF Dispensing | Highly sensitive motorized dynamic dispensing system |
| Resolution of Titrant Volume | 0.01 ml |
| Indication of Titrant Volume | 0.00 to 99.99 ml on display |
| Moisture Content Calculation | Percentage: 0 to 100% PPM: 100 to 999999 mg H₂O: 0.00 to 999.99 |
| KF Titer Factor | In-built automatic calculation facility |
| End Point Alarm | Visual LED and audible alarm |
| Wait Time for End Point Alarm | Adjustable (1 to 99 seconds) |
| Dispensing Pump Calibration | Available through keyboard |
| Keyboard | 20 keys soft touch, membrane type |
| Sample Storage | Up to 300 samples |
| Display | 40 x 4 line alphanumeric LCD display |
| Clock | In-built clock with date and time display |
| Stirrer | In-built magnetic stirrer with adjustable speed |
| Reagent Bottles | 3 x 250 ml bottles for KF Reagent, Methanol & Calcium Chloride |
| Printer/PC Interface | Through RS232 for serial printing using 80 column dot matrix printer |
| Power | 230 V AC ± 10%, 50 Hz |
| Dimensions (L x B x H) | 362 x 295 x 180 mm (Approx.) |
Applications
The ESICO 2760 KF Moisture Titrator is designed for precise moisture determination across multiple industries and sample types:Pharmaceutical Applications
- Raw Material Testing - Analyze moisture content in active pharmaceutical ingredients and excipients
- Quality Control - Ensure finished pharmaceutical products meet moisture specifications
- Stability Studies - Monitor moisture changes during product shelf-life evaluation
- Method Validation - Support analytical method validation with compliant reporting features
- GMP Compliance - Meet regulatory requirements with validation and calibration reports
Chemical Industry ESICO 2760 Microprocessor KF Moisture Titrator
- Solvent Analysis - Determine water content in organic solvents and chemical reagents
- Raw Material Verification - Test incoming materials against moisture specifications
- Process Control - Monitor moisture levels during chemical manufacturing
- Quality Assurance - Verify final products meet moisture content requirements
- Research & Development - Support new product formulation and testing
Food & Beverage Industry ESICO 2760 Microprocessor KF Moisture Titrator
- Oil & Fat Analysis - Measure moisture in edible oils and food-grade fats
- Ingredient Testing - Verify moisture specifications in food additives and ingredients
- Quality Control - Ensure consistent moisture levels in finished food products
- Shelf-Life Studies - Monitor moisture stability during product aging tests
- Packaging Validation - Test moisture barrier properties of packaging materials
Additional Applications ESICO 2760 Microprocessor KF Moisture Titrator
- Petrochemical Testing - Analyze water content in petroleum products and lubricants
- Polymer Analysis - Determine moisture in plastics, resins, and polymer additives
- Cosmetics Manufacturing - Test moisture levels in cosmetic ingredients and formulations
- Environmental Testing - Analyze water content in environmental samples and extracts
- Research Laboratories - Support various moisture analysis applications in academic and industrial research
Advanced Features Explained
Dynamic Motorized Dispensing System ESICO 2760 Microprocessor KF Moisture Titrator
The ESICO 2760 features an innovative dynamic motorized dispensing system that provides significant advantages over conventional titrators:- Enhanced Precision - Delivers titrant in exact 0.01 ml increments for superior accuracy
- Faster Operation - Dynamic dispensing optimizes titration speed based on reaction rate
- Improved Reliability - Eliminates the fragility and maintenance issues of glass burettes
- Consistent Performance - Provides uniform titrant delivery for reproducible results
- Extended Lifespan - Robust construction ensures years of reliable operation
Comprehensive Data Management ESICO 2760 Microprocessor KF Moisture Titrator
The ESICO 2760 offers extensive data storage and reporting capabilities to meet laboratory documentation needs:- 300-Sample Storage - Retains results from a large number of analyses
- 90 Method Files - Stores user-defined setup parameters for different sample types
- Multiple Report Formats - Options for condensed, statistical, and detailed reporting
- PC Connectivity - RS232 interface for data export to external systems
- On-Demand Printing - Print stored results even at a later time
- Battery-Backed Memory - Data retention even during power interruptions
Pharmaceutical Compliance Features ESICO 2760 Microprocessor KF Moisture Titrator
Designed with regulatory requirements in mind, the ESICO 2760 includes several features to support compliance in regulated environments:- Validation Reports - Generate documentation to support equipment qualification
- Calibration Records - Maintain traceability of instrument calibration
- Two-Tier Security - Admin and User password protection prevents unauthorized changes
- Audit Trail - Track date, time, and batch information with results
- Method Standardization - Store validated methods to ensure consistent procedures
User-Friendly Operation ESICO 2760 Microprocessor KF Moisture Titrator
The ESICO 2760 is designed for intuitive operation, with features that guide users through the titration process:- On-Screen Prompts - Step-by-step guidance throughout the titration procedure
- Alphanumeric Keypad - Easy entry of sample information and parameters
- Large LCD Display - Clear visibility of titration progress and results
- Automated Calculations - Eliminates manual computation of moisture content
- Method Storage - Quickly recall saved procedures for routine analyses
Standard Accessories ESICO 2760 Microprocessor KF Moisture Titrator
The ESICO 2760 KF Moisture Titrator comes complete with all necessary components for immediate operation:- Dual Platinum Electrode - For precise endpoint detection
- Titration Vessel - Specialized glassware for KF titration
- Built-in Magnetic Stirrer - For effective sample mixing
- Teflon Coated Magnetic Stirring Capsule - Provides efficient stirring
-
Reagent Bottles:
- 250 ml Bottle for Methanol
- 250 ml Reservoir Bottle for KF Solution
- 250 ml Bottle for Calcium Chloride
- 25 μl Syringe - For precise sample introduction
-
Adaptors:
- Adaptor for KF Reservoir
- Adaptor for acetone Reservoir Bottle
-
Tubing Sets:
- Set of Dispenser Tubes
- Set of Connecting Tubes
- Main Lead - Power connection cable
- Instruction Manual - Comprehensive user guide
Operating Principle ESICO 2760 Microprocessor KF Moisture Titrator
The ESICO 2760 employs the Karl Fischer volumetric titration method, a highly specific technique for water determination. This chemical method is based on the reaction between iodine and water in the presence of sulfur dioxide and an alcohol (typically methanol). During titration, the titrator precisely dispenses Karl Fischer reagent into the sample mixture until all water is consumed, as indicated by the appearance of excess iodine. The microprocessor-controlled system monitors this process through a dual platinum electrode, automatically detecting the endpoint and calculating the moisture content based on sample weight, titrant volume, and titer factor. The dynamic dispensing system intelligently adjusts the titrant delivery rate based on the proximity to the endpoint, starting with rapid addition and slowing down as the endpoint approaches. This optimizes both speed and accuracy, making the ESICO 2760 faster and more precise than conventional titrators.Why Choose the ESICO 2760?
Superior Accuracy & Precision ESICO 2760 Microprocessor KF Moisture Titrator
The combination of dynamic motorized dispensing, high-resolution titrant delivery (0.01 ml), and automated endpoint detection ensures exceptional accuracy in moisture determination. This precision is critical for applications where moisture content directly impacts product quality, stability, and compliance with specifications.Enhanced Productivity
With features like method storage, faster titration through dynamic dispensing, and comprehensive data management, the ESICO 2760 significantly improves laboratory efficiency. The ability to store 90 method setups eliminates reconfiguration time for routine analyses, while the large sample memory (300 results) supports batch processing of samples.Regulatory Compliance ESICO 2760 Microprocessor KF Moisture Titrator
The ESICO 2760 is designed to meet the stringent requirements of regulated industries, particularly pharmaceuticals. The calibration and validation reporting features, two-tier password protection, and comprehensive data management capabilities help laboratories comply with GMP and other quality standards.Versatile Applications ESICO 2760 Microprocessor KF Moisture Titrator
With its wide measurement range (100 ppm to 100%) and ability to analyze various sample types (liquids, powders, fine particles, fibers), the ESICO 2760 is suitable for diverse laboratory applications across multiple industries. The extensive customization options allow method optimization for specific sample matrices.Quality Assurance ESICO 2760 Microprocessor KF Moisture Titrator
Manufactured by an ISO 9001:2015 certified company, the ESICO 2760 is built to high-quality standards. The 1-year warranty provides additional confidence in the instrument's performance and reliability.About ESICO 2760 Microprocessor KF Moisture Titrator
Environmental and Scientific Instruments Co. (ESICO) is an ISO 9001:2015 certified manufacturer specializing in precision laboratory instruments. Their comprehensive product range includes spectrophotometers, dissolution test apparatus, flame photometers, pH meters, and numerous other analytical instruments designed for pharmaceutical, chemical, educational, and research applications. With a commitment to quality, innovation, and customer satisfaction, ESICO provides reliable instrumentation solutions to laboratories worldwide.Additional Products from ESICO 2760 Microprocessor KF Moisture Titrator
ESICO offers a comprehensive range of laboratory equipment including:- Single Beam and Double Beam UV/VIS Spectrophotometers
- Tablet Dissolution Test Apparatus
- Disintegration Apparatus
- Digital Friability Test Apparatus
- Melting Point Apparatus
- Antibiotic Zone Reader
- Leak Test Apparatus
- Tap Density Tester
- Flame Photometers
- Hardness Testers
- Haemoglobin Meters
- Digital pH Meters
- Digital Photo Fluorometers
- Digital Conductivity Meters
- Turbidity Meters
- Digital DO Meters
- Digital TDS Meters
- Digital Telethermometers
- Water & Soil Analysis Kits
- Digital Salinity Meters
- Digital Colony Counters
Summary ESICO 2760 Microprocessor KF Moisture Titrator
The ESICO 2760 Microprocessor KF Moisture Titrator represents the pinnacle of moisture analysis technology. By combining dynamic motorized dispensing with advanced microcontroller technology, this instrument delivers superior accuracy, speed, and ease of use for a wide range of moisture determination applications. With its extensive data management capabilities, pharmaceutical compliance features, and user-friendly operation, the ESICO 2760 is ideally suited for quality control laboratories, research facilities, and regulated environments where precise moisture analysis is critical. The comprehensive accessory package ensures immediate functionality, while the robust construction and ISO 9001:2015 certified manufacturing provide confidence in long-term performance.Product overview
