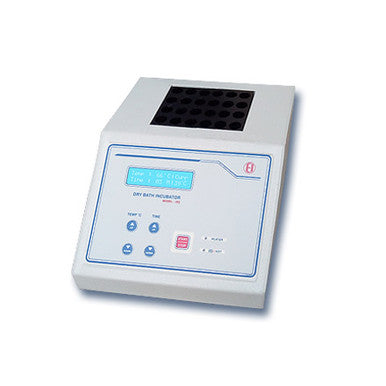

ESICO 352 Dry Bath Incubator
ESICO 352 Dry Bath Incubator with Precision Temperature Control
The ESICO 352 Dry Bath Incubator is a microcontroller-based laboratory instrument designed for precise temperature control of biological and chemical samples. Manufactured by ESICO International, an ISO 9001:2015 certified company, this high-quality incubator provides consistent and accurate heating for various laboratory applications including sample cultivation, preservation, DNA amplification, pre-degeneration of electrophoresis, and solidification.Key Features & Benefits
- Precision Temperature Control - Advanced PID (software-controlled) system for stable and accurate heating
- 24-Tube Capacity - Thermally conducting block designed to fit 24 test tubes of 12mm diameter
- Wide Temperature Range - Operates from 5°C above ambient temperature up to 100°C
- High Temperature Accuracy - Maintains temperature within ±2°C for reliable results
- LCD Display with Backlight - 16x2 line alphanumeric display for clear readings and parameter monitoring
- Programmable Timer - Adjustable from 1 to 99 minutes for precise incubation timing
- High-Quality Temperature Sensor - LM 35 semiconductor sensor for responsive and accurate temperature readings
- Efficient Heat Transfer - Test tubes contact block walls directly for constant and even heating
- Compact Design - Space-saving dimensions (190 x 220 x 125mm) fit easily on laboratory benchtops
- Lightweight Construction - Weighs only 2.70 kg, making it portable and easy to reposition
- Reliable Power System - Operates on standard laboratory power (230V±10% AC, 50Hz)
- One-Year Warranty - Manufacturer's warranty ensures product reliability and customer satisfaction
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ESICO 352 |
| Block Size | 24 holes for 12mm diameter test tubes |
| Temperature Range | +5°C above ambient up to 100°C |
| Temperature Accuracy | ±2°C |
| Temperature Sensor | LM 35 (Semiconductor) |
| Maximum Heating Power | 125 W |
| Temperature Controller | PID (Software Controlled) |
| Timer | 1-99 Minutes |
| Display | 16x2 Line Alphanumeric LCD Display with backlight |
| Power Supply | 230V±10% AC, 50Hz |
| Dimensions | 190 x 220 x 125mm |
| Weight | 2.70 Kgs. (Approx.) |
| Warranty | 1 Year |
Applications
The ESICO 352 Dry Bath Incubator is designed for a wide range of laboratory applications across multiple industries and research fields:- Clinical Laboratories - Sample preparation, enzymatic reactions, and serum analysis
- Molecular Biology - DNA amplification, PCR sample preparation, and enzyme digestion
- Microbiology - Culture growth and sample incubation
- Pharmaceutical Research - Drug stability testing and formulation development
- Chemical Analysis - Controlled heating for chemical reactions and sample preparation
- Food Safety Testing - Sample incubation for microbiological testing
- Environmental Testing - Preparation of samples for pollution analysis
- Quality Control - Consistent temperature maintenance for standardized testing
- Educational Institutions - Teaching laboratories for biological and chemical experiments
- Research Facilities - Various applications requiring precise temperature control
Working Principle ESICO 352 Dry Bath Incubator
The ESICO 352 Dry Bath Incubator operates on a simple yet effective principle:- Direct Heat Transfer - The thermally conducting block provides direct contact with test tubes, ensuring efficient heat transfer to samples
- Precision Sensing - The LM 35 semiconductor temperature sensor continuously monitors block temperature
- PID Control - The microcontroller uses advanced PID (Proportional-Integral-Derivative) algorithms to maintain precise temperature control
- Feedback System - The controller continuously adjusts heater output based on temperature feedback, preventing overshoot and ensuring stability
- User Interface - The LCD display and control panel allow easy temperature setting and monitoring
Advantages of Dry Bath Technology
Compared to traditional water baths, the ESICO 352 Dry Bath Incubator offers several significant advantages:- No Water Maintenance - Eliminates the need for water filling, monitoring, and algae prevention
- Reduced Contamination Risk - Dry system prevents waterborne contamination of samples
- Faster Heating - Direct heat transfer provides quicker temperature stabilization
- More Precise Control - PID controller maintains consistent temperature without water evaporation issues
- Safer Operation - No risk of electrical hazards associated with water baths
- Lower Humidity - Doesn't increase ambient humidity in the laboratory environment
- Energy Efficient - Requires less power to maintain temperature compared to water baths
- More Compact Design - Smaller footprint saves valuable bench space
Quality Certification ESICO 352 Dry Bath Incubator
ESICO International is an ISO 9001:2015 certified company, ensuring that the ESICO 352 Dry Bath Incubator is manufactured according to internationally recognized quality management standards. This certification reflects the company's commitment to consistent quality, customer satisfaction, and continuous improvement in their manufacturing processes.About ESICO International ESICO 352 Dry Bath Incubator
ESICO International is a leading manufacturer of scientific and laboratory equipment, with a comprehensive product range including:- Spectrophotometers (Single Beam and Double Beam UV/VIS)
- Clinical analyzers (Semi Auto Analyzers and Haemoglobin Meters)
- Electrochemical instruments (pH Meters, Conductivity Meters, TDS Meters, DO Meters)
- Water quality equipment (Turbidity Meters, Nephelometers, Water & Soil Analysis Kits)
- Pharmaceutical testing equipment (Dissolution and Disintegration Test Apparatus)
- General laboratory instruments (Karl Fischer Moisture Titrators, Melting Point Apparatus)
Maintenance & Care ESICO 352 Dry Bath Incubator
To ensure optimal performance and longevity of your ESICO 352 Dry Bath Incubator:- Clean the aluminum block regularly with a mild laboratory detergent and lint-free cloth
- Ensure test tubes are dry before placing them in the heating block
- Allow the unit to cool completely before cleaning or storing
- Keep the air vents clear and free from dust or obstructions
- Check power connections periodically for any signs of wear or damage
- Store in a clean, dry environment when not in use
- Follow calibration procedures recommended by the manufacturer if precise temperature verification is required
Summary ESICO 352 Dry Bath Incubator
The ESICO 352 Dry Bath Incubator represents an excellent choice for laboratories requiring precise, reliable temperature control for multiple test tube samples. With its advanced PID controller, high-quality construction, and user-friendly interface, this instrument provides consistent performance for a wide range of applications in clinical, pharmaceutical, chemical, and research settings. Backed by ISO 9001:2015 certification and a one-year warranty, the ESICO 352 offers both quality assurance and value for professional laboratory operations.Product overview
