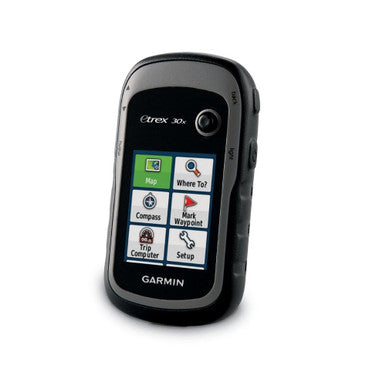

Garmin eTrex 30x Handheld GPS – Advanced Dual-Satellite Navigation System
The Garmin eTrex 30x Handheld GPS is a premium, highly versatile outdoor navigation instrument engineered to deliver exceptional positioning accuracy in challenging environments. Built upon the legendary durability of the eTrex series, this upgraded unit integrates sophisticated tracking technologies and multi-mount adaptability, making it an indispensable resource for field research, geocaching, telemetry workflows, and rugged backcountry expeditions.
Featuring a brilliant, 2.2-inch 65K color display with an upgraded 240 x 320 pixel resolution, the eTrex 30x guarantees crisp, sunlight-readable clarity. Its robust casing sports an IPX7 water-resistance rating, providing definitive protection against dust, humidity, mud, and water immersion. At a lightweight 141.7 grams with batteries installed, it packs advanced internal memory scaling up to 3.7 GB alongside an external microSD slot for custom mapping data integration.
At the core of its precision performance is a dual-satellite receiver framework capable of tracking both GPS and GLONASS constellations simultaneously. Coupled with a 3-axis tilt-compensated electronic compass and a high-resolution barometric altimeter, the eTrex 30x maintains an unwavering signal lock under dense forest canopies and steep geographic gorges, while providing reliable atmospheric trend analysis.
Technical Specifications
| Feature | Details |
|---|---|
| Brand / Model Name | Garmin eTrex 30x |
| Dimensions (W x H x D) | 5.4 x 10.3 x 3.3 cm (2.1" x 4.0" x 1.3") |
| Weight | 141.7 g (5 oz) with batteries installed |
| Water Rating | IPX7 (Waterproof/Dustproof Protection) |
| Display Size & Type | 2.2-inch diagonal; Transflective, 65K color TFT, sunlight-readable |
| Display Resolution | 240 x 320 pixels |
| Battery Type | 2 AA batteries (NiMH or Lithium recommended) |
| Battery Life | 25 hours standard (Up to 50+ hours using Lithium batteries) |
| Satellite Tracking | Simultaneous GPS and GLONASS with HotFix prediction |
| Sensors | 3-Axis Tilt-Compensated Electronic Compass, Barometric Altimeter |
| Internal Memory | Expanded 3.7 GB with Worldwide basemap (shaded relief) |
| External Storage | MicroSD™ card slot (Supports up to 32 GB max) |
| Data Capacity | 2000 Waypoints, 200 Routes, 10,000 Track Log points (200 saved tracks) |
| Connectivity | Wireless ANT+ enabled (Chirp, VIRB camera links, heart rate sensors) |
| Built-in Utilities | Paperless Geocaching, Hunt/Fish Calendar, Sun/Moon Data, Area Calculation |
Core Features & Target Benefits
The Garmin eTrex 30x combines consumer-friendly ergonomics with professional-grade sensors to solve critical navigation, data logging, and equipment durability challenges in the field.
- Simultaneous GPS & GLONASS Tracking Locks onto 24 more satellites and finds positions 20% faster than standard GPS alone, preventing signal loss in deep canyons or under dense tree canopies.
- 3-Axis Electronic Compass & Altimeter Yields highly precise headings even while standing completely still without holding the unit level, while the barometric sensor tracks micro-changes in pressure to alert you to changing weather.
- Sunlight-Readable High-Res Display Offers an upgraded 240 x 320 resolution on a 2.2-inch, 65K color transflective screen, eliminating harsh glare and reducing eye strain during mid-day field observations.
- IPX7 Ruggedized Chassis Protection Engineered to shrug off dust, dirt, moisture, and water submersion, eliminating equipment breakdown and safeguarding critical track data in extreme climates.
- Massive Map Storage Expansion Features an expanded 3.7 GB internal memory and a 32 GB microSD card slot, giving users the freedom to load City Navigator NT road maps or topo charts via free BaseCamp software.
- ANT+ Wireless Ecosystem Ecosystem Syncs smoothly with VIRB action cameras, heart rate monitors, and Chirp beacons to share waypoints, telemetry, and spatial coordinates cord-free.
Frequently Asked Questions (FAQ)
How does the dual-satellite system on the Garmin eTrex 30x improve accuracy?
The Garmin eTrex 30x tracks both GPS and GLONASS satellites simultaneously. This allows the receiver to lock onto 24 more satellites than standard tracking configurations, resulting in positional fixes that are roughly 20 percent faster on average—even under heavy cover or inside deep canyons.
Is the Garmin eTrex 30x display easy to read in direct sunlight?
Yes, the Garmin eTrex 30x features a highly advanced 2.2-inch, 65K color transflective display. This display is explicitly engineered to be sunlight-readable, and its upgraded 240 x 320 resolution ensures all mapping text and graphical lines stay crisp under bright outdoor conditions.
What type of battery life can I expect from the eTrex 30x during field use?
The eTrex 30x is optimized for extended fieldwork, delivering up to 25 hours of continuous runtime using two standard AA batteries. For extreme mapping missions, switching to high-capacity Lithium batteries will extend the operating device lifecycle up to 50+ hours under typical usage.
Can I expand the map memory capacity on the eTrex 30x?
Yes, the unit comes with an expanded 3.7 GB internal memory preloaded with a worldwide basemap. Users can easily expand storage capacities by utilizing the built-in microSD card slot (supporting up to 32 GB max) to install custom topographic or City Navigator NT maps.
What wireless sensors can connect to the Garmin eTrex 30x?
The integrated ANT+ wireless connectivity allows the eTrex 30x to seamlessly interface with a variety of outdoor navigation devices. It can wirelessly control Garmin VIRB action cameras, receive telemetry from heart rate monitors, and safely read/write tracking data directly to wireless Chirp beacons.
