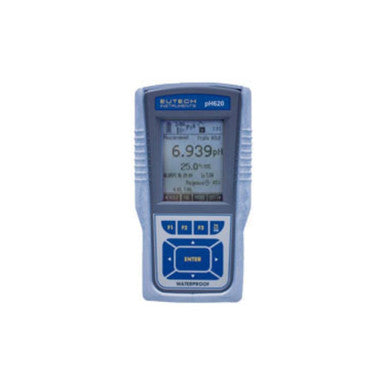

Eutech CyberScan pH 620 Waterproof pH/mV/Ion Meter Kit – Advanced Multi-Parameter Laboratory Analyzer
The Eutech CyberScan pH 620 Waterproof Meter Kit (ECPHWP62042K) is a high-performance multi-parameter analytical instrument engineered for precise measurement of pH, mV, ORP, and ion concentration across laboratory, industrial, environmental, and field-testing applications. Designed with advanced measurement technology and IP67 waterproof protection, this professional-grade meter delivers exceptional analytical reliability in demanding operating environments.
Built for scientists, laboratory technicians, water analysis professionals, pharmaceutical researchers, and industrial quality control teams, the CyberScan pH 620 combines high-resolution pH analysis with advanced calibration functions and comprehensive GLP-compliant data logging. The instrument supports up to 6-point calibration using multiple international buffer standards including USA, NIST, DIN, and PWB, ensuring maximum measurement accuracy and repeatability.
The meter features a large backlit LCD display with simultaneous parameter readouts, stability indicators, slope and offset diagnostics, and intuitive navigation for efficient laboratory operation. With 500-point Mega-Memory data storage, automatic temperature compensation, and PC-compatible data acquisition software, the CyberScan pH 620 simplifies long-term analytical documentation and quality assurance workflows.
The included double-junction pH electrode, ATC probe, calibration buffers, storage solution, and carrying kit provide a complete ready-to-use analytical solution for environmental monitoring, wastewater testing, food processing, agriculture, chemical manufacturing, pharmaceutical applications, and research laboratories requiring highly accurate electrochemical measurement performance.
Technical Specifications
| Parameter / Feature | Details |
|---|---|
| Product Model | Eutech CyberScan pH 620 (ECPHWP62042K) |
| Measurement Parameters | pH, mV, ORP, Ion Concentration, Temperature |
| pH Measurement Range | –2.000 to 19.999 pH |
| pH Resolution | 0.1 / 0.01 / 0.001 pH |
| pH Accuracy | ±0.002 pH |
| mV / ORP Range | ±2000 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ±0.2 mV |
| Ion Measurement Range | 0.001 to 19900 |
| Ion Measurement Units | ppm, mg/L, molar |
| Ion Accuracy | 0.5% FS (Monovalent), 1% FS (Divalent) |
| Temperature Range | –10 to 110°C (14 to 230°F) |
| Temperature Resolution | 0.1°C / 0.1°F |
| Temperature Accuracy | ±0.5°C / ±1.0°F |
| Temperature Compensation | Automatic Temperature Compensation (ATC) / Manual Compensation |
| Calibration Capability | Up to 6 Calibration Points |
| Supported Buffer Sets | USA, NIST, DIN, PWB, Custom Buffers |
| Calibration Reminder | Cal-Due Alarm (Up to 30 Days) |
| Data Memory | 500 Data Sets with Time & Date Stamp |
| GLP Compliance | Yes |
| Display Type | Large Backlit LCD with Simultaneous Readouts |
| Display Functions | Hold Function, Stability Indicator, Slope/Offset Display |
| Ingress Protection | IP67 Waterproof and Dustproof Housing |
| Data Transfer | DAS Software with PC Connectivity |
| Power Supply | 9 V DC Adapter / Battery Operation |
| Included Electrode | Double-Junction pH Electrode (ECFC7252203B) |
| Included Temperature Probe | ATC Probe |
| Included Accessories | Buffer Solutions, Storage Solution, Rinse Water, Carrying Case, DAS Software |
| Application Areas | Environmental Testing, Water Analysis, Pharmaceutical Labs, Food Industry, Agriculture, Research Laboratories |
Core Features & User Benefits
The Eutech CyberScan pH 620 is engineered to provide advanced electrochemical analysis, reliable field durability, and professional-grade data management for demanding scientific applications.
- Advanced Multi-Parameter Analysis Simultaneously measure pH, ORP, mV, ion concentration, and temperature using a single integrated analytical platform for enhanced laboratory efficiency.
- High-Resolution pH Measurement Achieve superior analytical accuracy with selectable pH resolution down to 0.001 pH, making the instrument suitable for research-grade laboratory applications.
- IP67 Waterproof Protection Rugged waterproof housing safeguards the instrument from water exposure, dust, and harsh environmental conditions during field and industrial use.
- Comprehensive 6-Point Calibration Multi-point calibration with USA, NIST, DIN, PWB, and custom buffers improves measurement reliability across a wide range of sample conditions.
- Mega-Memory Data Logging Store up to 500 GLP-compliant data sets with date and time stamps for traceable laboratory documentation and regulatory compliance.
- Automatic Temperature Compensation Integrated ATC functionality automatically corrects measurement variations caused by temperature fluctuations, improving overall analytical consistency.
- Professional Backlit LCD Display Large simultaneous parameter display with stability indicators and slope diagnostics enables rapid interpretation of analytical results.
- Complete Ready-to-Use Kit Supplied with pH electrode, ATC probe, calibration buffers, software, and carrying accessories for immediate laboratory and field deployment.
- Reliable Ion Measurement Capability Supports accurate ion concentration analysis in ppm, mg/L, and molar units for environmental, agricultural, and industrial testing applications.
- Enhanced Calibration Monitoring Built-in Cal-Due Alarm helps maintain measurement integrity by reminding users of scheduled recalibration intervals.
Frequently Asked Questions (FAQ)
What parameters can the Eutech CyberScan pH 620 measure?
The Eutech CyberScan pH 620 measures pH, ORP, mV, ion concentration, and temperature, making it a versatile multi-parameter analytical instrument for laboratory and field applications.
This broad functionality allows users to perform environmental monitoring, water quality analysis, chemical testing, and industrial process measurements using a single compact device.
Is the Eutech CyberScan pH 620 suitable for field applications?
Yes, the CyberScan pH 620 features an IP67-rated waterproof and dustproof housing designed for demanding environmental and industrial field conditions.
Its rugged construction, battery operation, and portable carrying kit make it highly suitable for on-site water testing, environmental sampling, agricultural analysis, and industrial monitoring applications.
How accurate is the Eutech CyberScan pH 620 pH meter?
The instrument delivers highly accurate measurements with pH accuracy up to ±0.002 pH and selectable resolution down to 0.001 pH for research-grade analytical performance.
The advanced calibration system, automatic temperature compensation, and stable electrode design help ensure repeatable and reliable measurement results across diverse sample types.
What calibration options are available on the CyberScan pH 620?
The CyberScan pH 620 supports up to 6-point calibration using USA, NIST, DIN, PWB, and custom buffer standards to maximize analytical accuracy.
The integrated Cal-Due Alarm further helps laboratories maintain consistent calibration schedules and measurement reliability during long-term operation.
Does the Eutech CyberScan pH 620 support data logging?
Yes, the meter includes Mega-Memory storage capable of saving up to 500 GLP-compliant data sets with date and time stamps.
The included DAS software enables efficient PC-based data transfer, supporting documentation, reporting, quality control, and laboratory compliance requirements.
What accessories are included with the ECPHWP62042K kit?
The ECPHWP62042K kit includes a double-junction pH electrode, ATC temperature probe, DAS software, power adapter, carrying case, calibration buffer solutions, storage solution, and rinse water.
This complete accessory package allows immediate deployment for laboratory analysis, environmental testing, and industrial pH monitoring applications.
