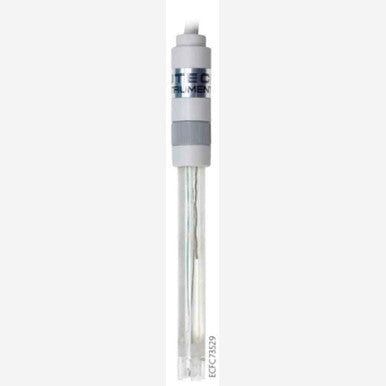

Eutech ECFC7352901B 3-in-1 pH Temp Electrode
The ECFC7352901B is a plastic body "3-in-1" pH/Temp (30Kohm) combination electrode with an Ag/AgCl reference. It is a sealed type electrode. This electrode is specifically noted as being for use with certain Eutech meter models including pH 5/6, Ion 6, pH 11/110, pH 510, Ion 510, and pH 2100/1100. Eutech's plastic body combination electrodes are suitable for a wide range of general purpose laboratory and field applications. The plastic housing is made of speciality engineering plastic that offers high impact resistance and can withstand rugged use up to 3 bar pressure and temperatures up to 80°C. The glass pH bulb is recessed for protection, enhancing durability. This model is a single junction, sealed (gel-filled) type.| Specification | Detail Eutech ECFC7352901B 3-in-1 pH Temp Electrode | |
|---|---|---|
| Model | ECFC7352901B | |
| Description | Plastic Body “3-in1” pH/Temp (30Kohm) Combination with Ag/AgCl Reference, Sealed / Plastic body 3-in-1 pH/Temp combination electrode | |
| Measuring pH Range | 0 to 13 pH | |
| Temperature Range | 0 to 80 °C | |
| Shaft Material | Plastic | |
| Liquid Junction Type | Porous HDPE Pin | |
| Reference Junction | Single Junction | |
| Reference Type | Ag/AgCl, Sealed | |
| Connector Type | BNC & 2.5mm Phono | |
| Shape of Membrane | Cylindrical | |
| Shaft Length | 110 mm | |
| Diameter | 12 mm |
