ECPC70043S Parameters PH
Product Features ECPC70043S Parameters PH

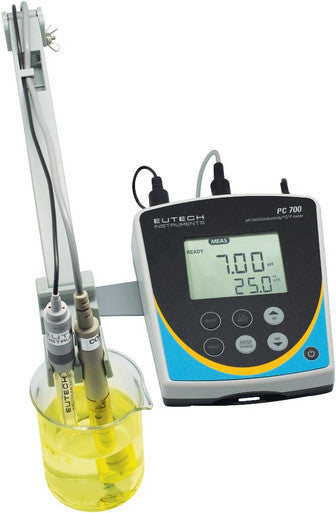

The multi-parameter Eutech PC 700 measures pH, ORP, conductivity and temperature with a single meter. User-friendly with advanced features and a large custom-size display – perfect for research work on a budget! ECPC70043S Parameters PH- Large Display - Large screen in a compact footprint
- Multi-Parameter - Meter accepts pH and Redox electrodes, in addition to Conductivity/TDS – it’s like having four meters in one!
- Advanced Calibration - Up to 5-point push button calibration
- Flexible Cell Constant - Selectable cell constant
- Auto-Ranging - Auto-ranging across 5 Conductivity ranges
- Interchangeable Probes - Easy interchangeability of probes
- Data Storage - Non-volatile memory holds up to 100 data points
- Built-in Holder - Integral electrode holder ECPC70043S Parameters PH
Applications
- Water quality testing
- Checking metal finishes
- Solutions
- Cooling tower water
- Quality assurance
- Printing fountain solutions
- Boiler water
- Brines
- Drilling mud
- Ecological studies
- Rinse tanks
- Ponds
- Pollution control
- Recirculating systems
- Food-processing
- Waste water
- Industrial process systems
- General use in laboratories
- Titration
Specifications ECPC70043S Parameters PH
| Product Specification | Description |
|---|---|
| pH | |
| Range | -2.00 to 16.00 pH |
| Resolution | 0.01 pH |
| Accuracy | ±0.01 pH |
| Cal. Points | Up to 5 |
| Buffer Sets | USA (1.68, 4.01, 7.00, 10.01, 12.45), NIST (1.68, 4.01, 6.86, 9.18, 12.45) |
| ORP | |
| Range | ±2000 mV |
| Rel. mV Range | ±2000 mV |
| Resolution | 0.1 mV (±199.9 mV) / 1 mV (beyond) |
| Accuracy | ±0.2 mV (±199.9 mV) / ±2 mV (beyond) |
| Conductivity | |
| Range | 0.0 µS to 200.0 mS |
| Resolution | 0.01 / 0.1 / 1 µS ; 0.01 / 0.1 mS |
| Accuracy | ±1 % full scale |
| Cal. Points | Automatic (84 µS, 1413 µS, 12.88 mS, 111.8 mS); maximum 1 per range; manual (5 points); maximum 1 per range |
| Cell Constant | 0.1, 1.0, 10.0 (selectable) |
| TDS | |
| Range | .. to 100.0 ppt @ 0.5 fact (200.0 ppt @ 1 factor) |
| Resolution | 0.01 / 0.1 / 1 ppm ; 0.01 / 0.1 ppt |
| Accuracy | ±1 % full scale |
| Cal. Points | Manual (5 points); maximum 1 per range |
| TDS Factor | 0.40 to 1.00 (adjustable) |
| Temperature | |
| Range (Meter) | 0.0 to 100.0 ºC / 32.0 to 212.0 ºF |
| Resolution | 0.1 ºC / 0.1 ºF |
| Accuracy | ±0.5 ºC / ±0.9 ºF |
| Coefficient (Per ºC) | 0.00 to 10.00 % |
| Normalization | 15.0 to 30.0 ºC (adjustable) |
| Compensation | |
| Type & Range | Automatic with supplied cell or manual 0.0 to 100 ºC / 32.0 to 212.0 ºF, 0 to 80 ºC / 32.0 to 176.0 ºF with supplied cell |
| Power | |
| Power Requirements | 9 V DC adapter, 1.3 A (100/240 VAC, SMPS) |
