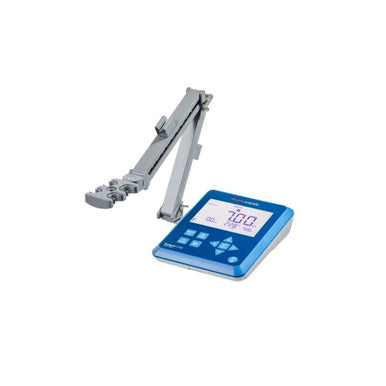

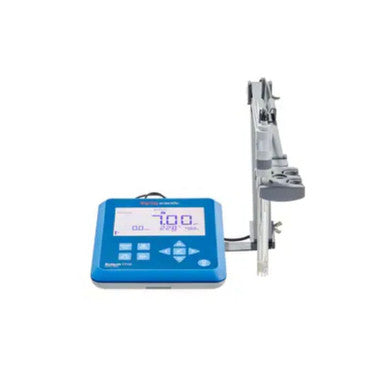

Eutech PH 1710 pH Bench Meter Kit – Advanced Laboratory pH & mV Measurement System
The Eutech PH 1710 pH Bench Meter Kit (EBPH171003) from Thermo Scientific is a high-precision laboratory pH measurement solution engineered for accurate pH and relative mV analysis in research laboratories, industrial testing facilities, water quality laboratories, educational institutions, and quality control environments. Designed for dependable daily operation, this advanced bench meter combines intuitive functionality, GLP-compliant data management, and reliable measurement performance in a compact laboratory footprint.
Supplied as a complete low-maintenance kit, the Eutech PH 1710 includes the ECFC7252201B gel-filled double junction pH electrode, automatic temperature compensation probe, electrode stand, calibration solutions, and PC connectivity accessories for immediate laboratory deployment. The integrated double junction electrode design enhances chemical compatibility with samples containing proteins, sulfides, TRIS buffers, and halides, making it suitable for challenging analytical applications.
The meter features a large 5-inch backlit LCD display with simultaneous measurement visibility, stability indicators, and electrode status monitoring to improve workflow efficiency and measurement confidence. Its advanced calibration system supports up to 5-point pH calibration using USA and NIST buffer standards with automatic or manual buffer recognition for optimized analytical flexibility.
Built for long-term laboratory performance, the Eutech PH 1710 offers non-volatile memory storage for up to 500 data sets with time and date stamping to support GLP/GMP documentation requirements. The IP54-rated enclosure provides enhanced resistance against dust and splash exposure, while the low-maintenance gel-filled electrode eliminates frequent refilling requirements for simplified routine operation.
The Eutech PH 1710 pH Bench Meter Kit is widely used for environmental testing, pharmaceutical analysis, food and beverage quality control, chemical processing, water treatment monitoring, academic research, and routine laboratory pH measurement applications requiring reliable and reproducible analytical performance.

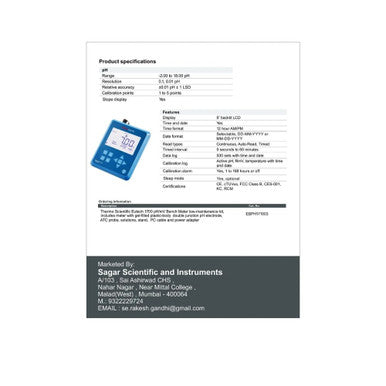

Technical Specifications
| Parameter / Feature | Details |
|---|---|
| Product Type | Laboratory pH Bench Meter Kit |
| Model | Eutech PH 1710 (EBPH171003) |
| Measurement Parameters | pH, Relative mV (RmV), Temperature |
| pH Measurement Range | -2.00 to 18.00 pH |
| pH Resolution | 0.1 / 0.01 pH |
| pH Accuracy | ±0.01 pH ±1 LSD |
| mV Measurement Range | ±2000.0 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ±0.2 mV or ±0.05% (whichever is greater) |
| Temperature Range | -5.0°C to 105.0°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ±0.3°C |
| Calibration Points | 1 to 5 Point pH Calibration |
| Supported Buffer Standards | USA & NIST Buffers with Automatic or Manual Recognition |
| Relative mV Calibration | 1 Point Calibration |
| Temperature Compensation | Automatic & Manual Temperature Compensation |
| Display Type | 5-inch Backlit LCD Display |
| Data Storage Capacity | 500 Data Sets with Time & Date Stamp |
| Memory Type | Non-Volatile Memory |
| Ingress Protection | IP54 Splash & Dust Resistant |
| Power Supply | Universal 100–240V AC Adapter |
| Meter Dimensions (L × W × H) | 198.3 × 155.2 × 61.7 mm |
| Meter Weight | 700 g |
| Electrode Type | Gel-Filled Plastic Body Double Junction pH Electrode |
| Electrode pH Range | 0 to 13 pH |
| Electrode Temperature Range | 0 to 80°C |
| Reference System | Ag/AgCl Internal Reference |
| Liquid Junction Type | Porous HDPE Pin Junction |
| Electrode Fill Type | Maintenance-Free Gel Filled |
| Electrode Shaft Dimensions | 90 × 12 mm |
| Cable Length | 1 Meter |
| Connector Type | BNC Connector |
| Certifications | CE, TUV 3-1, FCC Class A, cTUVus, CES-001, KC, RCM |
| Included Accessories | pH Meter, Double Junction Electrode, ATC Probe, Electrode Stand, PC Cable, Calibration & Storage Solutions, Power Adapter |
| Application Areas | Water Testing, Environmental Analysis, Chemical Labs, Pharmaceutical Labs, Food Processing, Academic Research |
Core Features & User Benefits
The Eutech PH 1710 pH Bench Meter Kit is designed for laboratories requiring accurate pH analysis, dependable data management, and simplified low-maintenance operation.
- High Accuracy Laboratory Measurement The advanced pH measurement system delivers reliable analytical performance with excellent pH accuracy of ±0.01 pH for precise laboratory testing and quality control applications.
- Low-Maintenance Double Junction Electrode The gel-filled double junction electrode eliminates routine refilling requirements while improving compatibility with challenging chemical samples containing proteins, sulfides, TRIS buffers, and halides.

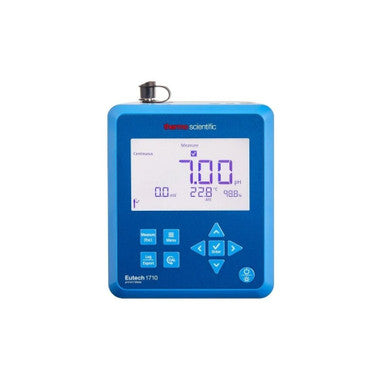

- Large Backlit LCD Display The 5-inch illuminated display provides clear visibility of measurement values, calibration status, stability indicators, and electrode condition for improved workflow efficiency.
- Comprehensive GLP-Compliant Data Logging Built-in non-volatile memory stores up to 500 measurement records with time and date stamps, supporting regulatory documentation and long-term laboratory record management.
- Flexible Multi-Point Calibration Supports 1 to 5-point pH calibration with USA and NIST buffer standards for improved analytical flexibility and enhanced measurement reliability.
- Automatic Temperature Compensation Integrated ATC functionality automatically corrects pH measurements according to sample temperature, improving consistency and analytical accuracy across varying conditions.
- Compact Laboratory Footprint The space-efficient bench design minimizes occupied workspace while maintaining full laboratory functionality for routine analytical operations.
- Reliable Splash-Resistant Construction The IP54-rated enclosure protects the instrument against dust and accidental liquid exposure, improving operational durability in demanding laboratory environments.
- Seamless Data Transfer Capability PC connectivity and data export functions simplify digital documentation, reporting, and long-term analytical data storage for laboratory compliance requirements.
- Complete Ready-to-Use Laboratory Kit Supplied with electrode, ATC probe, calibration solutions, power adapter, and accessories, enabling immediate setup and operation without additional procurement requirements.
Frequently Asked Questions (FAQ)
What parameters can the Eutech PH 1710 Bench Meter measure?
The Eutech PH 1710 Bench Meter is designed to measure pH, relative mV (RmV), and temperature with high analytical accuracy for laboratory, industrial, and research applications.
Its multi-parameter capability makes it suitable for environmental analysis, pharmaceutical testing, chemical processing, water quality monitoring, food testing, and routine laboratory measurements requiring dependable pH analysis.
What makes the included double junction pH electrode beneficial?
The included ECFC7252201B double junction pH electrode is specifically designed for improved chemical compatibility and low-maintenance operation in demanding laboratory environments.
Its gel-filled maintenance-free construction and double junction reference system make it ideal for samples containing proteins, sulfides, TRIS buffers, and halides while minimizing contamination risks and maintenance requirements.
Does the Eutech PH 1710 support data logging and GLP compliance?
Yes, the Eutech PH 1710 features non-volatile memory capable of storing up to 500 data sets with integrated time and date stamps to support GLP/GMP documentation requirements.
The instrument also supports PC connectivity and data export functionality, allowing laboratories to maintain organized digital records for reporting, auditing, and long-term analysis.
How does automatic temperature compensation improve pH accuracy?
The integrated Automatic Temperature Compensation (ATC) system automatically adjusts pH readings according to sample temperature variations, helping maintain accurate analytical performance.
This improves measurement consistency and reduces temperature-related deviations during laboratory testing, environmental monitoring, and industrial quality control procedures.
What applications is the Eutech PH 1710 pH Bench Meter suitable for?
The Eutech PH 1710 is widely used in water quality laboratories, pharmaceutical facilities, environmental monitoring laboratories, chemical industries, educational institutions, and food processing applications.
Its combination of high measurement accuracy, low-maintenance electrode technology, and reliable data management capabilities makes it suitable for both routine laboratory analysis and advanced research applications.
Is the Eutech PH 1710 suitable for continuous laboratory use?
Yes, the Eutech PH 1710 is engineered for continuous laboratory operation with a durable IP54-rated enclosure, universal power supply compatibility, and reliable electronic performance.
The low-maintenance gel-filled electrode and robust bench meter design help laboratories achieve consistent long-term operation with reduced maintenance downtime.
