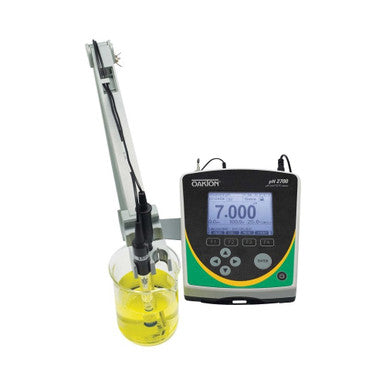

Eutech pH 2700 Research-Grade Bench Meter Kit with Printer (ECPH27005E-P)
The Eutech pH 2700 Research-Grade Bench Meter Kit with Printer is a premium laboratory analytical system engineered for highly precise pH, ORP (mV), and temperature measurements in advanced research laboratories, pharmaceutical facilities, biotechnology applications, environmental monitoring, chemical processing, and quality control laboratories.
Designed for demanding analytical environments, the Eutech pH 2700 delivers exceptional measurement performance with an ultra-fine selectable resolution down to 0.001 pH across a wide measurement range of -2.000 to 20.000 pH. The advanced microprocessor-controlled system ensures excellent linearity, accuracy, and repeatability, even when analyzing strong acids, strong bases, viscous samples, protein-rich media, wastewater, and non-aqueous solutions.
The included EC620131 open-pore glass-body pH electrode features a clog-resistant junction for stable response in difficult sample matrices, making it ideal for cosmetics, oils, paints, food products, pharmaceutical buffers, wastewater, and low ionic strength water analysis. Automatic and manual temperature compensation further enhance measurement reliability across varying sample temperatures.
For advanced calibration performance, the instrument supports up to 6-point calibration with automatic recognition of USA, NIST, DIN, user-defined, and custom buffer sets. The oversized backlit LCD simultaneously displays pH or ORP values, temperature, calibration status, electrode diagnostics, date, and time for enhanced workflow efficiency.
The meter includes comprehensive GLP-compliant data management with 500-point memory storage, date and time stamping, RS232 communication, and the included AN-270 dot matrix printer for immediate hardcopy data output and documentation compliance. Its splashproof IP54-rated housing, compact bench footprint, password protection, and integral electrode holder make it a reliable solution for modern laboratory operations.
Technical Specifications
| Parameter / Feature | Details |
|---|---|
| Product Model | EUTECH pH 2700 Meter Kit (ECPH27005E-P) |
| Measured Parameters | pH, ORP (mV), Temperature |
| pH Measurement Range | -2.000 to 20.000 pH |
| pH Resolution | 0.1 / 0.01 / 0.001 pH (Selectable) |
| pH Accuracy | ±0.002 pH + 1 LSD |
| ORP Range | ±2000.0 mV |
| Relative mV Range | ±2000.0 mV |
| ORP Resolution | 0.1 mV |
| ORP Accuracy | ±0.2 mV |
| Temperature Range | 0.0 to 100.0°C (32.0 to 212.0°F) |
| Temperature Resolution | 0.1°C / 0.1°F |
| Temperature Accuracy | ±0.3°C / ±0.5°F (0 to 70°C) |
| Temperature Compensation | Automatic Temperature Compensation (ATC) / Manual Temperature Compensation (MTC) |
| Calibration Capability | Up to 6 Calibration Points |
| Supported Buffer Sets | USA, NIST, DIN, User 1, User 2, Custom |
| Included Electrode | EC620131 Glass Body Open-Pore pH Electrode (BNC) |
| Included Temperature Probe | PH5TEMB01P |
| Data Output | Bi-directional RS232 Port |
| Data Memory | 500 Data Points with GLP Compliance |
| Printer Included | AN-270 Dot Matrix Printer |
| Power Requirements | 9V DC Adapter, 1.3A (100/240 VAC SMPS) |
| Meter Dimensions | 17.5 (L) x 15.5 (W) x 6.9 (H) cm |
| Meter Weight | 650 g |
| Ingress Protection | IP54 Splashproof Housing & Keypad |
| Warranty | 3 Years for Meter |
Core Features & User Benefits
The Eutech pH 2700 Research-Grade Bench Meter Kit is engineered to deliver superior analytical accuracy, advanced diagnostics, and reliable GLP-compliant laboratory data management.
- Research-Grade Precision Measurement Delivers ultra-high measurement resolution down to 0.001 pH for highly accurate analysis of complex laboratory samples, strong acids, bases, and non-aqueous solutions.
- Advanced 6-Point Calibration Supports up to six calibration points with automatic buffer recognition to improve linearity, calibration accuracy, and long-term analytical reliability.
- Open-Pore Glass Body Electrode The included clog-resistant open-pore electrode provides stable response in viscous, protein-rich, oily, and low ionic strength samples.
- Integrated Printer Support Includes the AN-270 dot matrix printer for immediate hardcopy data output, helping laboratories maintain complete GLP-compliant records.
- GLP-Compliant Data Management Stores up to 500 time-and-date-stamped data records for secure traceability, reporting, and laboratory documentation compliance.
- Comprehensive Electrode Diagnostics Advanced slope and offset diagnostics simplify electrode monitoring and help maintain accurate analytical performance.
- Large Backlit LCD Display Oversized display simultaneously shows pH/ORP readings, temperature, calibration status, electrode condition, date, and time for improved workflow efficiency.
- Robust Splashproof Construction IP54-rated housing and keypad protection enhance durability and operational reliability in demanding laboratory environments.
Frequently Asked Questions (FAQ)
What parameters can the Eutech pH 2700 measure?
The Eutech pH 2700 Research-Grade Bench Meter is designed to measure pH, ORP (mV), and temperature with exceptional precision for advanced laboratory applications.
Its wide analytical range and selectable high-resolution settings make it ideal for research laboratories, pharmaceutical analysis, environmental monitoring, and industrial quality control.
What makes the included open-pore electrode beneficial?
The EC620131 open-pore glass-body electrode features a clog-resistant junction that provides fast and stable measurements in difficult sample matrices such as wastewater, protein solutions, oils, paints, cosmetics, and viscous liquids.
This specialized design improves electrode reliability and analytical stability in challenging laboratory applications.
Does the Eutech pH 2700 support GLP-compliant data management?
Yes, the meter includes 500-point non-volatile memory with date and time stamping for GLP-compliant record keeping and analytical traceability.
The integrated RS232 communication port and included printer further enhance documentation, reporting, and laboratory data management capabilities.
Can the meter print measurement results directly?
Yes, this kit includes the AN-270 dot matrix printer for direct hardcopy printouts of analytical measurement data.
This allows laboratories to maintain immediate physical records for audits, reporting, regulatory compliance, and long-term documentation requirements.
What applications is the Eutech pH 2700 suitable for?
The Eutech pH 2700 is widely used in research laboratories, pharmaceutical analysis, environmental testing, wastewater monitoring, biotechnology, food processing, chemical formulation, and quality control applications.
Its advanced calibration system, research-grade accuracy, and rugged laboratory design make it suitable for both routine and highly specialized analytical workflows.
