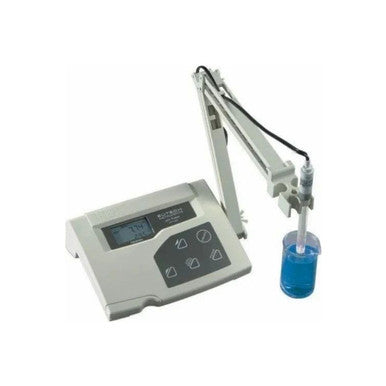

Eutech PH Tutor - DS Bench pH Meter – Reliable Microprocessor-Based Laboratory pH Analysis System
The Eutech PH Tutor - DS Bench pH Meter, also known as the CyberScan pH Tutor Meter – ECPHTUTOR-D, is a highly reliable and economical microprocessor-based benchtop pH meter designed for accurate pH and temperature measurements across laboratory, educational, research, and industrial quality control environments. Engineered for routine analytical applications, this user-friendly instrument combines precision electrochemical measurement with intuitive operation for dependable day-to-day laboratory performance.
Powered by advanced microprocessor technology, the Eutech PH Tutor - DS delivers stable and highly accurate pH readings with an impressive accuracy of ±0.01 pH. The instrument supports automatic buffer recognition and intuitive push-button calibration with up to three calibration points, helping users achieve fast and error-free calibration using both USA and NIST buffer standards.
The meter features automatic temperature compensation (ATC) from 0 to 100°C, ensuring accurate pH measurements under changing thermal conditions. Its integrated plastic-body 3-in-1 pH and temperature combination electrode with built-in ATC simplifies operation while improving overall measurement convenience and reliability.
For enhanced usability, the Eutech PH Tutor - DS incorporates a large custom dual LCD display that simultaneously shows pH and temperature values alongside diagnostic icons and operational prompts. The integrated swivel electrode stand further improves laboratory workflow efficiency by providing stable and secure electrode positioning during measurements.
Ideal for educational institutions, research laboratories, water analysis facilities, industrial production units, pharmaceutical applications, and quality control laboratories, the Eutech PH Tutor - DS Bench pH Meter offers an excellent balance of affordability, measurement precision, operational simplicity, and long-term reliability.

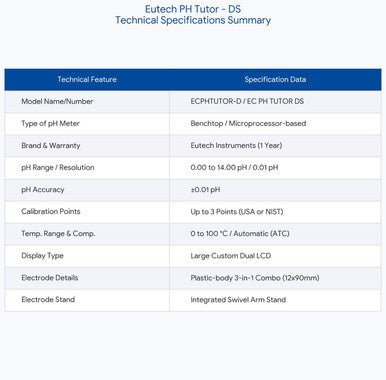

Technical Specifications
| Feature | Details |
|---|---|
| Model Name / Number | ECPHTUTOR-D / EC PH TUTOR DS |
| Product Type | Benchtop pH Meter |
| Brand | Eutech Instruments |
| pH Range | 0.00 to 14.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.01 pH |
| Calibration Points | Up to 3 Points |
| Buffer Standards | USA (4.01, 7.00, 10.01) / NIST (4.01, 6.86, 9.18) |
| Temperature Range | 0 to 100 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | ±0.3 °C |
| Temperature Compensation | Automatic (ATC) / Manual (MTC) |
| Display Type | Large Custom Dual LCD Display |
| Electrode Type | Plastic-body "3-in-1" pH/Temperature Combination Electrode with Built-in ATC |
| Electrode Dimensions | 12 × 90 mm |
| Connector Type | BNC Connector |
| Cable Length | 1 Meter |
| Electrode Stand | Integrated Swivel Arm Stand |
| Power Requirements | 230 VAC, 9V DC Adapter (50–60Hz) |
| Meter Dimensions | Approx. 18 × 23 × 6 cm |
| Meter Weight | Approx. 570g – 600g |
| Warranty | 1 Year (Meter), 6 Months (Electrode) |
| Applications | Laboratory, Research, Education, Quality Control, Industrial Testing |

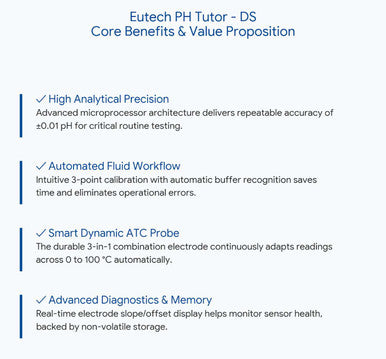

Core Features & User Benefits
The Eutech PH Tutor - DS Bench pH Meter is engineered to deliver reliable electrochemical analysis, simplified calibration, and efficient laboratory operation for routine pH testing applications.
- Advanced Microprocessor Technology Ensures stable and accurate pH analysis with dependable performance for routine laboratory and industrial testing applications.
- High Precision pH Measurement Provides ±0.01 pH accuracy for consistent and reliable electrochemical measurements in research, educational, and QC laboratories.
- Intuitive 3-Point Calibration Supports up to three calibration points with automatic buffer recognition for faster setup and improved calibration accuracy.
- Automatic Temperature Compensation Automatically adjusts pH readings from 0 to 100°C to maintain analytical accuracy during temperature fluctuations.
- Integrated 3-in-1 Combination Electrode Combines pH and temperature sensing with built-in ATC functionality, simplifying measurement workflows and reducing setup complexity.
- Large Dual LCD Display Simultaneously displays pH and temperature readings with easy-to-read icons and self-diagnostic indicators for improved usability.
- Electrode Diagnostic Monitoring Allows users to monitor electrode slope and offset characteristics for improved maintenance and long-term measurement reliability.
- Non-Volatile Memory Function Retains calibration settings even after power interruptions, ensuring operational continuity and reducing recalibration time.
- Integrated Swivel Electrode Stand Provides secure electrode positioning and improves operator convenience during continuous laboratory measurements.
Frequently Asked Questions (FAQ)
What is the Eutech PH Tutor - DS Bench pH Meter used for?
The Eutech PH Tutor - DS Bench pH Meter is designed for accurate pH and temperature measurements in laboratories, educational institutions, research facilities, and industrial quality control environments. It is ideal for routine electrochemical analysis requiring reliable and stable pH readings.
The meter is commonly used in water testing, chemical analysis, pharmaceutical laboratories, academic training, and industrial process monitoring applications.
How accurate is the Eutech PH Tutor - DS pH Meter?
The Eutech PH Tutor - DS provides highly dependable pH measurements with an accuracy of ±0.01 pH and a resolution of 0.01 pH, making it suitable for routine laboratory and quality control applications.
Its advanced microprocessor technology and automatic temperature compensation help ensure stable and repeatable analytical performance.
Does the Eutech PH Tutor - DS support automatic calibration?
The instrument supports automatic push-button calibration with up to three calibration points and automatic buffer recognition for both USA and NIST buffer standards.
This calibration system simplifies operation, reduces calibration errors, and improves overall measurement reliability during routine testing.
What type of electrode is supplied with the Eutech PH Tutor - DS?
The meter includes a plastic-body 3-in-1 pH and temperature combination electrode with built-in automatic temperature compensation and a BNC connector for convenient operation.
The integrated electrode design simplifies setup while improving measurement efficiency and laboratory usability.
Which industries commonly use the Eutech PH Tutor - DS Bench pH Meter?
The Eutech PH Tutor - DS is widely used in research laboratories, educational institutions, water analysis facilities, pharmaceutical laboratories, industrial production units, and quality control departments.
Its affordability, ease of operation, and dependable measurement accuracy make it suitable for both academic and industrial laboratory applications.
