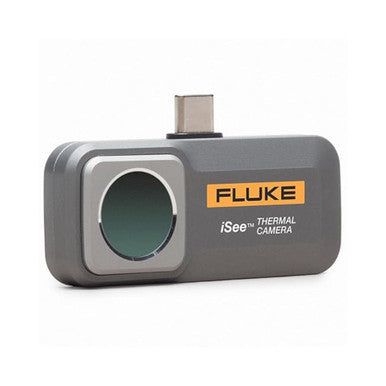

Fluke TC01A Mobile Thermal Camera: Professional Diagnostics in Your Pocket
The Fluke TC01A is a groundbreaking, compact thermal imaging solution that instantly transforms your Android or HarmonyOS smartphone into a high-resolution professional thermal camera. Designed for engineers, electricians, and HVAC technicians, this plug-and-play device allows you to visualize heat signatures and identify hidden issues with unprecedented ease and portability.
Superior Image Quality and Smooth Performance
Don't let its small size fool you; the TC01A delivers professional-grade image quality comparable to high-end standalone thermal imagers. With a 256 x 192 pixel infrared resolution, it captures detailed thermal data, allowing you to pinpoint hotspots and anomalies even in complex environments. The 25 Hz frame rate ensures smooth, real-time video recording without the lag often found in mobile attachments, making your inspections faster and more accurate.
Wide Temperature Range and High Sensitivity
The TC01A is engineered for versatility, offering a broad temperature measurement range from -10 °C up to 550 °C (14 °F to 1022 °F). Its exceptional thermal sensitivity of 50 mK (0.05 °C) allows you to detect even the finest temperature differences, while its ±2% or ±2 °C accuracy ensures you can trust the data for critical maintenance decisions.
Rugged Construction for Field Use
Built to Fluke’s legendary standards of durability, the TC01A features a high-quality aluminum body that is both lightweight and robust. It has been drop-tested up to 1 meter and carries an IP54 rating, providing essential protection against dust and water splashes in demanding work environments. Weighing only 22g, it is small enough to live in your pocket or toolbox, ready for a second's notice.
Advanced Analysis via the Fluke iSee™ App
The dedicated Fluke iSee™ mobile application unlocks the full potential of the hardware. It offers comprehensive analysis tools, including real-time high and low-temperature tracking, adjustable emissivity for different surface types, and over 10 customizable color palettes to optimize your visual data. You can also capture photos and videos directly to your phone for easy sharing and reporting.
Technical Specifications
|
Feature
|
Specification
|
|---|---|
|
Infrared Resolution
|
256 x 192 pixels
|
|
Temperature Range
|
-10 °C to 550 °C (14 °F to 1022 °F)
|
|
Accuracy
|
± 2% or ± 2 °C (whichever is greater)
|
|
Frame Rate
|
25 Hz
|
|
Thermal Sensitivity (NETD)
|
50 mK (0.05 °C)
|
|
Focal Length
|
3.2 mm (Fixed)
|
|
Interface Type
|
USB Type-C
|
|
Compatible OS
|
Android and HarmonyOS
|
|
Weight
|
22 g
|
|
Dimensions (L x W x H)
|
60 x 33.5 x 11.2 mm
|
|
Ingress Protection
|
IP54
|
|
Drop Test
|
1 meter
|
