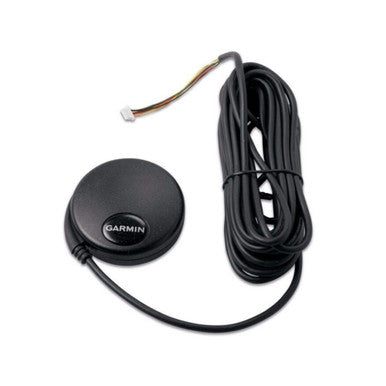

Garmin GPS 18x LVC
High-Precision Navigation for Professional Integration The Garmin GPS 18x LVC is a compact, high-sensitivity, 12-channel OEM receiver designed for applications requiring superior positioning and precision timing. This WAAS-enabled unit provides highly accurate location data even in challenging environments, making it a trusted choice for automotive, fleet, and industrial systems.
Precision Timing and Synchronization Engineered specifically for professionals who need more than just location, the LVC model features a highly accurate 1-pulse-per-second (1PPS) measurement output. This signal is aligned to the Universal Coordinated Time (UTC) second within a maximum error of 1.0 microsecond, allowing for elite-level timekeeping and network synchronization that far exceeds standard internet time servers.
Rugged and Reliable Design Built to endure, the GPS 18x LVC features a waterproof "hockey puck" form factor that has been proven to last over 15 years in harsh conditions. Its integrated magnetic base allows for secure mounting on vehicle roofs or metal surfaces, remaining stable even at high speeds. Whether facing heavy rain, extreme temperatures, or commercial car washes, this unit is designed for 24/7/365 operation.
Seamless OEM Integration The LVC variant is distinguished by its bare wire low-voltage connection, optimized for seamless integration into CMOS systems. It includes non-volatile memory to safeguard configuration settings, ensuring the device retains its data even after power cycles. With an initial satellite lock achieved in under three minutes and reacquisition in as little as five seconds, it ensures your system stays connected with minimal downtime.
Specifications
|
Feature
|
Detail
|
|---|---|
|
Brand
|
Garmin
|
|
Model
|
GPS 18x LVC
|
|
Receiver Type
|
12-channel, WAAS-enabled
|
|
Timing Accuracy
|
1 microsecond (aligned to UTC via 1PPS)
|
|
Connection Type
|
Bare Wire (Low Voltage CMOS)
|
|
Power Source
|
External 5V DC (approx. 60-75mA)
|
|
Acquisition Time
|
< 3 minutes (cold), ~5 seconds (reacquisition)
|
|
Memory
|
Non-volatile (Configuration and Almanac)
|
|
Physical Design
|
Waterproof puck with magnetic base
|
|
Weight
|
116 Grams (4.1 ounces)
|
|
Dimensions
|
10.2 x 5.1 x 10.2 cm (4 x 2 x 4 inches)
|
|
Output Data
|
NMEA 0183 and Raw Measurement Data
|
|
Compatibility
|
Windows (config software), Linux (via GPSD/NTP)
|
