- Direct Display in Hb. units
- 1 ml Sample Volume
- Highly Stable & Easy To Operate
- Storage of Factor in Memory
GST InvoiceBusiness-ready billing
Pan India DeliveryDispatched nationwide
Expert SupportBefore & after purchase
DocumentationDatasheets & manuals

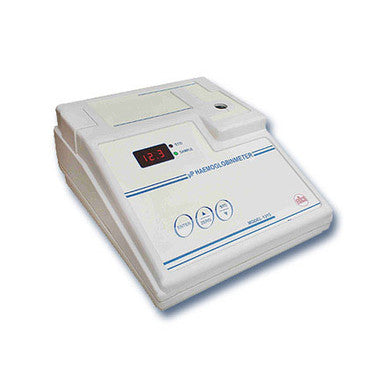

Haemoglobin meter Model 1315
Features
Microprocessor Haemoglobin Meter – 1315 is used to determine the haemoglobin concentration in the blood sample. The measurement haemoglobin concentration is carried out at wavelength of 546 nm. Using state-of-the-art LED technology the green light produced is projected through the sample and measured by sensitive photodiode. The measurements are made using cyanmethemoglobin method used through the world. Haemoglobin meter Model 1315
Heamoglobin is an iron-containing protein found in the red blood cells. It enables the red cells, to carry oxygen from lungs to the rest of the body and carry carbon dioxide back. The haemoglobin level indicates the blood’s oxygen-carrying capacity and can play a major role in the early diagnosis of many illnesses such as thelsemia, sickle cell anemia, leukemia, malaria and hook worm etc. Haemoglobin meter Model 1315
Specifications Haemoglobin meter Model 1315
| Measuring Method | Cyanmethemoglobin |
| Measuring Range | 0 – 30 gm/dl of Hb. |
| Dilution Ratio | 1:25 I |
| Sample Volume | 1 ml |
| Display | 3 Digit 7-Segment Red LED Display |
| Wavelength | 546 nm |
| Keyboard | 3 Keys, Soft Touch Memebrane Type |
| Zero Setting | Automatic |
| Calibration | Automatic |
| Detector | Highly sensitive silicon photodiode |
| Power | 230 V ± 10% AC, 50 Hz |
| Dimensions (L x B x H) | 195 x 235 x 105 mm (Approx.) |
| Weight | 2.5 Kg. (Approx.) |
| Accessories | Matched Test Tube: (A set of 5), Operation Manual and Dust Cover |
