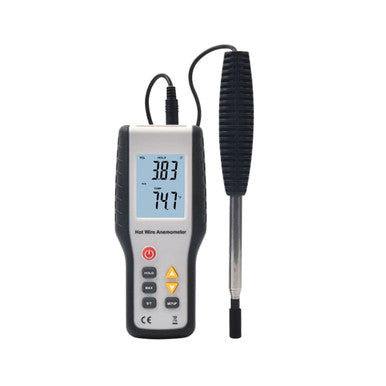

CFM/CMM Hotwire Anemometer HT-9829 Product Description (HT Brand)
The HT-9829 CFM/CMM Hotwire Anemometer is a highly accurate diagnostic instrument designed for precise measurement of air velocity, air flow volume, and temperature. Featuring a basic accuracy of 0.1%, this anemometer is optimized for professionals requiring reliable data in critical systems. Its robust design and large backlit LCD display ensure usability and clarity, even in challenging environments. The device utilizes a hotwire sensor, allowing for quick measurement response.
The HT-9829 is capable of displaying maximum wind speed and temperature, and allows users to select between Celsius (°C) and Fahrenheit (°F) temperature units. Measurements for air flow volume can be taken in both Cubic Feet per Minute (CFM) and Cubic Meters per Minute (CMM).
Advanced Features
This sophisticated instrument is equipped with several features to streamline complex tasks:
• High Precision: Offers highly accurate readings with 0.1% basic accuracy for precise measurements.
• Extendible Probe: The probe is extendible to 130mm, allowing access to hard-to-reach ducts and ventilation systems.
• Multi-Unit Velocity Measurement: Measures velocity in m/s, ft/min, knots, km/hr, and mph.
• Data Management: Includes a Data Hold function to freeze readings on the screen and Max function to record peak measurements.
• User Convenience: Features include a large backlit LCD display, low battery indication, and an auto power off function to preserve battery life.
Suitable Applications
The HT-9829 Hotwire Anemometer is suitable for use in a wide variety of professional and technical applications where accurate airflow data is essential:
• HVAC Systems: Ideal for HVAC installation, repair, diagnostics, and optimization.
• Ventilation Analysis: Used for ventilation system installation, servicing, and analysis, including fume hood testing.
• Industrial Use: Crucial for plant maintenance operations, plant and manufacturing settings, and boiler rooms.
• Environmental Studies: Suitable for environmental analysis and testing/analysis of wind and temperature.
• Automotive Testing: Can be used for automobile aerodynamic testing.
Technical Specifications: HT-9829 Anemometer
|
Parameter
|
Range
|
Resolution
|
Accuracy
|
|
Air Velocity (m/s)
|
0.10 to 25.00 m/s
|
0.01 m/s
|
±3% +0.20 m/s
|
|
Air Velocity (ft/min)
|
20 to 4926 ft/min
|
1 ft/min
|
±3% +40 ft/min
|
|
Air Velocity (km/h)
|
0.3 to 90.0 km/h
|
0.1 km/h
|
±3% +0.8 km/h
|
|
Air Velocity (MPH)
|
0.5 to 55.8 MPH
|
0.1 mph
|
±3% +0.4 MPH
|
|
Air Velocity (Knots)
|
0.2 to 48.5 Knots
|
0.1 knots
|
±3% +0.4 knots
|
|
Air Temperature
|
0 to 50ºC (32 to 122ºF)
|
0.1 ℉/℃
|
±2.0ºC (4.0ºF)
|
|
Air Flow (CFM)
|
0 to 9999
|
1
|
Area: 0-9.999 ft²
|
|
Air Flow (CMM)
|
0 to 9999
|
1
|
Area: 0-9.999 m²
|
|
Weight
|
390g
|
||
|
Size
|
198×85×45mm
|
||
|
Battery Type
|
9V
|
||
|
Included Accessories
|
Battery, manual, black box, and gift box
|
