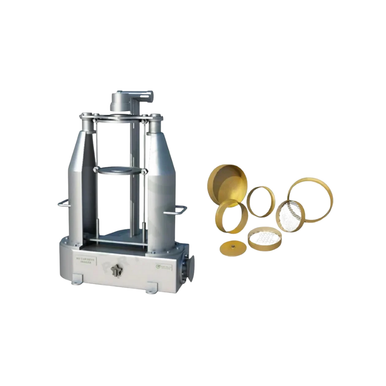

Jayant RO-TAP Sieve Shaker Model J-94 – Heavy Duty Floor Model Particle Size Analysis System
The JAYANT Model J-94 RO-TAP Sieve Shaker is a precision-engineered heavy-duty laboratory instrument designed for accurate particle size analysis, dry sieving applications, and industrial quality control testing. Built for research laboratories, cement industries, mining operations, aggregate testing facilities, powder processing plants, pharmaceutical industries, and material testing laboratories, this advanced sieve shaker provides highly reproducible and consistent sieving performance for demanding laboratory environments.
Utilizing a unique two-dimensional sieving mechanism, the J-94 combines horizontal circular oscillation with vertical tapping motion to ensure efficient material stratification and superior particle separation accuracy. This dual-action motion simulates highly controlled hand sieving while delivering repeatable analytical results essential for scientific testing and industrial quality assurance applications.
The RO-TAP mechanism is specifically developed for precise dry sieving of particles ranging from 25 mm down to 25 microns. Its advanced tapping and oscillation system enables particles to orient themselves efficiently and pass through critical sieve openings, improving test accuracy and reducing analysis time for fine powders, granular materials, aggregates, minerals, cement, soils, chemicals, and industrial raw materials.
Constructed with a rugged industrial-grade framework, the Model J-94 is powered by an integrated 1/4 H.P. electric motor designed for continuous heavy-duty operation. The machine accommodates up to 8 standard test sieves of 200 mm diameter and 50 mm height, making it suitable for high-volume laboratory testing workflows.
The internal drive system operates within specially lubricated machine oil to ensure smooth mechanical operation, reduced wear, and long operational life under intensive laboratory conditions. With controlled oscillation frequencies of 300–350 horizontal oscillations per minute and 180–200 tapping motions per minute, the J-94 ensures highly efficient particle classification and dependable repeatability.
Widely used as professional laboratory testing equipment for particle grading, sieve analysis, industrial quality control, and research laboratory applications, the Jayant RO-TAP Sieve Shaker Model J-94 offers an ideal combination of mechanical durability, analytical precision, and long-term operational reliability for modern scientific and industrial laboratories.
Technical Specifications
| Feature | Details |
|---|---|
| Product Type | RO-TAP Floor Model Sieve Shaker |
| Model | J-94 |
| Brand | JAYANT |
| Operation Principle | Two-Dimensional Motion (Horizontal Circular + Vertical Tapping) |
| Sieving Type | Dry Sieving Only |
| Particle Analysis Range | 25 mm down to 25 Microns |
| Maximum Sieve Capacity | 8 Sieves + Upper Lid + Bottom Receiver |
| Maximum Sieve Diameter | 8 Inches (200 mm) |
| Maximum Sieve Height | 2 Inches (50 mm) |
| Horizontal Oscillation Speed | 300 – 350 Oscillations per Minute |
| Oscillation Movement | 1" x 0.85" |
| Tapping Frequency | 180 – 200 Taps per Minute |
| Motor Power | 1/4 H.P. Built-In Electric Motor |
| Power Requirement | 230 VAC, 50 Hz, 180 Watts |
| Internal Drive Lubrication | Machine Oil No. 40 |
| Dimensions (L x W x H) | 640 x 560 x 950 mm (Approx.) |
| Net Weight | 190 Kg Approx. (Without Sieves) |
| Shipping Weight | 215 Kg Approx. (With Wooden Case) |
| Standard Package | Main Sieve Shaker Unit Only |
| Optional Accessory | External Timer Box with Mechanical Timer (10–60 Minutes) |
| Applications | Particle Size Analysis, Aggregate Testing, Soil Testing, Cement Testing, Powder Analysis, Industrial QC Laboratories |
Core Features & User Benefits
The JAYANT Model J-94 RO-TAP Sieve Shaker is engineered for highly accurate dry particle analysis with rugged industrial construction, repeatable sieving performance, and dependable laboratory operation.
- Advanced RO-TAP Dual Motion Technology Combines horizontal circular motion with vertical tapping action to ensure efficient material stratification and highly accurate particle separation results.
- Highly Reproducible Particle Analysis The precision mechanical motion system delivers repeatable and dependable sieve analysis results for laboratory quality control and research applications.
- Wide Particle Testing Range Suitable for particle size analysis from 25 mm down to 25 microns, supporting both coarse and fine material testing applications.
- Heavy Duty Industrial Construction Built with a rugged floor model structure and industrial-grade components designed for continuous laboratory and production environment use.
- High Capacity Sieving System Accommodates up to 8 test sieves simultaneously, improving laboratory throughput and testing efficiency.
- Powerful Built-In Motor Assembly Equipped with a reliable 1/4 H.P. motor engineered for stable oscillation and tapping performance during continuous operation.
- Efficient Dry Sieving Performance Specifically optimized for dry sieving applications requiring high accuracy in aggregate grading, mineral testing, powder analysis, and soil classification.
- Controlled Oscillation and Tapping Maintains precise oscillation and tapping frequencies for uniform material movement and improved analytical consistency.
- Long Operational Life Internal moving mechanisms operate within specialized lubricating oil to minimize wear and ensure smooth long-term operation.
- Suitable for Multiple Industries Ideal laboratory testing equipment for cement plants, mining industries, pharmaceuticals, aggregate laboratories, research institutes, and industrial quality control facilities.
Frequently Asked Questions (FAQ)
What is the primary application of the Jayant J-94 RO-TAP Sieve Shaker?
The Jayant J-94 RO-TAP Sieve Shaker is primarily used for accurate dry particle size analysis in laboratories and industrial quality control environments. Its dual-motion sieving mechanism ensures highly reproducible particle separation for aggregates, powders, minerals, cement, soil, and granular material testing applications.
This laboratory testing equipment is widely used in research laboratories, mining industries, cement plants, pharmaceuticals, construction material testing facilities, and industrial quality assurance departments requiring precise sieve analysis.
How does the RO-TAP dual motion system improve sieve analysis accuracy?
The RO-TAP mechanism combines horizontal circular oscillation with vertical tapping motion to improve material stratification and particle movement across the sieve surface. This dual-action system enables particles to efficiently seek critical openings, improving separation accuracy and delivering consistent particle size distribution results.
The mechanized sieving action closely simulates controlled hand sieving while providing significantly better repeatability and reduced operator variability during testing procedures.
How many sieves can be accommodated in the J-94 Sieve Shaker?
The Jayant J-94 RO-TAP Sieve Shaker can accommodate a maximum of 8 standard test sieves along with an upper lid and bottom receiver assembly. The machine is specifically designed for 200 mm diameter and 50 mm height laboratory test sieves.
This large sieve holding capacity improves laboratory productivity by allowing multiple particle grading stages to be analyzed simultaneously during a single sieving cycle.
Is the J-94 suitable for wet sieving applications?
No, the Jayant Model J-94 RO-TAP Sieve Shaker is specifically designed for dry sieving applications only. It is optimized for accurate dry particle size analysis of powders, aggregates, soils, minerals, chemicals, and industrial raw materials.
Its controlled oscillation and tapping mechanism ensure dependable dry material stratification and efficient passage through test sieve openings without moisture-related interference.
What optional accessories are available with the J-94 RO-TAP Sieve Shaker?
An optional external timer box is available for the J-94 RO-TAP Sieve Shaker to automate sieving duration control. The timer unit includes an ON/OFF switch, pilot lamp, 3-pin socket, and imported mechanical timer with a 10 to 60-minute setting range.
This accessory improves operational convenience, enhances repeatability, and supports standardized laboratory testing procedures for routine particle analysis applications.
