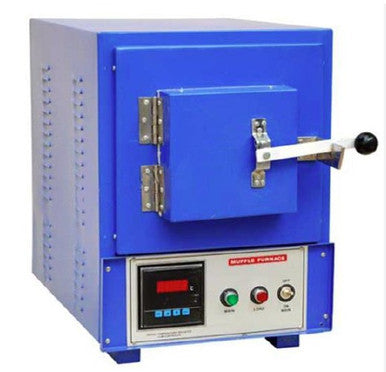

Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
Laboratory Muffle Furnace: High-Temperature Precision Heating for Industrial & Research Applications
Our professional-grade Muffle Furnace delivers reliable high-temperature performance for laboratories, research facilities, educational institutions, and industrial applications. Featuring premium ceramic fiber wool insulation and quality Khanthal A1 heating elements, this versatile furnace offers precise temperature control up to 1100°C in a durable, space-efficient design.Key Features & Benefits Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
- Advanced Ceramic Fiber Insulation - Lightweight high-temperature ceramic fiber wool provides superior thermal efficiency and rapid heating/cooling cycles
- Premium Heating Elements - Khanthal A1 wire elements ensure uniform heating, extended operational life, and precise temperature control
- Durable Construction - Double-walled thick PCRC (Pre-Coated Rolled Cold) sheet metal with powder coating for corrosion resistance and longevity
- Energy Regulation System - Built-in energy regulator for consistent temperature management and energy efficiency
- Optional PID Controller - Available with or without Proportional-Integral-Derivative controller for enhanced temperature precision and programmable operation
- Multiple Size Options - Six different chamber dimensions to accommodate various sample sizes and laboratory requirements
- Dual Temperature Ratings - Choose between 900°C and 1100°C maximum temperature models to match specific application needs
- Compact Footprint - Space-efficient design ideal for laboratories with limited bench space
- Versatile Applications - Suitable for ashing, heat treatment, annealing, ceramics firing, and material science research
Available Models & Specifications Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
| Model Size (W × H × D inches) | Chamber Dimensions | Maximum Temperature | Controller Options |
|---|---|---|---|
| 4 × 4 × 9 | Approx. 10.2 × 10.2 × 22.9 cm | 900°C | Standard energy regulator or optional PID controller |
| 4 × 4 × 9 | Approx. 10.2 × 10.2 × 22.9 cm | 1100°C | Standard energy regulator or optional PID controller |
| 5 × 5 × 10 | Approx. 12.7 × 12.7 × 25.4 cm | 900°C | Standard energy regulator or optional PID controller |
| 5 × 5 × 10 | Approx. 12.7 × 12.7 × 25.4 cm | 1100°C | Standard energy regulator or optional PID controller |
| 6 × 6 × 12 | Approx. 15.2 × 15.2 × 30.5 cm | 900°C | Standard energy regulator or optional PID controller |
| 6 × 6 × 12 | Approx. 15.2 × 15.2 × 30.5 cm | 1100°C | Standard energy regulator or optional PID controller |
Construction Details Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
Superior Insulation Technology
Our muffle furnace utilizes high-grade ceramic fiber wool insulation that provides multiple advantages over traditional insulation materials:- Enhanced Energy Efficiency - Superior thermal retention minimizes heat loss and reduces power consumption
- Faster Heating Cycles - Low thermal mass allows for rapid temperature increases, saving valuable lab time
- Quicker Cooling - Reduced cool-down periods between operations improve laboratory throughput
- Lightweight Design - Easier installation and positioning compared to traditional refractory brick furnaces
- Improved Temperature Uniformity - Consistent heating throughout the chamber for reliable sample processing
Premium Heating Element Design Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
The furnace incorporates Khanthal A1 wire heating elements, recognized industry-wide for their exceptional performance characteristics:- High Temperature Stability - Maintains consistent properties at elevated temperatures
- Excellent Oxidation Resistance - Extended operational life even in oxidizing atmospheres
- Uniform Heat Distribution - Strategic element placement ensures even heating throughout the chamber
- Rapid Response - Quick adjustment to temperature control inputs
- Long Service Life - Durable performance under repeated heating and cooling cycles
Durable Exterior Construction Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
The external housing is engineered for laboratory durability and longevity:- Double-Walled Design - Provides structural rigidity and additional thermal insulation
- Thick PCRC Sheet Metal - Premium pre-coated rolled cold sheet material offers superior strength
- Powder Coat Finish - Provides chemical resistance, prevents corrosion, and maintains appearance
- Heat-Resistant Exterior - Safe-to-touch outer surface during operation
- Compact Footprint - Efficient use of valuable laboratory bench space
Control System Options
Standard Energy Regulator Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
The base model includes a reliable energy regulator system:- Manual Temperature Control - Straightforward adjustment of power input to heating elements
- Visual Temperature Indication - Clear display of current chamber temperature
- Simple Operation - Ideal for applications requiring basic temperature management
- Reliable Performance - Consistent results for routine laboratory procedures
Optional PID Controller Upgrade Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
For applications requiring precise temperature management, the optional PID controller provides enhanced capabilities:- Proportional-Integral-Derivative Control - Advanced algorithm maintains temperature with minimal deviation
- Programmable Heating Profiles - Create multi-step temperature programs for complex protocols
- Digital Temperature Display - Precise readout of current and set point temperatures
- Temperature Alarms - Notification when chamber deviates from set parameters
- Enhanced Process Documentation - Support for experimental reproducibility and quality control
- Improved Energy Efficiency - Optimized heating cycles reduce power consumption
Applications & Uses Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
Laboratory & Research Applications
- Sample Ashing - Controlled incineration of organic materials for analytical testing
- Loss on Ignition (LOI) Analysis - Determination of volatile content in samples
- Heat Treatment - Controlled thermal processing of metals and alloys
- Annealing - Stress relief and structural modification of materials
- Calcination - Thermal decomposition of materials in controlled environment
- Ignition Testing - Material flammability and combustion research
- Tempering - Controlled heating and cooling for material property modification
Educational Applications
- Materials Science Education - Demonstrate heat effects on various substances
- Chemistry Laboratory Experiments - Support for thermal analytical procedures
- Geological Sample Processing - Preparation of rock and mineral specimens
- Student Research Projects - Reliable equipment for undergraduate and graduate studies
- Technical Training - Hands-on experience with industrial heating equipment
Industrial & Specialized Applications Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
- Dental Laboratory Procedures - Ceramic firing and metal processing
- Jewelry Making - Melting precious metals and heat treating components
- Ceramics Production - Firing small ceramic pieces and test samples
- Electronic Component Testing - Thermal stress evaluation and quality control
- Glass Working - Annealing and fusing applications
- Prototype Development - Testing material properties under high temperature conditions
Choosing the Right Model Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
Size Considerations Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
Select the appropriate chamber dimensions based on your specific requirements:- 4" × 4" × 9" (Small) - Ideal for small samples, limited bench space, or when processing individual specimens
- 5" × 5" × 10" (Medium) - Balanced option suitable for most laboratory applications and small batch processing
- 6" × 6" × 12" (Large) - Provides maximum capacity for larger samples or when processing multiple specimens simultaneously
Temperature Rating Selection Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
Choose between two maximum temperature ratings based on your application needs:- 900°C Models - Suitable for most standard laboratory procedures including ashing, calcination, and heat treatment of common materials
- 1100°C Models - Higher temperature capability for specialized applications requiring more extreme thermal conditions, such as ceramic firing, advanced material research, and high-temperature metal processing
Controller Type Selection Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
Determine the appropriate control system based on your process requirements:- Standard Energy Regulator - Cost-effective solution for applications where approximate temperature control is sufficient
- PID Controller Upgrade - Recommended for research applications, precise analytical work, or when reproducible heating profiles are essential Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
Installation & Operation Guidelines
Installation Requirements Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
- Ventilation - Place in a well-ventilated area or under an appropriate exhaust system
- Surface Requirements - Position on a stable, heat-resistant surface with adequate clearance on all sides
- Power Supply - Ensure appropriate electrical service is available (specific requirements provided with purchase)
- Safety Clearance - Maintain minimum 12" (30cm) clearance from walls and combustible materials
- Environmental Conditions - Operate in ambient temperatures below 30°C with relative humidity below 80%
Basic Operation Steps Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
- Preparation - Ensure chamber is clean and samples are properly prepared in appropriate crucibles or containers
- Loading - Place samples in chamber when furnace is cool, arranging to allow adequate air circulation
- Temperature Setting - Set desired temperature using energy regulator or program PID controller as required
- Heating Cycle - Allow furnace to reach set temperature and maintain for required duration
- Cooling - Turn off heating and allow furnace to cool naturally before opening door
- Sample Retrieval - Use appropriate heat-resistant tools to remove processed samples
Safety Precautions
- Heat Protection - Always use appropriate heat-resistant gloves when working with hot materials
- Door Operation - Never open door when furnace is at high temperatures
- Ventilation - Ensure adequate ventilation when processing samples that may release gases
- Loading Limitations - Do not overload chamber or block air circulation around samples
- Material Restrictions - Never process flammable, explosive, or toxic materials
Maintenance Recommendations Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
- Regular Cleaning - Remove spills and debris from chamber after each use when cool
- Heating Element Inspection - Periodically check elements for signs of damage or deterioration
- Door Seal Verification - Ensure door gasket maintains good condition for thermal efficiency
- Temperature Verification - Periodically confirm temperature accuracy using calibrated measurement devices
- External Surface Care - Clean powder-coated exterior with mild detergent and damp cloth
Ordering Information
When ordering, please specify: Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln- Chamber Size - Select from 4"×4"×9", 5"×5"×10", or 6"×6"×12"
- Maximum Temperature - Specify either 900°C or 1100°C models
- Controller Type - Indicate standard energy regulator or optional PID controller upgrade
- Power Supply Requirements - Confirm your laboratory's electrical specifications
- Any Additional Accessories - Inquire about available options such as extra shelves, data logging capabilities, or specialized crucibles
Summary Lab Muffle Furnace 900-1100°C High-Temperature Ceramic Kiln
Our Laboratory Muffle Furnace combines premium construction materials, quality heating elements, and versatile configuration options to deliver reliable high-temperature performance for a wide range of applications. With six different size and temperature combinations available, plus optional PID controller upgrades, you can select the exact specifications to meet your laboratory or industrial heating requirements. The lightweight ceramic fiber insulation, Khanthal A1 heating elements, and durable powder-coated exterior ensure consistent performance, energy efficiency, and long operational life. Whether you need basic ashing capabilities, precise heat treatment control, or specialized high-temperature processing, our muffle furnace provides the reliability and performance professional laboratories demand.Product overview
