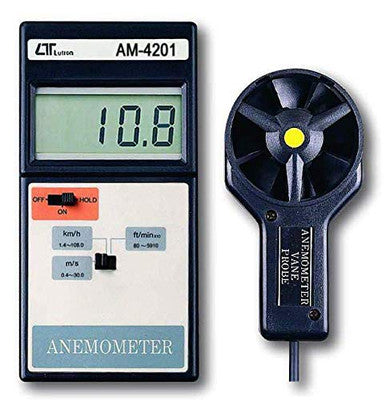

Digital Anemometer AM-4201
Product Overview
The AM-4201 Digital Anemometer is a professional-grade portable device designed for precise air flow measurement across multiple applications. With ISO-9001, CE, and IEC1010 certifications, this instrument delivers reliable performance for both commercial and industrial use.Key Features
- Multi-function air flow measurement in m/s, km/h, ft/min, and knots
- Remote sensor design for convenient readings in hard-to-reach areas
- Low-friction ball-bearing construction ensuring accuracy at both high and low velocities
- DATA HOLD function to store desired readings on the display
- Large LCD display with low power consumption for clear visibility even in bright light
- Eliminated conventional twisted vane arms for improved reliability
- Compact, lightweight ABS-plastic housing for durability and portability
- Built-in low battery indicator
Applications
Perfect for professionals working with:- Air conditioning systems
- Heating systems
- Air velocity measurement
- Wind speed monitoring
- Temperature assessment (AM-4202 model)
Technical Specifications
General Specifications
| Feature | Specification |
|---|---|
| Display | 18mm (0.7") LCD, 3 1/2 digits |
| Measurement Units | m/s, km/h, ft/min, knots |
| Power Supply | DC 9V 006P, MN1604(PP3) battery |
| Power Consumption | Approx. DC 9 mA |
| Weight | 325 g/0.72 LB (including battery) |
| Dimensions | Instrument: 168 x 80 x 35mm (6.6 x 3.2 x 1.2 inch) Sensor Head: Round, 72 mm Diameter |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Humidity | Less than 80% RH |
| Sensor Structure | Low-friction ball-bearing design |
Air Velocity Measurement
| Unit | Range | Resolution | Accuracy |
|---|---|---|---|
| m/s | 0.4-30.0 m/s | 0.1 m/s | ± (2% + 1d) |
| km/h | 1.4-108.0 km/h | 0.1 km/h | ± (2% + 3d) |
| ft/min | 80-5910 ft/min | 10 ft/min | ± (2% + 2d) |
| knots | 0.8-58.3 knots | 0.1 knots | ± (2% + 2d) |
Package Includes
- 1 × Instruction Manual
- 1 × Sensor probe
- 1 × Carrying case
Why Choose the AM-4201 Digital Anemometer?
The AM-4201 combines precision engineering with user-friendly design to deliver accurate measurements in various environments. The sensitive balanced vane wheel rotates freely in response to air flow, while the eliminated twisted vane arms increase reliability where conventional models fall short. This instrument is an essential tool for HVAC professionals, building inspectors, environmental engineers, and anyone requiring precise air flow measurements in their work. *Manufactured by LUTRON ELECTRONIC. Specifications subject to change without notice.Product overview
