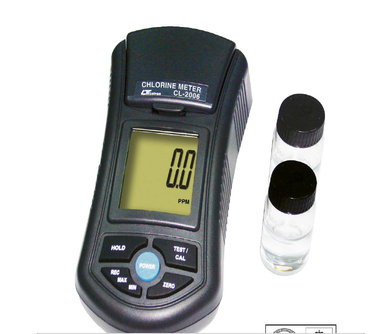

Lutron CL-2006 Free & Total Chlorine Meter
Lutron CL-2006 Free & Total Chlorine Meter
The Lutron CL-2006 is a professional-grade water quality testing instrument designed specifically for accurate measurement of both free and total chlorine concentrations. ISO-9001 and CE certified, this precision meter uses EPA-approved methodology and advanced optical technology to deliver reliable results for swimming pools, municipal water supplies, food and beverage applications, and any aqueous solution where water clarity and chlorine content are critical parameters.Key Features & Benefits
- Dual Measurement Capability - Tests both free and total chlorine in a single device
- High Precision Range - Measures from 0.00 to 3.50 ppm (mg/L) with 0.01 ppm resolution
- EPA-Approved Methodology - Adapts USEPA Method 330.5 and Standard Method 4500-Cl G
- Advanced Optical System - Special narrow band 525 nm LED lamp for accurate readings
- Superior Accuracy - ±0.02 ppm at 1.00 ppm concentration
- Fast Response Time - Results in less than 10 seconds
- Comprehensive Calibration - Includes zero, 1.00 ppm free, and 1.00 ppm total calibration points
- Splash-Proof Design - Waterproof front panel for field testing protection
- Jumbo LCD Display - Large 41 mm × 34 mm screen for easy reading
- Data Management - Data hold function and max/min recording with recall
- Complete Testing Kit - Includes all necessary reagents, standards, and accessories
- Portable Design - Battery-powered with carrying case for field testing Lutron CL-2006 Free & Total Chlorine Meter
- Power-Saving Features - Auto shut-off function extends battery life
Technical Specifications
Measurement Specifications
| Parameter | Specification |
|---|---|
| Measurement Range | Free Chlorine: 0.00 to 3.50 ppm (mg/L) Total Chlorine: 0.00 to 3.50 ppm (mg/L) |
| Resolution | 0.01 ppm (mg/L) |
| Accuracy | ±0.02 ppm (mg/L) @ 1.00 ppm |
| Response Time | Less than 10 seconds |
| Sample Volume | 10 mL |
| Measurement Method | Adaptation of USEPA Method 330.5 and Standard Method 4500-Cl G (DPD colorimetric method) |
| Light Source | LED, 525 nm |
| Light Detector | Photo diode |
| Calibration Points | Zero chlorine 1.00 ppm (Free chlorine) 1.00 ppm (Total chlorine) |
General Specifications
| Parameter | Specification |
|---|---|
| Display | LCD, 41 mm × 34 mm |
| Circuit | Custom one-chip microprocessor LSI circuit |
| Sampling Time | Approximately 1 second |
| Data Functions | Data Hold (freeze reading) Maximum/Minimum recording with recall |
| Power Supply | DC 1.5V battery (UM4, AAA) × 6 PCs or equivalent |
| Power Consumption | Standby: Approx. DC 4 mA Testing: Approx. DC 12 mA |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | Less than 85% RH |
| Auto Power Off | Yes, with manual override |
| Dimensions | 155 × 76 × 62 mm (6.1 × 3.0 × 2.4 inches) |
| Weight | 320 g / 0.70 LB (including batteries) |
Complete Package Contents
The CL-2006 comes as a comprehensive testing kit with everything needed for immediate operation:- CL-2006 Chlorine Meter - Main instrument unit
- Hard Carrying Case (CA-08) - For safe transport and storage
- Free Chlorine DPD Powder Reagents - 10 packets included
- Total Chlorine DPD Powder Reagents - 10 packets included
-
Calibration Standards:
- 1.0 ppm Free Chlorine Standard Solution (CF-01)
- 1.0 ppm Total Chlorine Standard Solution (CT-01)
- Zero Chlorine Standard Solution (CL-01)
- Empty Testing Bottles - 2 units included
- Cleaning Cloth - For maintenance
- Instruction Manual - Comprehensive user guide Lutron CL-2006 Free & Total Chlorine Meter
Optional Accessories Lutron CL-2006 Free & Total Chlorine Meter
- Free Chlorine DPD Powder (10 PCs) - Model: CFP-10
- Total Chlorine DPD Powder (10 PCs) - Model: CTP-10
- Additional Empty Testing Bottle - Model: 0601
-
Replacement Calibration Standards:
- 1.0 ppm Free Chlorine Standard Solution - Model: CF-01
- 1.0 ppm Total Chlorine Standard Solution - Model: CT-01
- Zero Chlorine Standard Solution - Model: CL-01
Applications Lutron CL-2006 Free & Total Chlorine Meter
The Lutron CL-2006 is designed for a wide range of water quality testing applications:- Swimming Pool Management - Maintain optimal disinfection levels while ensuring swimmer comfort and safety
- Municipal Water Treatment - Monitor chlorine levels in drinking water distribution systems
- Food & Beverage Processing - Verify sanitizing and disinfection procedures
- Healthcare Facilities - Test water systems for appropriate chlorine levels
- Cooling Towers - Monitor biocide treatments and prevent microbial growth
- Aquaculture - Ensure appropriate water quality for aquatic organisms
- Laboratory Analysis - Perform accurate chlorine testing for research or quality control
- Wastewater Treatment - Monitor chlorination processes for effluent disinfection
- Educational Institutions - Teach water quality testing procedures
- Environmental Monitoring - Assess chlorine levels in environmental water samples
Understanding Chlorine Measurement
Free vs. Total Chlorine Lutron CL-2006 Free & Total Chlorine Meter
The CL-2006 measures both critical forms of chlorine in water:- Free Chlorine - The active disinfectant form (hypochlorous acid and hypochlorite ion) available to sanitize water
- Total Chlorine - The sum of free chlorine plus combined chlorine (chloramines formed when chlorine reacts with nitrogen compounds)
DPD Method
The CL-2006 uses the DPD (N,N-diethyl-p-phenylenediamine) colorimetric method, which is approved by the U.S. Environmental Protection Agency (EPA) for water testing:- Free Chlorine Test - Free chlorine reacts with DPD reagent to produce a pink color proportional to concentration
- Total Chlorine Test - Uses additional reagents to measure both free and combined chlorine forms
- Accurate Quantification - The meter's 525 nm LED light source precisely measures color intensity to determine concentration
Advanced Technology Lutron CL-2006 Free & Total Chlorine Meter
The CL-2006 incorporates several technological advantages:- Narrow-Band LED Technology - Provides more accurate and repeatable readings than traditional colorimeters
- Microprocessor Control - Ensures consistent results with automatic processing
- Optical Calibration System - Allows verification of meter performance with standard solutions
- Water-Resistant Design - Front panel splash protection for field use reliability
- Digital Signal Processing - Converts optical measurements to precise concentration readings
Operational Advantages Lutron CL-2006 Free & Total Chlorine Meter
The CL-2006 offers significant benefits for water quality professionals:- High Resolution - 0.01 ppm increments allow detection of small concentration changes
- Rapid Testing - Complete results in seconds for efficient workflow
- Field Portability - Battery operation and carrying case for on-site measurements
- Simple Operation - User-friendly interface requires minimal training
- Complete System - All necessary reagents, standards, and accessories included
- Data Management - Hold function and min/max recording for trend analysis
- Extended Battery Life - Low power consumption and auto shut-off feature
Quality & Reliability Lutron CL-2006 Free & Total Chlorine Meter
The Lutron CL-2006 is manufactured under ISO-9001 quality management standards and meets CE certification requirements and IEC1010 safety standards. These certifications ensure reliable performance and accurate measurements for professional water quality testing applications. With its comprehensive capabilities, professional-grade accuracy, and complete accessory package, the Lutron CL-2006 Chlorine Meter provides water quality professionals with an efficient, reliable tool for monitoring this critical water treatment parameter in a wide range of applications.Product overview
