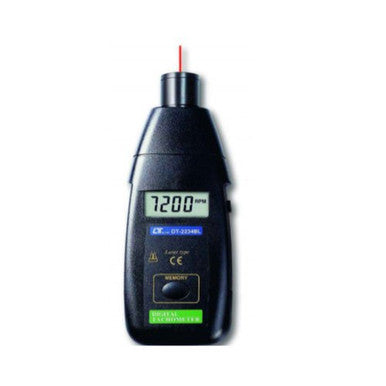

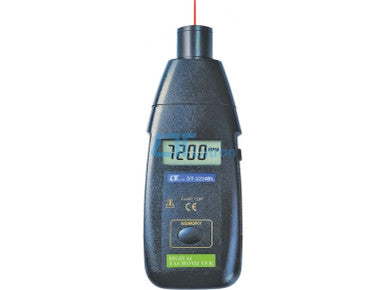

Lutron DT-2234BL Laser Photo Tachometer Product Description:
The Lutron Model DT-2234BL is a professional, high-precision Laser Photo Tachometer designed for non-contact measurement of rotational speeds (RPM). Certified with ISO-9001, CE, and IEC1010 standards, this instrument utilizes advanced laser technology and microprocessor circuitry to deliver reliable and accurate readings across a wide range.
Key Features and Safety Advantages:
The DT-2234BL is engineered to provide safe and convenient rotational speed measurement in challenging environments.
• Extended Range Measurement: A key feature is the laser light detecting source, which provides a long measuring range of up to 2 meters. This extended distance is crucial for applications where the machine poses a risk to the operator or where close access is difficult or impossible. The typical effective measuring distance is between 50 mm and 2,000 mm.
• High Precision and Stability: The meter incorporates an exclusive one-chip microcomputer LSI circuit, coupled with a highly accurate 4.194 MHz quartz crystal time base, ensuring high precision with an accuracy of .
• Wide Measuring Capacity: The tachometer offers a wide measurement range, capable of reading speeds from 10 to 100,000 RPM.
• User-Friendly Display and Memory: Readings are shown on a highly visible 5-digit LCD display (10 mm / 0.4" size) with function annunciation, providing RPM readings exactly without the need for estimation while also conserving battery life. A dedicated memory function automatically stores the last reading, the maximum value (Max.), and the minimum value (Min.).
• Durable Design: The unit is constructed using durable, long-lasting components housed within a strong, light weight ABS plastic housing, promising years of almost maintenance-free performance.
Ideal Applications:
This digital tachometer is a versatile tool for measuring the rotational speed of shafts, wheels, motors, and other rotating objects. Unlike contact tachometers, the DT-2234BL uses a non-contact laser beam, making it ideal for use on delicate objects or where physical contact is undesirable. It is suitable for industrial applications, automotive repairs, maintenance tasks, and general use in vehicles, ships, and airports.
Technical Specifications: Lutron DT-2234BL:
|
Specification
|
Detail
|
|
Product Model
|
DT-2234BL
|
|
Brand
|
Lutron Electronic
|
|
Type
|
Laser Photo Tachometer (Non-Contact)
|
|
Measurement Range
|
10 to 99,999 RPM (Display Range)
|
|
Wide Measuring Range
|
10 to 100,000 RPM
|
|
Accuracy
|
|
|
Resolution
|
0.1 RPM (for values < 1,000 RPM)
|
|
1 RPM (for values ≥ 1,000 RPM)
|
|
|
Detecting Distance
|
Typically 50 mm to 2,000 mm (Up to 2 meters)
|
|
Laser Light Source
|
Class 2 laser red diode, less than 1 mW
|
|
Wavelength
|
Approximately 645 nm
|
|
Display
|
5 digits, 10 mm (0.4") LCD, with function annunciation
|
|
Circuit
|
Exclusive one-chip microcomputer LSI circuit
|
|
Time Base
|
Quartz crystal, 4.194 MHz
|
|
Memory Function
|
Last value, Maximum value (Max.), Minimum value (Min.)
|
|
Operating Temperature
|
0 to 50 °C (32 to 122 °F)
|
|
Operating Humidity
|
Less than 80% R.H.
|
|
Power Supply
|
4 x 1.5V AA (UM-3) battery
|
|
Power Consumption
|
Approx. DC 20 mA
|
|
Dimensions (LxWxH)
|
190 x 72 x 37 mm (7.5 x 2.8 x 1.5 inch)
|
|
Weight
|
250g (0.55 LB), including battery
|
|
Housing Material
|
Strong, light weight ABS plastic housing
|
|
Accessories Included
|
Carrying case, Reflecting tape marks (600 mm), Operation manual
|
