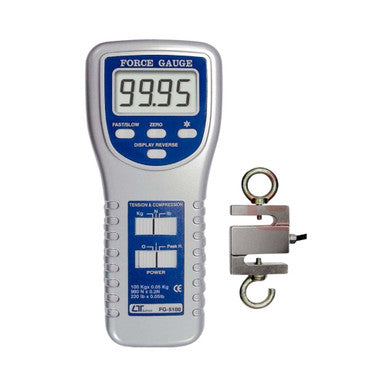

Product Description: Lutron Model FG-5100 Force Gauge:
The Lutron FG-5100 Force Gauge is a high-grade digital measuring instrument designed for precise industrial applications. This robust, hand-held device accurately measures both tension (pull) and compression (push) forces up to a wide capacity of 100 Kg. As a key tool for material testing, quality control, research and development, and product testing, the FG-5100 offers high resolution, high accuracy, and excellent repeatability. The unit combines an exclusive microprocessor LSI circuit and a load cell transducer for superior performance.
Key Features:
• Dual Function Measurement: Accurately measures tension and compression (push & pull) forces, along with normal force.
• High Capacity: Offers a wide measurement capacity of 100 Kg / 220 LB / 980 Newton.
• Peak Hold Function: Includes a peak hold feature that freezes and holds the maximum load value during tension or compression measurement.
• User-Selectable Units: Supports measurement and display in three kinds of units: Kg, LB (Pounds), and Newton.
• Advanced Display: Features a large 5-digit LCD display (16 mm digit size) equipped with a backlight for clear and easy reading, even in varying light conditions.
• Display Orientation Control: Allows for positive or reverse display direction selection via a push button on the front panel.
• Data Connectivity: Built-in RS-232 serial computer interface enables connection to a PC for data output.
• Operation Control: Includes a Zero button for normal measuring and "peak hold" operation, offering full capacity zero (tare) control capability.
• Durable and Portable: Designed for hand-held use, but mounting holes are provided on the back case for easy stand mounting, such as on a professional test stand (optional).
• Protection and Efficiency: Features over load protection (Max. 150 kg) and a built-in low battery indicator, coupled with low power consumption for long battery life.
• Response Time: Features Fast (Approx. 0.2 second) and Slow (Approx. 0.6 second) response time push buttons.
Technical Specifications:
|
Parameter
|
Detail
|
|
Model No.
|
FG-5100
|
|
Type of Product
|
Force Gauge
|
|
Brand
|
Lutron
|
|
Measure Capacity/Range
|
100 Kg / 220 LB / 980 Newton
|
|
Overload Capacity
|
Max. 150 kg
|
|
Resolution
|
0.05 Kg / 0.05 LB / 0.2 Newton
|
|
Accuracy
|
± (0.5 % + 2 digits), within $23^{\circ}C \pm 5^{\circ}C$
|
|
Display
|
LCD (Liquid crystal display), 5 digits, 16 mm (0.63") digit size, with backlight
|
|
Unit Selection
|
Kg / LB / Newton
|
|
Measurement State
|
Tension & Compression (Push & Pull), Normal force, Peak hold (Max. load)
|
|
Data Output
|
RS-232 serial computer interface
|
|
Update Time (Fast/Slow)
|
Approx. 0.2 second (Fast) / Approx. 0.6 second (Slow)
|
|
Sensor Type
|
S type load cell, Separate sensor
|
|
Power Supply
|
6 x 1.5 V AA (UM-3) size battery or DC 9V adapter (not included)
|
|
Power Consumption
|
Approx. DC 28 mA
|
|
Operating Temperature
|
$0^{\circ}C$ to $50^{\circ}C$ ($32^{\circ}F$ to $122^{\circ}F$)
|
|
Operating Humidity
|
Less than 80% RH
|
|
Main Instrument Dimension
|
215 x 90 x 45 mm (8.5 x 3.5 x 1.8 inch)
|
|
Main Instrument Weight
|
450 g (0.99 LB)
|
Accessories:
Included Accessories:
• Operating Manual
• 100 Kg sensor with 2 hooks and 2-meter cable
• Hard Carrying Case
Optional Accessories:
• RS232 Cable (Model: UPCB-01)
• USB Cable (Model: USB-01)
• Software for data logging and data recorder (Model: SW-U801-WIN)
• DC 9V Adapter
• Professional test stand mounting options (e.g., FS-1001 stand, WG-01 stand)
