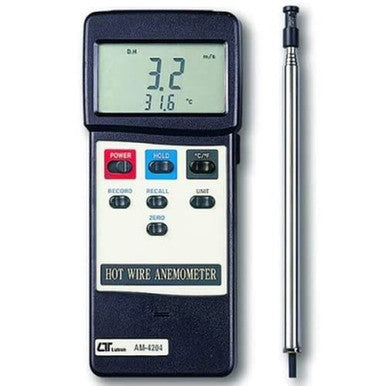

Lutron Hot Wire Anemometer AM-4204 with Temperature Measurement
The Lutron AM-4204 is a professional-grade hot wire anemometer specifically designed for precise low air velocity measurements. This ISO-9001 certified, CE-compliant device meets IEC1010 standards, making it the ideal choice for HVAC professionals, environmental technicians, and industrial applications where accuracy is paramount.Premium Features
- Thermal anemometer technology for exceptionally accurate low air velocity measurements
- Slim telescoping probe (extends from 280mm to 940mm) ideal for grilles, diffusers, and hard-to-reach areas
- Dual function super large 13mm LCD display shows both air velocity and temperature simultaneously
- Multi-function measurement in five units: m/s, km/h, ft/min, knots, and miles/h
- Built-in temperature measurement in both °C and °F with fast response thermistor sensor
- Data hold function to freeze current readings for easy recording
- Memory function stores maximum and minimum readings with recall capability
- RS232 PC serial interface for data logging and analysis
- Auto shut-off feature to conserve battery life
- Durable ABS plastic housing in a compact, lightweight design
Technical Specifications
Air Velocity Measurement Range
- 0.2-20.0 m/s (resolution: 0.1 m/s)
- 0.7-72.0 km/h (resolution: 0.1 km/h)
- 40-3940 ft/min (resolution: 1 ft/min)
- 0.5-44.7 mile/h (resolution: 0.1 mile/h)
- 0.4-38.8 knots (resolution: 0.1 knots)
Temperature Measurement Range
- 0°C to 50°C (resolution: 0.1°C, accuracy: ±0.8°C)
- 32°F to 122°F (resolution: 0.1°F, accuracy: ±1.5°F)
Sensor Technology
- Air Velocity: Tiny glass bead thermistor
- Temperature: Precision thermistor for fast response time
General Specifications
- Circuit: Custom one-chip microprocessor LSI circuit
- Sampling Time: Approximately 0.8 seconds
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Operating Humidity: Less than 80% RH
- Power Supply: 6 × 1.5V AAA (UM-4) batteries (alkaline or heavy duty)
- Power Consumption: Approximately DC 30 mA
- Dimensions: 180 × 72 × 32 mm (7.1 × 2.8 × 1.3 inches)
- Telescope Probe: 12 mm diameter, extends from 280 mm to 940 mm
- Weight: 355 g (0.78 LB)
Applications
The AM-4204 Hot Wire Anemometer is ideal for:- Environmental testing and monitoring
- Air conveyors and flow hoods
- Clean room air velocity measurement
- HVAC air balancing and system verification
- Fan, motor, and blower performance testing
- Furnace velocity measurements
- Refrigerated case airflow analysis
- Paint spray booth airflow monitoring
Package Includes
- AM-4204 Hot Wire Anemometer main unit
- Telescoping probe
- Hard carrying case
- Comprehensive instruction manual
Optional Accessories
- Datalogger software (SW-U801-WIN)
- RS232 cable (UPCB-01)
