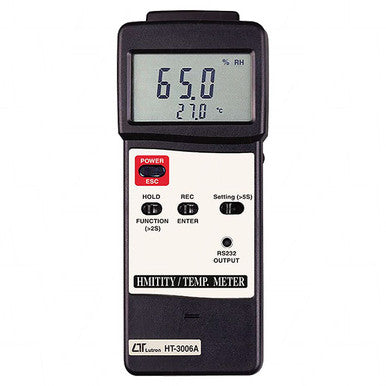

Product Description: Lutron Model HT-3006A/HT-3006HA Humidity/Temperature Meter:
Overview and Core Functionality:
The Lutron HT-3006A and HT-3006HA are intelligent, combined instruments designed for highly accurate environmental measurement. This device seamlessly integrates a precision humidity meter and a versatile Type K/J thermometer into one heavy-duty, compact housing case, making it easy to carry out and operate. Utilizing a custom one-chip microprocessor LSI circuit, the meter assures maximum possible accuracy and provides essential special functions.
Advanced Sensor Technology:
The meter features advanced sensor technology for reliable, fast readings across a wide range of measurements.
• Humidity: The humidity measurement employs a high precision thin-film capacitance sensor, offering high precision and fast response time. This sensor’s performance does not depend on air movement past the probe.
• Ambient Temperature (via probe): The humidity probe has a built-in thermistor sensor for temperature measurement, characterized by a fast response time.
• Type K/J Thermometer: The integrated Type K/J thermometer includes built-in temperature linearity and a precision cold junction compensation circuit, ensuring high accuracy, especially for high-temperature thermocouple measurements.
•User Interface and Data Management: The HT-3006 series is built for easy reading and data handling in professional settings.
• Display: It features a super large 13 mm (0.5") LCD display with dual function capability, allowing the humidity and temperature values to be shown on the screen at the same time.
• Data Handling: Key features include the Data Hold function for storing the desired value on display and the ability to record and recall Maximum and Minimum readings.
• Settings: The temperature function allows users to easily select between Celsius (℃) or Fahrenheit (℉) using a push button on the front panel.
• Efficiency: To conserve power, the unit includes an auto shut-off function (or manual off by push button) and a built-in low battery indicator.
• Connectivity (HT-3006A): The instrument features an RS 232 PC serial interface for data output, facilitating connection for remote measurement and recording.
Technical Specifications:
|
Measurement
|
Range
|
Resolution
|
Accuracy (at 23 ± 5 ℃)
|
Sensor Type
|
|
Humidity (R.H.)
|
10 % to 95 % R.H.
|
0.1 % R.H.
|
< 70 % R.H.: ± 3% R.H.
|
High precision thin-film capacitance sensor
|
|
≥ 70 % R.H.: ± (3 % reading + 1 % R.H.)
|
||||
|
Temperature (Internal Probe)
|
0 to 60 ℃
|
0.1 ℃
|
± 0.8 ℃
|
Thermistor
|
|
32 to 140 ℉
|
0.1 ℉
|
± 1.5 ℉
|
||
|
Type K Thermometer
|
-50.0 to 1300.0 ℃
|
0.1 ℃
|
± (0.4 % + 0.8 ℃) (Meter only)
|
Thermocouple probe
|
|
-58.0 to 2372.0 ℉
|
0.1 ℉
|
± (0.4 % + 1.5 ℉) (Meter only)
|
||
|
Type J Thermometer
|
-50.0 to 1100.0 ℃
|
0.1 ℃
|
± (0.4 % + 0.8 ℃) (Meter only)
|
Thermocouple probe
|
General Specifications:
|
Feature
|
Detail
|
|
Circuit
|
Custom one-chip microprocessor LSI circuit
|
|
Display
|
13 mm (0.5") Super large LCD display, Dual function
|
|
Sampling Time
|
Approx. 0.8 second
|
|
Data Output
|
RS 232 PC serial interface
|
|
Power Supply
|
006P DC 9V battery (heavy duty)
|
|
Power Current
|
Approx. DC 8.5 mA
|
|
Operating Temperature (Main Instrument)
|
0 to 50 ℃
|
|
Operating Humidity (Main Instrument)
|
Less than 90% R.H.
|
|
Weight (Main Instrument)
|
345 g / 0.76 LB
|
|
Dimensions (Main Instrument)
|
185 x 78 x 38 mm (7.3 x 3.1 x 1.5 inch)
|
|
Humidity Sensor Probe Length
|
197 mm (7.8 inch)
|
|
Certifications
|
ISO-9001, CE, IEC1010
|
Included Accessories
• Instruction manual
• Humidity probe
• Carrying Case
