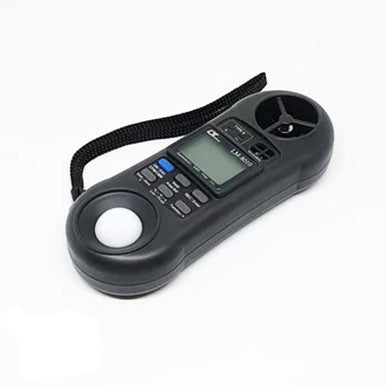

Lutron LM-8010 5-in-1 CMM/CFM Anemometer & Multi-Meter
Lutron LM-8010 Professional 5-in-1 Environmental Measuring Instrument
The Lutron LM-8010 combines five essential measuring tools in one compact, lightweight device. This ISO-9001 and CE certified professional instrument delivers precise measurements for air velocity, air flow, humidity, temperature, and light intensity in a convenient pocket-sized design.Comprehensive Measurement Capabilities
Experience unmatched versatility with five professional measuring functions in one device:- Anemometer - Measure air velocity with high accuracy using low-friction ball bearing mounted wheel design
- Air Flow Meter - Calculate CMM (cubic meters/minute) and CFM (cubic feet/minute) with customizable area settings
- Hygrometer - Monitor humidity with fast-response thin-film capacitance sensor
- Thermometer - Track temperatures with built-in thermister and Type K thermocouple support
- Light Meter - Assess illumination with photo diode and color correction filter (meets C.I.E. photopic spectrum)
User-Friendly Design Features
- Compact bone-shaped design for comfortable one-handed operation
- Protective wristlet for secure handling
- Multi-channel LCD display shows simultaneous readings
- Microprocessor-powered for excellent performance and accuracy
- Intuitive button layout for easy operation
- Maximum and minimum value memory function with recall
- Data hold feature to freeze current readings
- Zero button for light meter calibration
Detailed Measurement Specifications
Air Velocity Measurement Lutron LM-8010 5-in-1 CMM/CFM Anemometer & Multi-Meter
- 80 to 5,910 ft/min (feet per minute)
- 0.4 to 30.0 m/s (meters per second)
- 1.4 to 108.0 km/h (kilometers per hour)
- 0.9 to 67.0 MPH (miles per hour)
- 0.8 to 58.3 knots (nautical miles per hour)
- Accuracy: ±3% F.S. (≤20 m/s), ±4% F.S. (>20 m/s)
- Resolution: 0.1 m/s, 0.1 km/h, 0.1 MPH, 0.1 knots, 1 ft/min
Air Flow Measurement
- CMM (cubic meters/minute): Up to 54,000 CMM with 0.001 to 1 CMM resolution
- CFM (cubic feet/minute): Up to 1,908,400 CFM with 0.001 to 100 CFM resolution
- Customizable area settings: 0.001 to 30.000 square meters or 0.01 to 322.92 square feet
Temperature Measurement Lutron LM-8010 5-in-1 CMM/CFM Anemometer & Multi-Meter
- Built-in thermister: 32 to 122°F (0 to 50°C) with ±2.5°F (±1.2°C) accuracy
- Type K thermocouple: -148 to 2,372°F (-100 to 1,300°C) with ±(1% reading + 2°F) accuracy
- Resolution: 0.1°F/0.1°C for both measurements
Humidity Measurement Lutron LM-8010 5-in-1 CMM/CFM Anemometer & Multi-Meter
- Range: 10 to 95% RH
- Accuracy: ±4% RH (<70% RH), ±(4% reading + 1.2% RH) (≥70% RH)
- Resolution: 0.1% RH
Light Measurement
- Auto-ranging: 0 to 20,000 Lux or 0 to 2,000 Ft-cd (foot-candle)
- Resolution: 1 Lux (0-2,200 Lux), 10 Lux (1,800-20,000 Lux)
- Resolution: 0.1 Ft-cd (0-204.0 Ft-cd), 1 Ft-cd (170-2,000 Ft-cd)
- Accuracy: ±5% reading ±8 digits
Technical Specifications
- Display: 8 mm LCD display
- Power: 9V DC battery (006P Heavy duty type) or DC 9V adapter input
- Power consumption: Approx. 6.2 mA
- Operating temperature: 0 to 50°C (32 to 122°F)
- Operating humidity: Max 80% RH
- Weight: 160g (including battery)
- Dimensions: 156 x 60 x 33 mm (6.14 x 2.36 x 1.29 inches)
Package Includes
- LM-8010 5-in-1 measuring instrument Lutron LM-8010 5-in-1 CMM/CFM Anemometer & Multi-Meter
- Instruction manual
Optional Accessories Lutron LM-8010 5-in-1 CMM/CFM Anemometer & Multi-Meter
- Carrying cases: CA-05A, CA-52A, CA-06
- Temperature probes (Type K):
- TP-01: Ultra-fast response naked-bead thermocouple (max 300°C/572°F)
- TP-02A: 10cm tube, 3.2mm diameter (-50°C to 900°C)
- TP-03: 10cm tube, 8mm diameter (-50°C to 1200°C)
- TP-04: Surface temperature probe (-50°C to 400°C)
