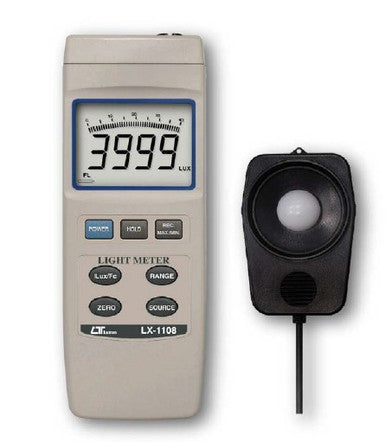

Lutron LX-1108 4-Light Type Digital Light Meter
Lutron LX-1108 Professional Digital Light Meter with 4-Light Type Selection
The Lutron LX-1108 is an advanced digital light meter designed for professional light measurement across various lighting technologies. This ISO-9001, CE, and IEC1010 certified instrument delivers exceptional accuracy with 5 measurement ranges spanning from 0.01 Lux to 400,000 Lux, making it the ideal choice for lighting professionals, photographers, safety inspectors, and researchers who require precise illuminance readings for different light sources.Key Features & Benefits Lutron LX-1108 4-Light Type Digital Light Meter
- 4-Light Type Selection - Specialized calibration for Tungsten, Fluorescent, Sodium, and Mercury light sources
- Wide Measurement Range - 5 selectable ranges: 40.00/400.0/4,000/40,000/400,000 Lux for comprehensive light measurement
- High Resolution - Precise readings from 0.01 Lux to 100 Lux (0.01 Ft-cd to 10 Ft-cd)
- Professional Certification - ISO-9001, CE, and IEC1010 certified for guaranteed quality and safety
- Advanced Sensor Technology - Exclusive photodiode with color correction filter matching C.I.E. photopic standard
- Cosine Correction - Sensor meets cosine angular incidence standards for accurate readings at different angles
- Separate Light Sensor - Detachable sensor allows for optimal positioning during measurement
- Dual Unit Display - Switch between Lux and Foot-candle (Ft-cd) measurements
- Large LCD Display - Clear 52 x 38 mm screen with 4 digits and bargraph indicator
- Data Hold Function - Freeze current readings for easy recording
- Peak Hold - Capture and hold maximum light intensity peaks
- Memory Function - Store maximum and minimum values with recall capability
- Zero Adjustment - External adjustment button for calibration (40.00 Lux range only)
- Auto Power Off - Conserves battery life with optional manual power off
- RS-232 Output - Computer interface for data logging and analysis
- Water-Resistant Panel - Front panel protection for durability in various environments
- Rubber Function Keys - User-friendly, durable operation
- Low Battery Indicator - Built-in warning system when replacement is needed
- Compact Design - Lightweight (220g/0.48 LB) and portable for field use
Technical Specifications Lutron LX-1108 4-Light Type Digital Light Meter
| Parameter | Specification |
|---|---|
| Model | Lutron LX-1108 |
| Display | Large LCD display, 52 x 38 mm, 4 digits with bargraph indicator |
| Measurement Ranges | 5 ranges: 40.00/400.0/4,000/40,000/400,000 Lux |
| Units | Lux, Foot-candle (Ft-cd) |
| Light Type Selection | Tungsten, Fluorescent, Sodium, Mercury lamp |
| Sensor | Exclusive photodiode & color correction filter, spectrum meets C.I.E. photopic standard |
| Zero Adjustment | External adjustment by pushing button (40.00 Lux range only) |
| Data Functions | Peak Hold, Data Hold, Memory (Max & Min) with Recall |
| Range Indication | Over range: "- - - -", Under range: "_ _ _ _" |
| Power Off | Auto or manual power off |
| Data Output | RS-232 serial data output |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Operating Humidity | Max. 80% RH |
| Power Supply | DC 9V battery, 006P, MN1604 (PP3) or equivalent |
| Power Consumption | Approx. DC 8 mA |
| Weight | 220 g/0.48 LB |
| Dimensions | Main instrument: 200 x 68 x 30 mm (7.9 x 2.7 x 1.2 inch) Sensor probe: 82 x 55 x 7 mm (3.2 x 2.2 x 0.3 inch) |
| Accessories Included | Instruction Manual (1 PC), Light Sensor with protection cover (1 PC) |
| Optional Accessories | RS232 cable (UPCB-02), USB cable (USB-01), Application Software (SW-U801-WIN), Hard carrying case (CA-06), Soft carrying case (CA-05A) |
Measurement Accuracy
Lux Measurement Lutron LX-1108 4-Light Type Digital Light Meter
| Range | In-range Display | Resolution | Accuracy |
|---|---|---|---|
| 40.00 Lux | 0 - 40.00 Lux | 0.01 Lux | ±(3% rdg + 0.5% F.S.) |
| 400.0 Lux | 36.0 - 400.0 Lux | 0.1 Lux | |
| 4,000 Lux | 360 - 4,000 Lux | 1 Lux | |
| 40,000 Lux | 3,600 - 40,000 Lux | 10 Lux | |
| 400,000 Lux | 10,000 - 400,000 Lux | 100 Lux | <100,000 Lux: ±(3% rdg + 0.5% F.S.) ≥100,000 Lux: for reference only |
Foot-candle (Fc) Measurement Lutron LX-1108 4-Light Type Digital Light Meter
| Range | In-range Display | Resolution | Accuracy |
|---|---|---|---|
| 4.000 Fc | 0 - 3.720 Fc | 0.001 Fc | ±(3% rdg + 0.5% F.S.) |
| 40.00 Fc | 3.35 - 37.20 Fc | 0.01 Fc | |
| 400.0 Fc | 33.5 - 372.0 Fc | 0.1 Fc | |
| 4,000 Fc | 335 - 3,720 Fc | 1 Fc | |
| 40,000 Fc | 930 - 37,200 Fc | 10 Fc | <9,300 Fc: ±(3% rdg + 0.5% F.S.) ≥9,300 Fc: for reference only |
4-Light Type Selection: A Unique Advantage
The LX-1108's standout feature is its specialized 4-light type selection capability, which allows for accurate measurements across different lighting technologies:| Light Type | Description | Common Applications |
|---|---|---|
| Tungsten | Traditional incandescent lighting with warmer color temperature | Residential lighting, photography studios, theatrical lighting |
| Fluorescent | Gas-discharge lighting with different spectral characteristics | Office spaces, commercial buildings, schools, retail environments |
| Sodium | High/low pressure sodium vapor lighting with distinctive yellow spectrum | Street lighting, security lighting, industrial facilities, warehouses |
| Mercury | Mercury vapor lighting with blue-green spectrum | Industrial spaces, gymnasiums, parking lots, outdoor area lighting |
Applications
Professional Photography & Videography Lutron LX-1108 4-Light Type Digital Light Meter
- Mixed Lighting Environments - Accurately measure different light sources in the same setting
- Studio Setup - Precisely calibrate tungsten lighting for portrait and product photography
- Location Shoots - Evaluate ambient fluorescent, sodium, or mercury lighting before setting up
- Cinematography - Ensure consistent lighting across scenes with different light sources
- Light Continuity - Monitor lighting consistency during extended shoots with changing conditions
Architectural & Environmental Lighting Lutron LX-1108 4-Light Type Digital Light Meter
- Building Commissioning - Verify various lighting installations meet design specifications
- Lighting Retrofits - Compare illumination levels before and after upgrading lighting systems
- Mixed-Use Spaces - Measure different lighting technologies throughout diverse environments
- Outdoor Lighting Assessment - Accurately evaluate sodium and mercury vapor street lighting
- Energy Efficiency Audits - Document illumination levels across different lighting technologies
Industrial & Workplace Safety Lutron LX-1108 4-Light Type Digital Light Meter
- OSHA Compliance - Verify illumination meets workplace safety standards in varied lighting
- Manufacturing Facilities - Ensure adequate lighting across production areas with different light types
- Quality Control - Maintain optimal lighting for inspection processes under specific light sources
- Emergency Lighting Testing - Validate emergency illumination systems
- Mixed Industrial Environments - Measure both indoor fluorescent and outdoor sodium/mercury lighting
Research & Education Lutron LX-1108 4-Light Type Digital Light Meter
- Lighting Technology Studies - Compare illumination efficiency across different light sources
- Horticultural Research - Measure light intensity for plant growth under various light types
- Environmental Impact Studies - Document lighting levels from different technologies
- Educational Demonstrations - Teach principles of illumination with various light sources
- Light Pollution Research - Measure intensity of different outdoor lighting technologies
Advanced Features Explained
Professional Sensor Technology Lutron LX-1108 4-Light Type Digital Light Meter
The LX-1108 employs an exclusive photodiode with specialized color correction filter that precisely matches the C.I.E. photopic curve—the international standard that corresponds to human eye light response. This ensures the meter measures light intensity as perceived by the human eye rather than just physical radiation, providing more relevant readings for practical applications. The sensor's cosine correction factor standardization further enhances accuracy by accounting for the angle at which light strikes the sensor surface. This means measurements remain consistent even when light comes from different directions, not just perpendicular to the sensor.Five-Range Measurement System Lutron LX-1108 4-Light Type Digital Light Meter
With its five selectable measurement ranges, the LX-1108 offers exceptional flexibility across the entire spectrum of illumination levels:- 40.00 Lux Range - Ultra-high resolution (0.01 Lux) for measuring very low light levels in emergency lighting, night environments, or dark rooms
- 400.0 Lux Range - Suitable for normal indoor lighting assessment in offices, schools, and homes
- 4,000 Lux Range - Ideal for brighter indoor environments, workplace safety verification, and commercial spaces
- 40,000 Lux Range - Perfect for measuring bright indoor lighting, covered outdoor areas, and partially shaded daylight
- 400,000 Lux Range - Capable of measuring full daylight, direct sunlight, and extremely bright artificial lighting
Advanced Data Functions Lutron LX-1108 4-Light Type Digital Light Meter
The LX-1108 offers several sophisticated data handling features that enhance its utility for professional applications:- Peak Hold - Captures and displays the maximum light intensity detected, particularly useful for measuring flash or pulsed lighting
- Data Hold - Freezes the current reading on the display for easy recording, especially helpful in hard-to-reach measurement locations
- Memory Function - Stores maximum and minimum values during a measurement session, with recall capability to review the range of illumination detected
- RS-232 Data Output - Connect to computers for real-time data logging, extended monitoring, or integration with other measurement systems
- Optional USB Connectivity - Available with the optional USB-01 cable for modern computer connections
Recommended Light Levels Across Different Light Sources
The Lutron LX-1108's 4-light type selection capability is especially valuable when verifying that different lighting technologies meet recommended standards:| Environment | Recommended Illuminance | Common Light Source |
|---|---|---|
| Warehouses, Corridors | 100-200 Lux | Sodium or Mercury |
| General Office Areas | 300-500 Lux | Fluorescent |
| Detailed Office Work | 500-750 Lux | Fluorescent |
| Photography Studios | 750-1,500 Lux | Tungsten or Fluorescent |
| Precision Assembly | 1,000-2,000 Lux | Fluorescent or Tungsten |
| Detailed Inspection | 2,000-5,000 Lux | Fluorescent or Tungsten |
| Outdoor Parking | 20-50 Lux | Sodium or Mercury |
| Street Lighting | 5-30 Lux | Sodium |
| Retail Display Areas | 750-1,500 Lux | Mixed (Tungsten & Fluorescent) |
| Sports Facilities | 300-750 Lux | Mercury or Fluorescent |
Operating Instructions Lutron LX-1108 4-Light Type Digital Light Meter
- Power On - Turn on the meter and allow it to stabilize
- Light Type Selection - Choose the appropriate light source type (Tungsten, Fluorescent, Sodium, or Mercury)
- Range Selection - Select the appropriate measurement range based on expected illumination level
- Unit Selection - Choose between Lux or Foot-candle (Ft-cd) display
- Zero Adjustment - If using the 40.00 Lux range, perform zero adjustment in a dark environment using the adjustment button
- Sensor Positioning - Place the light sensor in the location where you want to measure illumination
- Reading - Observe the measurement on the LCD display and the bargraph indicator
- Data Functions - Use Data Hold to freeze readings, Peak Hold to capture maximum values, or Memory function to store min/max readings
- Data Output - If required, connect to a computer via optional RS-232 or USB cable for data logging
- Power Off - Turn off manually or allow auto power off to conserve battery
Maintenance Tips Lutron LX-1108 4-Light Type Digital Light Meter
- Sensor Care - Keep the photodiode sensor clean and protected with the included cover when not in use
- Battery Management - Replace the 9V battery when the low battery indicator appears
- Calibration - Perform occasional zero adjustment using the adjustment button to maintain accuracy
- Storage - Store in a dry, dust-free environment away from direct sunlight
- Cleaning - Use a soft, dry cloth to clean the meter body and display; avoid solvents
- Water Resistance - While the front panel is water-resistant, avoid exposing the entire instrument to moisture
Included and Optional Accessories
Standard Included Accessories Lutron LX-1108 4-Light Type Digital Light Meter
- Light Sensor with Protection Cover - The high-quality sensor module with protective cap to prevent damage when not in use
- Instruction Manual - Comprehensive guide to operation, specifications, and maintenance
Optional Accessories Lutron LX-1108 4-Light Type Digital Light Meter
- RS232 Cable (UPCB-02) - Connect the meter to a computer for data logging and analysis
- USB Cable (USB-01) - Modern computer connection option for data transfer
- Application Software (SW-U801-WIN) - Windows-compatible software for data capture and analysis
- Hard Carrying Case (CA-06) - Durable protective case for secure transportation and storage
- Soft Carrying Case (CA-05A) - Lightweight pouch for convenient carrying and protection
About Lutron Electronic Lutron LX-1108 4-Light Type Digital Light Meter
Lutron Electronic is a leading manufacturer of professional test and measurement instruments with ISO-9001 certification. Their comprehensive product range includes light meters, sound level meters, environmental meters, and various other precision measuring devices for industrial, commercial, educational, and research applications. With a focus on quality, innovation, and usability, Lutron instruments are trusted by professionals worldwide for their accuracy, reliability, and value.Comparison with Standard Light Meters Lutron LX-1108 4-Light Type Digital Light Meter
| Feature | Lutron LX-1108 | Standard Light Meters |
|---|---|---|
| Light Type Selection | 4 types (Tungsten, Fluorescent, Sodium, Mercury) | Typically single calibration (usually Tungsten) |
| Measurement Range | 0.01 to 400,000 Lux (5 ranges) | Typically narrower range with fewer selection options |
| Resolution | As fine as 0.01 Lux | Often limited to 1 Lux or 0.1 Lux minimum |
| Accuracy | ±(3% rdg + 0.5% F.S.) | Typically ±5% or less accurate |
| Data Functions | Peak Hold, Data Hold, Min/Max Memory | Often limited to basic Data Hold only |
| Computer Interface | RS-232 and optional USB | Rarely available in mid-range meters |
| Display | Large LCD with bargraph | Basic numeric display only |
| Sensor Design | Separate for optimal positioning | Often integrated into meter body |
Why Choose the Lutron LX-1108?
Unmatched Versatility Across Light Sources Lutron LX-1108 4-Light Type Digital Light Meter
The LX-1108's unique 4-light type selection capability sets it apart from standard light meters. By providing calibrated measurements for Tungsten, Fluorescent, Sodium, and Mercury lighting, this meter delivers accurate readings regardless of the light source—a critical feature in environments with mixed lighting technologies or for professionals who work across different settings.Superior Measurement Range & Accuracy Lutron LX-1108 4-Light Type Digital Light Meter
With five selectable ranges spanning from ultra-low light (0.01 Lux resolution) to extremely bright conditions (up to 400,000 Lux), the LX-1108 offers exceptional versatility. The ±3% accuracy is superior for its class, ensuring reliable measurements for critical applications across all selected light types.Advanced Professional Features Lutron LX-1108 4-Light Type Digital Light Meter
The comprehensive data functions—including Peak Hold, Data Hold, and Memory with Min/Max recall—provide capabilities typically found only in more expensive instruments. The RS-232 computer interface with optional USB connectivity extends functionality for data logging and analysis, making this meter suitable for research and documentation requirements.Quality Construction & International Certification Lutron LX-1108 4-Light Type Digital Light Meter
With ISO-9001, CE, and IEC1010 certifications, the LX-1108 meets international quality and safety standards. The water-resistant front panel, rubber function keys, and durable construction ensure reliability in various environments, while the separate light sensor design allows for optimal measurement positioning.Summary Lutron LX-1108 4-Light Type Digital Light Meter
The Lutron LX-1108 Professional Digital Light Meter with 4-Light Type Selection represents the pinnacle of versatility and accuracy in illuminance measurement. Its unique ability to calibrate readings for Tungsten, Fluorescent, Sodium, and Mercury light sources ensures precise measurements across various lighting technologies, making it the ideal instrument for professionals who work with multiple light types. Lutron LX-1108 4-Light Type Digital Light Meter With five measurement ranges spanning from 0.01 Lux to 400,000 Lux, high-quality sensor technology, and comprehensive data handling capabilities, the LX-1108 is suitable for virtually any illumination measurement application. The separate sensor design, large LCD display with bargraph, and user-friendly interface make it easy to use in various environments. Whether you're a lighting designer evaluating mixed lighting installations, a photographer working across different light sources, a safety inspector verifying workplace illumination standards in varied facilities, or a researcher studying different lighting technologies, the Lutron LX-1108 provides the specialized capabilities, precision, and reliability needed for accurate light intensity assessment across all common lighting types. Lutron LX-1108 4-Light Type Digital Light Meter Manufactured by Lutron Electronic, a recognized leader in test and measurement instruments, and certified to ISO-9001, CE, and IEC1010 standards, the LX-1108 offers professional-grade features at a competitive price point, making it an excellent investment for any professional requiring reliable illuminance measurements across different lighting technologies.Product overview
