LUTRON pH 208 with RS232

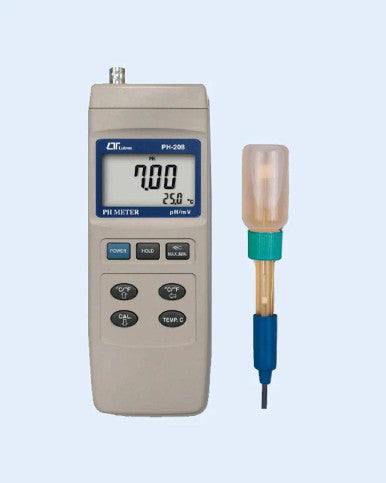

LUTRON pH-208 Professional pH/mV Meter with RS232 Interface
The LUTRON pH-208 is a versatile and professional handheld meter designed for accurate pH and millivolt (mV) measurements in a wide range of applications, from laboratory analysis to field water quality testing. Its combination of precision, user-friendly features, and data output capability makes it an ideal tool for professionals who require reliable and documentable results. The meter provides dual-parameter functionality, measuring pH across the full 0 to 14 range with a fine 0.01 pH resolution, and mV from -1999 to 1999 mV. This allows it to be used with an optional ORP (Oxidation-Reduction Potential) electrode to function as a complete ORP meter. A key feature of the pH-208 is its RS232 computer interface, which enables the user to connect the meter to a PC for data logging, further analysis, and record-keeping, ensuring excellent data management. LUTRON pH 208 with RS232 Accuracy is ensured through a simple, push-button calibration process for three points (pH 4, 7, and 10). The meter supports both manual temperature compensation (0-100°C) and Automatic Temperature Compensation (ATC) with an optional temperature probe (like the TP-07), which automatically corrects pH readings for temperature variance to ensure the highest accuracy. Housed in a durable, lightweight ABS-plastic case, the pH-208 is built for both portability and longevity. It features a large, dual-function LCD, a data hold function to freeze readings, and a min/max memory recall. The universal BNC connector makes it compatible with a wide variety of pH and ORP electrodes. LUTRON pH 208 with RS232 Key Features:- Dual Measurement: Measures both pH (0 to 14 pH) and mV (-1999 to 1999 mV).
- RS232 Data Output: Allows for direct connection to a computer for data logging and analysis.
- High Resolution: Displays readings with a precision of 0.01 pH and 1 mV.
- Three-Point Calibration: Easy push-button calibration for pH 4, 7, and 10 ensures linearity and accuracy.
- Temperature Compensation: Supports both manual adjustment and Automatic Temperature Compensation (ATC) with an optional probe. LUTRON pH 208 with RS232
- Data Functions: Includes data hold and a function to record and recall maximum and minimum readings.
- Auto Power-Off: Saves battery life by automatically shutting down when not in use.
- Universal BNC Connector: Compatible with any standard pH or ORP electrode with a BNC fitting.
Product Specifications LUTRON pH 208 with RS232
| Specification | Detail |
|---|---|
| Model | LUTRON pH-208 |
| Parameters Measured | pH, millivolts (mV) |
| pH Range | 0 to 14.00 pH |
| mV Range | -1999 to 1999 mV |
| Resolution | 0.01 pH, 1 mV |
| Accuracy | ± (0.02 pH + 2 digits) |
| Data Output | RS-232 Computer Serial Interface |
| Temperature Compensation | Manual (0-100°C) or Automatic (0-65°C with optional TP-07 probe) |
| Power Supply | 9V Battery (006P) |
| Display | 51 x 32 mm dual-function LCD |
| Dimensions | 195 x 68 x 30 mm |
| Weight | 250 g (0.55 lb) including battery |
- Water conditioning and aquariums
- Beverage industry and food processing
- Laboratory and educational use
- Environmental monitoring
- Industrial process control
