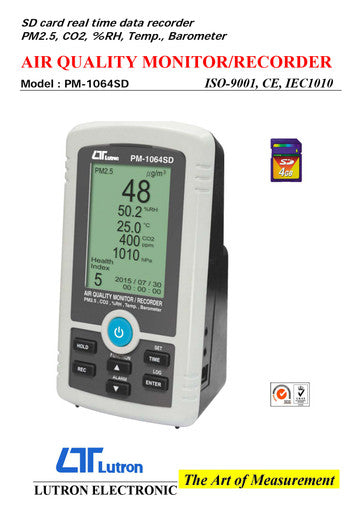

Lutron PM-1064SD Professional 5-in-1 Air Quality Monitor
The Lutron PM-1064SD is an elite-grade indoor air quality testing platform designed to evaluate and log critical atmospheric metrics concurrently. This professional-grade instrument combines advanced sensory hardware to track PM2.5 particulate matter, Carbon Dioxide (CO2), relative humidity, ambient temperature, and barometric pressure inside a singular hand-held or desktop unit. Manufactured under strict ISO-9001 protocols and bearing full CE certification, this monitoring tool ensures scientific reliability for regulatory compliance audits, academic research, industrial workspace evaluations, and high-performance HVAC troubleshooting pipelines.
At the center of its technical architecture sits an expansive SD card data logging matrix that changes data management workloads. Instead of requiring proprietary communication software suites, the device writes time-stamped environmental entries directly onto removable SD media (1GB to 32GB capacities). This enables lab technicians and field engineers to slot the storage card into standard PC workstations and instantly parse analytical records through spreadsheet programs like Microsoft Excel. The adjustable sampling mechanism allows for granular data capture down to 2 seconds or extended, long-term trend logging intervals stretching up to 3600 seconds.
Equipped with a large, high-contrast backlit dot matrix LCD display, the PM-1064SD provides immediate visibility over shifting air compositions. It calculates real-time PM2.5 time-weighted averages alongside a proactive Health Index score ranging from 0 to 9. Integrated programmable alarms immediately notify operators via audible chimes when target PM2.5 or CO2 threshholds are crossed. Powered flexibly via standard AA battery arrays or an included 9V DC desktop wall adapter, the Lutron PM-1064SD stands as a complete solution for detecting structural pollution from industrial exhaust, commercial kitchen smoke, localized particulate dust, and inadequate indoor air exchange rates.
Technical Specifications
| Feature / Parameter | Technical Specifications & Range Details |
|---|---|
| Monitored Parameters | PM2.5, Carbon Dioxide (CO2), Humidity, Temperature, Barometric Pressure |
| PM2.5 Measurement | Range: 0 to 250 μg/m³ | Resolution: 1 μg/m³ | Accuracy: ±(10% reading + 20 μg/m³) |
| CO2 Measurement | Range: 0 to 10,000 ppm | Resolution: 1 ppm Accuracy: • ≤1,000 ppm: ±40 ppm • 1,001 to 3,000 ppm: ±(50 ppm + 3% of reading) • 3,001 to 10,000 ppm: ±(50 ppm + 5% of reading) |
| Relative Humidity | Range: 5% to 95% RH | Resolution: 0.1% RH | Accuracy: ±3% RH (for <70% RH) |
| Temperature Range | Range: 0°C to 50°C (32°F to 122°F) | Resolution: 0.1°C / 0.1°F | Accuracy: ±0.8°C / ±1.5°F |
| Barometric Pressure | Units: hPa, mmHg, inHg Ranges: 10.0 to 1100 hPa | 7.5 to 825.0 mmHg | 0.29 to 32.48 inHg Accuracy: ±1.5 hPa (10.0-999.9 hPa), ±2 hPa (1000-1100 hPa) |
| Data Logger Capability | Real-time SD Memory Card Logging (Supports 1 GB to 32 GB cards) |
| Sampling Time Interval | Adjustable from 2 seconds up to 3600 seconds (1 hour) auto-logging |
| Manual Data Logging | Manual trigger option featuring custom location tagging (Positions 1 to 99) |
| Built-in Features | Data Hold, Max/Min recall, Clock, Calendar, PM2.5 Time-Weighted Average |
| Display System | Dot Matrix LCD with Backlight (128 x 240 pixels | 55.4 x 72.9 mm) |
| Output Interfaces | RS232 and USB computer interfaces for streaming configurations |
| Certifications | ISO-9001 Quality System Assured, CE Compliance Passed |
| Power Architecture | 6 x 1.5V AA batteries or standard included AC-to-DC 9V Power Adapter |
| Physical Dimensions | 164 x 93 x 72 mm (6.5 x 3.7 x 2.8 inches) | System Weight: 385g (0.85 lbs) |
Core Features & User Benefits
- 5-in-1 Environmental Analysis Consolidates separate air testing devices into one streamlined instrument tracking PM2.5, Carbon Dioxide, humidity, temperature, and atmospheric pressure.
- Software-Free Excel Data Integration Logs absolute data streams directly to an SD card with real-time time-stamping, letting you open files directly in Excel without installing complex software.
- Intelligent Alarms & Health Index Calculates PM2.5 time-weighted averages alongside a 0-9 Health Index score, flashing customizable audible warnings during unsafe spike events.
- High-Capacity Manual Point Tagging Supports localized mapping routes across 99 distinct physical areas, making it ideal for walking audits across vast commercial real estate complexes.
- Dual Power Adaptability Ensures seamless data collection with a desktop 9V AC power cord for multi-week indoor logs, plus AA battery capabilities for portable field audits.
- Backlit Dot-Matrix Legibility An expansive 55mm x 72mm screen renders dual numerical lines alongside interactive operational icons clearly, even in dark HVAC plenums or mechanical spaces.
