Product Overview & Compliance:

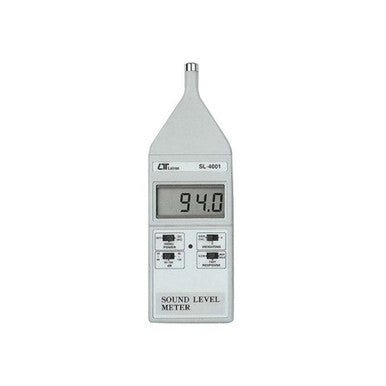

The Lutron Model SL-4001 Sound Level Meter is a professional instrument designed for high accuracy sound level measurement, adhering to IEC 651 type 2 standards. Manufactured under ISO-9001 certification and marked with CE and IEC1010 compliance, this meter is reliable for various acoustic monitoring applications. It is built with durable, long-lasting components housed within a strong, light weight ABS-plastic casing, supporting easy one-hand operation due to its small and portable design.
Advanced Measurement Capabilities:
The SL-4001 offers versatile operational functions including A and C frequency weighting, Max. hold, and selectable Fast and Slow time weighting modes.
• Frequency Weighting:
◦ A Weighting: This characteristic is simulated to match the "Human Ear Listing" response and is typically selected when making environmental sound level measurements.
◦ C Weighting: This characteristic is near the "FLAT" response, making it suitable for checking the noise of machinery (Quality Control checks) and determining the sound pressure level of tested equipment.
• Time Weighting (Fast & Slow):
◦ Fast (t = 200 ms): Simulates the human ear response time weighting.
◦ Slow (t = 500 ms): Makes it easier to obtain the average values of vibration sound level.
• High Accuracy Microphone: The unit utilizes an electric condenser microphone (1/2 inch standard size) known for its high accuracy and long-term stability.
• Calibration: The meter includes a built-in adjustable VR for easy external calibration using a screw driver, supported by an internal oscillation system generating a 1 KHz sine wave.
System Integration and Display:
The SL-4001 features an 18mm (0.7") LCD display (3 1/2 digits) which provides a clear read-out even in bright ambient light conditions and features low power consumption. Essential functions include a Max. Hold feature to store the maximum measured value on display, and a warning indicator for over and under load conditions.
For system expansion, the unit provides AC/DC output capabilities via a 3.5 phone output terminal. This allows connection to an analyzer, level recorder, or tape recorder for data logging and detailed analysis.

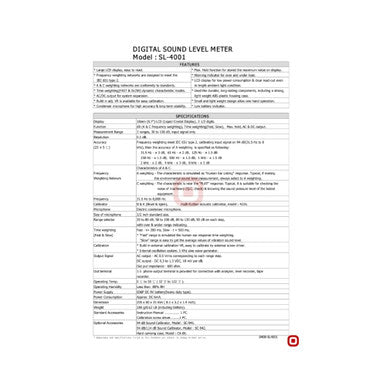

Technical Specifications (Model SL-4001):
|
Feature
|
Specification
|
|
Model
|
SL-4001 (Lutron Electronic)
|
|
Compliance
|
IEC 651, Type 2; ISO-9001; CE; IEC1010
|
|
Display
|
18mm (0.7") LCD, 3 1/2 digits
|
|
Measurement Range
|
30 dB to 130 dB (3 ranges)
|
|
Range Steps
|
30 to 80 dB, 50 to 100 dB, 80 to 130 dB (50 dB steps)
|
|
Resolution
|
0.1 dB
|
|
Frequency Range
|
31.5 Hz to 8,000 Hz
|
|
Frequency Weighting
|
A and C networks
|
|
Time Weighting
|
Fast (200 ms) and Slow (500 ms) dynamic characteristics
|
|
Microphone
|
Electric condenser microphone, 1/2 inch standard size
|
|
Accuracy
|
Meets IEC 651 type 2 standards (e.g., ± 1.5 dB at 500 Hz to 1 kHz for A weighting)
|
|
Output Signal (AC)
|
0.5 Vrms corresponding to each range step
|
|
Output Signal (DC)
|
0.3 to 1.3 VDC (10 mV per dB)
|
|
Output Impedance
|
600 ohm
|
|
Operating Temperature
|
0 ℃ to 50 ℃ (32 ℉ to 122 ℉)
|
|
Operating Humidity
|
Less than 80% RH
|
|
Power Supply
|
006P DC 9V battery (heavy duty type)
|
|
Power Consumption
|
Approx. DC 6mA
|
|
Dimensions
|
205 x 80 x 35 mm (8.1 x 3.2 x 1.4 inch)
|
|
Weight
|
280 g / 0.62 LB (including battery)
|
Included and Optional Accessories:
Standard Accessories:
• Instruction Manual
• Calibration screw driver
Optional Accessories (Sound Calibrators):
• 94 dB Sound Calibrator, Model: SC-941
• 94 dB/114 dB Sound Calibrator, Model: SC-942
• Compatible with B & K (Bruel & kjaer) multi-function acoustic calibrator, model: 4226
