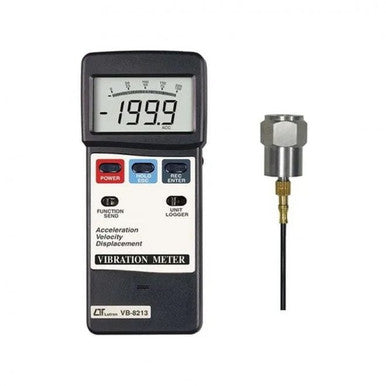

LUTRON VB-8213 Vibration Meter – Professional Data Logging Vibration Analysis Instrument
The LUTRON VB-8213 Vibration Meter is a professional-grade portable vibration analysis instrument engineered for predictive maintenance, industrial equipment monitoring, machine diagnostics, and condition-based maintenance applications. Designed for maintenance engineers, industrial technicians, HVAC professionals, and manufacturing facilities, the VB-8213 combines high-accuracy vibration measurement with advanced 500-point data logging functionality for long-term trend analysis and preventive maintenance planning.
This advanced vibration meter supports velocity, acceleration, and displacement measurement, allowing users to detect imbalance, bearing wear, shaft misalignment, looseness, and mechanical deterioration before catastrophic equipment failure occurs. The instrument provides RMS, Peak, and Max Hold readings for comprehensive vibration evaluation across a wide range of industrial machinery and rotating equipment.
The VB-8213 features an exclusive microcomputer circuit design that enhances measurement stability and accuracy while maintaining compliance with ISO 2954 vibration monitoring standards. Its large LCD display with integrated bar graph visualization ensures clear readability even in demanding industrial environments.
Equipped with an integrated 500-point data logger, adjustable sampling intervals, and RS232 computer interface capability, the VB-8213 enables efficient vibration trend recording, maintenance documentation, and predictive analysis. The included vibration sensor probe, magnetic mounting base, rugged carrying case, and optional software integration make it a complete portable vibration monitoring solution for field and plant maintenance operations.
Widely used across manufacturing plants, HVAC systems, pumps, compressors, motors, generators, conveyors, and rotating machinery applications, the LUTRON VB-8213 offers an ideal combination of portability, reliability, and advanced industrial vibration analysis performance.
Technical Specifications
| Feature | Details |
|---|---|
| Product Type | Professional Vibration Meter with Data Logger |
| Model | VB-8213 |
| Measurement Types | Velocity, Acceleration, Displacement |
| Value Modes | RMS, Peak, Max Hold |
| Frequency Range | 10 Hz to 1 kHz |
| Accuracy | ±(5% + 2d) at 160 Hz, 80 Hz, 23±5°C |
| Acceleration Range | 0.5 to 199.9 m/s² |
| Velocity Range | 0.5 to 199.9 mm/s |
| Displacement Range | 1.999 mm Peak-to-Peak |
| Data Logging Capacity | 500 Readings |
| Sampling Intervals | Manual, 1, 2, 10, 30, 60, 600, 1800, 3600 Seconds |
| Display Type | 52mm × 38mm LCD with Bar Graph |
| Digit Size | 16mm Super Large Display |
| Data Output | RS232 Serial Output |
| Special Functions | Data Hold, Max/Min Recall, Peak Measurement |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | Less than 80% RH |
| Power Supply | 9V Battery |
| Auto Power Off | Yes |
| Main Unit Dimensions | 180 × 72 × 32 mm |
| Main Unit Weight | 230g |
| Sensor Weight | 38g |
| Compliance Standards | ISO-9001, CE, IEC1010, ISO 2954 |
| Applications | Industrial Machinery, Motors, Pumps, HVAC, Compressors, Conveyors, Rotating Equipment |
Core Features & Benefits
The LUTRON VB-8213 Vibration Meter is designed to improve predictive maintenance efficiency, reduce machine downtime, and support accurate industrial vibration diagnostics.
- Advanced Triple Measurement Capability Simultaneously analyze acceleration, velocity, and displacement to diagnose multiple machine vibration conditions including imbalance, misalignment, and looseness.
- Integrated 500-Point Data Logger Store long-term vibration records for trend analysis, predictive maintenance scheduling, reporting, and equipment condition monitoring.
- Professional RMS, Peak & Max Hold Analysis Comprehensive vibration evaluation modes improve fault detection accuracy for industrial rotating machinery and critical plant equipment.
- Large Industrial LCD Display Super-large LCD screen with bar graph indicator ensures excellent readability during field inspections and plant maintenance operations.
- RS232 Computer Interface Easily transfer vibration data to external systems for advanced analysis, documentation, and maintenance reporting.
- Portable Field-Ready Design Compact lightweight housing, magnetic mounting base, and carrying case make the VB-8213 ideal for on-site industrial maintenance work.
- Predictive Maintenance Support Detect bearing wear, shaft imbalance, looseness, and machine deterioration early to minimize expensive downtime and repair costs.
- Industrial Compliance Standards Manufactured according to ISO-9001, CE, IEC1010, and ISO 2954 standards for dependable professional vibration monitoring performance.
Frequently Asked Questions (FAQ)
What is the LUTRON VB-8213 Vibration Meter used for?
The LUTRON VB-8213 Vibration Meter is used for industrial vibration analysis, predictive maintenance, machine condition monitoring, and fault detection in rotating machinery. It helps maintenance teams identify imbalance, bearing wear, shaft misalignment, and mechanical looseness before equipment failure occurs.
This professional vibration meter is widely used in manufacturing plants, HVAC systems, pumps, motors, compressors, generators, and industrial maintenance departments requiring accurate vibration diagnostics.
Does the VB-8213 support vibration data logging?
The LUTRON VB-8213 includes a built-in 500-point data logging system that allows users to record vibration measurements over extended monitoring periods. This functionality supports predictive maintenance programs, trend analysis, equipment performance tracking, and industrial maintenance reporting.
The instrument also supports adjustable sampling intervals from manual logging up to 3600-second automated recording intervals.
What vibration parameters can the VB-8213 measure?
The VB-8213 measures acceleration, velocity, and displacement vibration parameters using RMS, Peak, and Max Hold measurement modes. These multiple analysis capabilities help maintenance professionals detect different mechanical vibration problems accurately.
The instrument supports both metric and imperial measurement units for international industrial compatibility and maintenance flexibility.
Which industries commonly use the LUTRON VB-8213?
The LUTRON VB-8213 Vibration Meter is commonly used in manufacturing industries, HVAC maintenance, power plants, machinery maintenance, automotive production, fluid handling systems, and industrial equipment servicing operations.
It is especially effective for monitoring motors, compressors, pumps, conveyors, turbines, generators, and rotating mechanical systems.
Is the VB-8213 suitable for predictive maintenance programs?
The VB-8213 is specifically designed for predictive maintenance and condition-based monitoring applications. Its data logging, vibration trend analysis, and multi-parameter measurement functions help reduce unexpected downtime and improve maintenance scheduling efficiency.
By detecting abnormal vibration patterns early, facilities can reduce repair costs, extend equipment lifespan, and improve operational reliability.
