Manometer digital PM9100

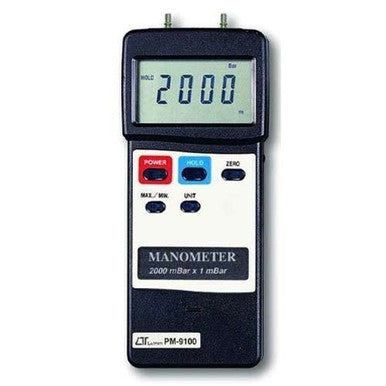

Lutron PM-9100 Digital Manometer
The Lutron PM-9100 is a versatile and robust handheld digital manometer designed for a wide range of applications, including industrial, laboratory, HVAC, and medical settings. It excels at measuring gauge and differential pressure for dry, non-corrosive, and non-ionic gases; it is not suitable for liquids. Its microprocessor-based design ensures high accuracy and provides a suite of advanced features for professional use. Manometer digital PM9100 A key feature of the PM-9100 is its dual and differential input capability, allowing users to measure the pressure difference between two points. The instrument has a wide measurement range of up to ±2000 mbar (2 bar) with a resolution of 1 mbar. The PM-9100 is exceptionally user-friendly, featuring a large LCD screen with contrast adjustment for clear viewing. For maximum flexibility, the device can display measurements in 8 different units, which can be easily selected via a push button on the front panel. Selectable Measurement Units and Range/Resolution: Manometer digital PM9100- mbar: ±2000 mbar x 1 mbar
- psi: ±29 psi x 0.02 psi
- kg/cm²: ±2.040 kg/cm² x 0.001 kg/cm²
- inch Hg: ±59.05 inHg x 0.05 inHg
- mm Hg: ±1500 mmHg x 1 mmHg
- inch H₂O: ±802.0 inH₂O x 0.5 inH₂O
- meter H₂O: ±20.40 mH₂O x 0.01 mH₂O
- Atmosphere: ±1.974 atm x 0.001 atm
- Dual & Differential Input: Measures pressure from two different sources simultaneously.
- Multi-Unit Display: Offers 8 selectable units of pressure to suit various industry standards. Manometer digital PM9100
- Data Hold & Memory: Features a data hold function to freeze the current reading and can record maximum and minimum values for later recall. Manometer digital PM9100
- Zero Adjustment: A front-panel push button allows for easy zeroing or offsetting of the reading.
- PC Connectivity: Equipped with an RS-232 serial interface for connecting to a computer, enabling its use as a data logger or recorder. Manometer digital PM9100
- User-Friendly Design: Includes a large LCD, auto power-off to conserve battery life, and a low battery indicator.
- Built-in Sensor: The piezoelectric pressure sensor is housed internally for protection.
