Metravi CTG-01 Coating thickness gauge

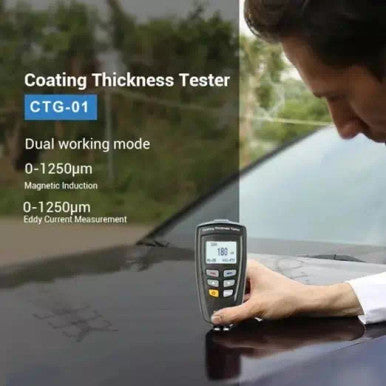

The Metravi CTG-01 Ferrous 0 to 1250 um Non Ferrous 0 to 1250 um Thickness Gauge is a highly sophisticated and indispensable instrument used for precise measurement and analysis of the thickness of coatings on various surfaces. It is a versatile tool that finds applications across diverse industries, including automotive, aerospace, manufacturing, quality control, and corrosion protection. Key features of the Metravi CTG-01 Ferrous 0 to 1250 um Non Ferrous 0 to 1250 um Thickness Gauge include its ability to accurately measure the thickness of coatings such as paint, varnish, plating, and more on substrates made of metal, plastic, or other materials. This gauge is available in various models, including magnetic induction and eddy current types, to cater to different coating thickness measurement needs. One of the standout features of this gauge is its non-destructive testing capability. It allows users to determine coating thickness without damaging the underlying substrate. This non-destructive method is crucial in preserving the integrity of the material being tested, which is particularly important in industries where the structural integrity of components is paramount. The Metravi CTG-01 Ferrous 0 to 1250 um Non Ferrous 0 to 1250 um Thickness Gauge is known for its precision and speed. It delivers accurate readings quickly, ensuring efficiency and accuracy in quality control and manufacturing processes. The gauge typically provides results in real-time, allowing for immediate decisions and adjustments. Furthermore, this gauge offers user-friendly features such as a clear digital display, customizable measurement units (e.g., micrometers, millimeters, mils), and data storage capabilities for recording and analyzing measurements. Some models may also include statistical analysis functions for enhanced quality control. In summary, the Metravi CTG-01 Ferrous 0 to 1250 um Non Ferrous 0 to 1250 um Thickness Gauge is a high-quality and versatile instrument that plays a crucial role in quality control, material testing, and corrosion protection across multiple industries. Its non-destructive testing capability, precision, and efficiency make it an essential tool for professionals who require accurate and reliable coating thickness measurements. Trust Metravi's dedication to quality and innovation with the Coating Thickness Gauge for all your coating measurement needs.

Type of Product	Coating Thickness Gauge
Model No	CTG-01
Range	Ferrous: 0 to 1250 um
Accuracy	0.1μm
Color	Black
Display	Backlit LCD
Resolution	0.1μm
Battery Type	Alkaline
Precision	Ferrous: 0.1 um / 0.001 mils, Non Ferrous: 0.1 um / 0.001 mils

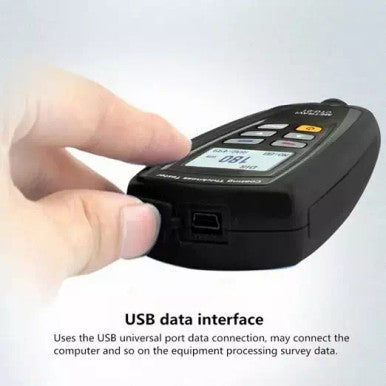

Interface	USB Interface
No of Battery	2
Alarm	High and Low Alarm
Measuring Base Material	Ferrous Material, Non Ferrous Material
Calibration	Self-calibratable
Data Logging	320 readings
Certification	GB/T 4956-1985, GB/T 4957-1985, JB/T 8393-1996, JJG 818-93, JJG 889-95
Power Source	Battery Operated
Battery Size	AA

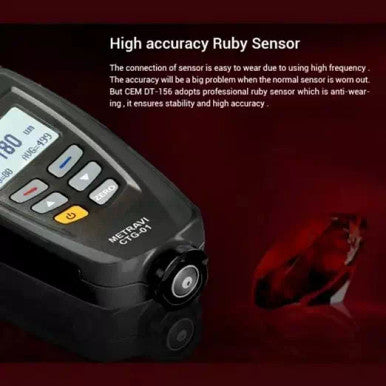

Sensor Type	Ruby Sensor
Indication	Low Battery Indication
