Microprocessor-Based Conductivity TDS Meter 1601

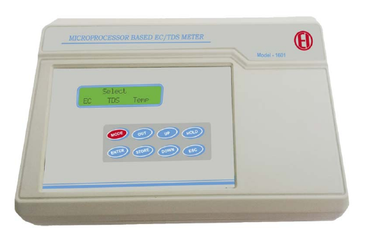

Model 1601 Microprocessor-Based Conductivity/TDS Meter
The Model 1601 Microprocessor-Based Conductivity/TDS Meter is a precision laboratory instrument engineered for accurate conductivity, TDS, and temperature measurements across diverse applications. Manufactured by Environmental and Scientific Instruments Co. (an ISO 9001:2000 certified company), this advanced meter combines cutting-edge microprocessor technology with user-friendly features to deliver exceptional accuracy and reliability.
Key Features & Benefits
- Microprocessor Technology - Latest μp design ensures enhanced accuracy and reproducibility
- Auto-Ranging Capability - Automatically selects optimal measurement range
- Auto Temperature Compensation - Adjusts readings for temperature variations (0-50°C)
- Comprehensive Data Storage - Stores up to 90 samples with memory retention even when powered off
- Printer Compatibility - Connects to any dot matrix printer with Centronics interface
- User-Friendly Interface - 16×2 line alphanumeric LCD display with guidance prompts
- Intuitive Controls - 8 soft-touch membrane keys for simplified operation
- Adjustable Parameters - Customizable cell constant (0.05-10.5) and temperature coefficient (0.1-4.0%)
- Multi-Parameter Measurement - Simultaneously measures conductivity, TDS, and temperature
- 1-Year Warranty - Guaranteed reliability and performance
Technical Specifications Microprocessor-Based Conductivity TDS Meter 1601
| Parameter | Conductivity | TDS | Temperature |
|---|---|---|---|
| Measurement Range | 0-20, 0-200 μS 0-2, 0-20, 0-200 mS |
0-20, 0-200 ppm 0-2, 0-20, 0-200 ppt |
0-100°C |
| Accuracy | ±0.5% FS ±1 Digit | ±1% FS ±1 Digit | ±0.1°C |
| Resolution | 0.01 μS | 0.01 ppm | 0.1°C |
| Range Selection | Automatic | Automatic | - |
| Cell Constant | Adjustable (0.05-10.5) | Adjustable (0.05-10.5) | - |
| Temperature Compensation | Auto/Manual (0-50°C) | Auto/Manual (0-50°C) | - |
| Temperature Coefficient | Adjustable (0.1-4.0%) | Adjustable (0.1-4.0%) | - |
Physical Specifications Microprocessor-Based Conductivity TDS Meter 1601
- Display: 16×2 Line Alphanumeric LCD Display
- Keyboard: 8 Soft-touch membrane type keys
- Printer Interface: Dot-Matrix Printer with Centronics Interface
- Power Supply: 230V ±10% AC, 50 Hz
- Weight: 2.5 Kg (Approx.)
- Instrument Dimensions: 275 × 135 × 85mm (L × W × H)
- Packing Box Dimensions: 320 × 303 × 267mm (L × W × H)
Applications Microprocessor-Based Conductivity TDS Meter 1601
The Model 1601 Conductivity/TDS Meter is extremely versatile, making it ideal for:
- Chemical & Pharmaceutical Industries - Quality control and process monitoring
- Agriculture & Soil Laboratories - Soil and irrigation water analysis
- Water Quality Control - Boiler feed water and municipal water treatment
- Swimming Pools - Maintenance of optimal water conditions
- Fertilizer Plants - Manufacturing process control
- Petroleum Refineries - Water quality monitoring
- Breweries - Process water analysis and product quality
- Water Purification Plants - Treatment effectiveness monitoring
- Research Laboratories - Precision scientific measurements
- Educational Institutions - Teaching laboratory applications
Why Choose the Model 1601? Microprocessor-Based Conductivity TDS Meter 1601
The Model 1601 Microprocessor-Based Conductivity/TDS Meter offers several advantages over conventional meters:
- Superior Accuracy - Advanced microprocessor technology ensures precise measurements
- Data Management - Extensive storage capability with printer connectivity for documentation
- Versatility - Wide measurement ranges suitable for diverse applications
- User Guidance - Built-in prompts assist throughout the measurement process
- Customization - Adjustable parameters for specific measurement requirements
- Quality Assurance - Manufactured by an ISO 9001:2000 certified company
- Premium Packaging - Shipped in shock-proof Styrofoam inside a durable plywood storage box
Included Accessories Microprocessor-Based Conductivity TDS Meter 1601
- Conductivity/TDS Cell
- Temperature Probe
- Dust Cover
- Comprehensive Instruction Manual
- Protective Storage Box
Advanced Technology for Precise Measurements Microprocessor-Based Conductivity TDS Meter 1601
The Model 1601 utilizes the latest in measurement technology to provide reliable results:
- Intelligent Auto-Ranging - Selects the optimal range based on sample conductivity
- Real-Time Temperature Correction - Automatically adjusts readings for temperature variations
- Customizable Temperature Coefficient - Adapt measurements to specific sample types
- High-Resolution Measurement - Detect minute changes in conductivity (0.01 μS) and TDS (0.01 ppm)
- Non-Volatile Memory - Retain stored measurements even during power interruptions
The Model 1601 Microprocessor-Based Conductivity/TDS Meter represents the perfect balance of advanced technology, user-friendly design, and measurement versatility. As an ISO-certified product with comprehensive features and accessories, it delivers exceptional value for laboratories and industrial facilities requiring precise conductivity, TDS, and temperature measurements.
