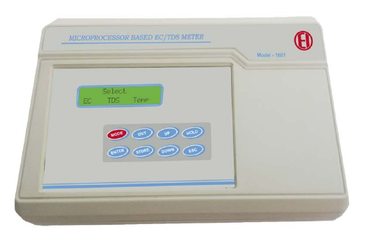

Model 1602 Microprocessor-Based EC-TDS-Sal Meter – Multi-Parameter Water Quality Analysis System
The Model 1602 Microprocessor-Based EC-TDS-Sal Meter is an advanced, multi-parameter laboratory instrument engineered for highly accurate and repeatable evaluation of water quality parameters. Manufactured under strict ISO 9001 standards, this solid-state benchtop meter consolidates the precise quantification of Electrical Conductivity (EC), Total Dissolved Solids (TDS), Salinity, and Temperature into a singular, highly efficient analytical system.
Driven by an intelligent microprocessor architecture, the Model 1602 eliminates manual calculation errors through integrated software functions such as Auto-Ranging capability and Automatic Temperature Compensation (ATC). These features optimize sample scans dynamically across wide ranges, guaranteeing reliable data integrity for industrial quality control, academic research, and complex environmental compliance diagnostics.
Designed for premium laboratory efficiency, the instrument incorporates a 16×2 backlit alphanumeric LCD display paired with an intuitive 8 soft-touch membrane key dashboard. With expansive onboard memory storing up to 90 analytical points and an integrated Centronics printer interface for physical documentation, the Model 1602 represents a total turnkey solution for critical water safety, purification management, and industrial fluid processing.
Technical Specifications
| Parameter / Feature | Details |
|---|---|
| Product Type | Microprocessor-Based Multi-Parameter Meter |
| Model Number | Model 1602 |
| Core Parameters | Electrical Conductivity (EC), TDS, Salinity, Temperature |
| EC Range | 0 to 20, 0 to 200 μS & 0 to 2, 0 to 20, 0 to 200 mS |
| TDS Range | 0 to 20, 0 to 200 ppm & 0 to 2, 0 to 20, 0 to 200 ppt |
| Salinity Range | 0 to 20, 0 to 200 ppm & 0 to 2, 0 to 20, 0 to 50 ppt |
| Temperature Range | 0°C to 100°C |
| EC / TDS Accuracy | ±0.5% Full Scale (FS) ±1 Digit |
| Salinity / Temp Accuracy | ±1% of Range ±1 Digit / ±0.1°C |
| Resolution Metrics | 0.01 μS (EC) / 0.01 ppm (TDS & Salinity) / 0.1°C (Temp) |
| Range Selection | Automatic (Auto-Ranging Capability) |
| Cell Constant Range | Adjustable from 0.05 to 10.5 |
| Temperature Compensation | Automatic / Manual (0°C to 50°C) |
| Temperature Coefficient | Adjustable from 0.1% to 4.0% |
| Reference Temperature | Programmable Setting Range |
| Onboard Storage Capacity | Up to 90 samples with non-volatile memory retention |
| Display Screen | 16×2 Line Alphanumeric Backlit LCD |
| Control Interface | 8 Soft-touch membrane keys with built-in user prompts |
| Printer Output | Centronics Interface for Dot-Matrix Printers |
| Power Architecture | 230V ±10% AC, 50 Hz |
| Physical Dimensions / Weight | 285 × 190 × 90 mm / ~2.5 Kg |
Core Features & User Benefits
The Model 1602 multi-parameter instrument is specifically engineered to resolve common testing bottlenecks, reduce equipment footprint, and ensure trace analytical precision.
- All-in-One Multi-Parameter Array Consolidates EC, TDS, Salinity, and Temperature measurements into a single device, replacing multiple instruments to maximize benchtop workspace.
- Intelligent Auto-Ranging Module Software algorithms automatically adjust measurement resolutions to provide the best signal accuracy across weak or hyper-concentrated samples.
- Advanced Thermal Compensation Tuning Features auto temperature compensation coupled with programmable reference points (0.1–4.0% coefficients) to neutralize sample temperature deviations.
- Non-Volatile 90-Point Data Storage Onboard non-volatile memory saves up to 90 distinct sample readings, ensuring data retention even during unexpected lab power dropouts.
- Guided UI with Backlit Display Backlit 16x2 alphanumeric LCD and intuitive user prompts keep testing workflows clear, smooth, and mistake-free in any lighting.
- Physical Document Archiving Equipped with a dedicated Centronics port to output raw matrices straight to local dot-matrix printers for secure quality control reporting.
Frequently Asked Questions & Verification Content
How does the Model 1602 EC-TDS-Sal Meter improve testing accuracy compared to single-parameter instruments?
The Model 1602 Microprocessor-Based EC-TDS-Sal Meter optimizes data gathering by combining four core water metrics into a single calibrated instrument. Driven by microprocessor technology, it coordinates automatic range selection with automatic temperature compensation to avoid the calculation tracking errors common to manual instrument swaps.
This centralized method reduces cross-contamination risks from using separate probes and ensures superior repeatability for industrial and environmental testing profiles.
What is the advantage of the adjustable temperature coefficient and programmable reference temperature?
Since fluid chemistry changes dynamically with temperature variations, the Model 1602 allows users to fine-tune the temperature coefficient from 0.1% to 4.0%. This degree of configuration scales the correction curves to match your exact solution properties, ensuring accurate normalization.
Setting custom reference temperatures ensures standard data comparisons match specific regulatory benchmarks across pharmaceutical, agricultural, or industrial settings.
Will stored dataset records be cleared or lost if the lab equipment experiences a complete power failure?
No, the Model 1602 features non-volatile onboard memory storage that retains up to 90 complete sample readings. Data logs remain completely secure during sudden power disruptions or when the benchtop meter is powered down for relocation.
This configuration helps minimize data logging gaps, protecting critical water treatment data until it can be printed or transcribed.
Can the Model 1602 multi-parameter meter be integrated with modern lab data recording printers?
Yes, this multi-parameter instrument includes a standard built-in Centronics printer interface designed to hook up directly with external dot-matrix printers. This direct connection outputs physical data sheets for immediate verification without requiring an intermediate PC.
This isolated logging approach helps support compliance auditing requirements within strict ISO-certified cleanrooms and industrial facilities.
Which specific accessories are included in the complete Model 1602 product package?
The Model 1602 package comes complete with a matched Conductivity/TDS cell, a dedicated temperature probe, an adjustable electrode stand, a mains lead, a protective dust cover, and a comprehensive instruction manual.
This turnkey setup ensures you have all necessary accessories out of the box, allowing lab technicians to begin multi-parameter calibrations immediately.
