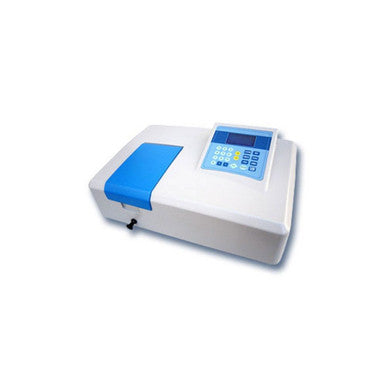

Model 2306 Visible Microprocessor Spectrophotometer:
Product Overview:
The Model 2306 Microprocessor Visible Spectrophotometer is an advanced, solid-state microcontroller-based instrument designed for quick and accurate spectrophotometric analysis of any concentration. Utilizing the latest microprocessor technology and advanced engineering techniques, it delivers enhanced accuracy and reproducibility, ensuring consistent performance for detailed sample analysis across the visible spectrum. This high-tech benchtop instrument is a perfect choice for professionals demanding efficiency and precision in their spectroscopic studies.
Key Features and User Interface:
The Model 2306 is built for user-friendly operation and enhanced data management:
• High-Resolution Display: The instrument is equipped with a 128 x 64 Dot Graphical LCD, making results easy to read.
• On-Screen Analysis: Users can view the Standard Curve Display directly on the screen.
• Intuitive Control: The system features soft touch numeric keys with a complete numeric key interface for convenient entry of numeric values.
• Extensive Data Storage: The device can store 200 groups of data and 200 standard curves at the same time.
• Flexible Sample Handling: The large sample compartment can accommodate 5 mm to 100 mm path length cuvettes with optional holders. The system includes a 4-Position rapid cuvette changer (Test Tube Holder) selector.
• Low Stray Light: Features stray light performance below 0.3 %T.
• Connectivity: Provision is made for PC connectivity through a USB Port, and attachment of any dot matrix printer using a Parallel Port. The basic PC software is supplied with the instrument.
• Optional Enhanced Modes: Optional software (available at extra cost) expands the function to include Wavelength Scanning, Multi wavelength, Quantitative, and Kinetic Modes.
Applications:
This reliable and robust spectrophotometer is highly beneficial across various scientific disciplines, meeting the needs of today's scientific community in:
• Chemical Laboratories
• Pharmaceutical Industries
• Agricultural and Biotechnological Labs
• Hospitals and Diagnostic Centres
• Engineering and Medical Colleges
• Universities and Research Institutions
Technical Specifications (Model 2306):
|
Specification Category
|
Parameter
|
Value
|
|
Spectroscopic Performance
|
Wavelength Range
|
320 – 1100 nm
|
|
Spectral Bandwidth
|
4 nm
|
|
|
Wavelength Accuracy
|
± 1 nm
|
|
|
Wavelength Repeatability
|
0.3 nm
|
|
|
Wavelength Setting
|
Auto
|
|
|
Stray Light
|
< 0.3 %T
|
|
|
Stability
|
± 0.002 A/h @ 500 nm
|
|
|
Baseline Flatness
|
± 0.002 A/h
|
|
|
Photometric Parameters
|
Photometric Range
|
0 – 200 %T, – 0.3 to 3A, 0 – 9999 Conc.
|
|
Photometric Accuracy
|
± 0.3 %T
|
|
|
Photometric Repeatability
|
0.2 %T
|
|
|
Components
|
Detector
|
Silicon Photodiode
|
|
Light Source
|
Tungsten Halogen Lamp
|
|
|
Display
|
128 x 64 Dots Graphical LCD
|
|
|
Connectivity & Power
|
Output
|
USB Port for PC Connectivity, Parallel Port for Dot Matrix Printer
|
|
Power Requirement
|
230V ± 10% AC, 50 Hz
|
|
|
Physical Data (Approximate)
|
Dimensions (L x B x H) Instrument
|
450 x 320 x 195 mm
|
|
Dimensions (L x B x H) Box
|
550 x 430 x 300 mm
|
|
|
Weight (Instrument)
|
11 Kg
|
|
|
Weight (Box)
|
13.5 Kg
|
|
|
Standard Accessories
|
Included Items
|
Glass Cuvettes (A set of 4), Mains Lead, Operation Manual, and Dust Cover
|
