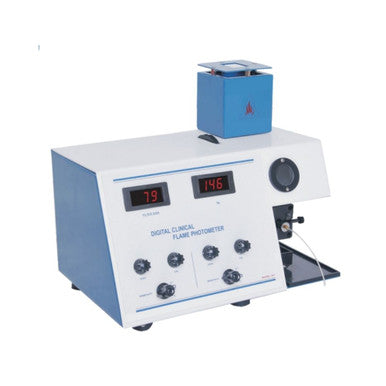

Detailed Product Description Model 391:
The Digital Clinical Flame Photometer Model 391 is a dedicated dual channel instrument used primarily for the simultaneous observation of Sodium and Potassium. This device is essential for analysis in blood serum (plasma), urine, and other types of biological fluids. It is also designed as a rugged and accurate instrument capable of determining the concentration of Sodium, Potassium, Calcium, and Lithium in various solutions. Its primary applications span Clinical Laboratories, Pharmaceuticals, and Agricultural Industries.
Principle of Operation:
The Model 391 instrument system is supplied in two separate units: the Main Unit and the Compressor Unit.
1. Aspiration and Atomisation: The Compressor Unit provides compressed, dry, oil-free air. This air passes into the atomiser/nebulizer, creating suction which draws the liquid sample solution. The sample is then sprayed into the flame as a fine mist.
2. Detection and Readout: The light emitted by the excited element at its characteristic wavelength is isolated by narrow band interference filters. This isolated light falls onto the Silicon Photodiode detector. After signal conditioning and conversion, the results are displayed directly in ppm/meq units on the Dual 2½ Digit, 7-Segment LED display.
3. Filter Selection and Flame Control: The narrow band interference filters are mounted on a rotating disc fitted within the Main Unit, allowing the user to select the appropriate filter by rotating the disc with the thumb. The flame system utilizes LPG and dry oil-free air, maintained by an oil-free compressor and a precision regulator for stable airflow.
Key Features
The Model 391 includes design characteristics that ensure reliability and ease of use:
• Dual Channel Capability: Allows for the simultaneous measurement of two elements, specifically Sodium and Potassium, with only a single aspiration of the sample.
• Auto Ignition System: Features an in-built electronic ignition system that starts the flame with the press of a switch.
• Optimised Nebulizer: Equipped with a concentric non-corrosive nebulizer, which is specified as a Black backelite, axial flow type.
• Stable Flame: Includes a mixing chamber specifically designed to maintain a stable flame during operation.
• Measurement Flexibility: Offers accurate determination of Na, K, Ca, and Li. Calcium (Ca) and Lithium (Li) determinations are optional.
Product Specifications (Model 391):
|
Specification
|
Detail
|
|
Model Number
|
391
|
|
Type of Product
|
Dual Channel Flame Photometer
|
|
Measurement System
|
Simultaneous measurement of 2 elements on dual LED display
|
|
Readout/Display
|
Dual 2½ Digit, 7-Segment LED
|
|
Ignition System
|
In-built electronic Ignition by press of switch
|
|
Detector
|
Silicon Photodiode
|
|
Filters
|
Narrow band interference glass filters (Ca & Li filters available at extra cost)
|
|
Nebulizer
|
Black backelite, axial flow type (Concentric Non-Corrosive)
|
|
Flame System
|
LPG and dry oil free air
|
|
Combustion Gas
|
LPG controlled by precision regulator
|
|
Warm-Up Time
|
10 minutes
|
|
Power Requirement
|
230 V ± 10% AC, 50 Hz
|
|
Accuracy
|
± 2% up to 100 meq, ± 5% above 100 meq
|
|
Repeatability
|
± 2 Counts
|
|
Country of Origin
|
India
|
Range and Sensitivity:
|
Element
|
Serum Range (meq/l)
|
Urine Range (meq/l)
|
Sensitivity (ppm)
|
|
Sodium (Na)
|
0 – 200
|
0 – 200
|
5
|
|
Potassium (K)
|
0 – 10
|
0 – 100 (Optional)
|
5
|
|
Calcium (Ca)
|
-
|
0 – 10 meq/l (Optional)
|
10 (Optional)
|
|
Lithium (Li)
|
0 – 2 meq/l (Optional)
|
-
|
10 (Optional)
|
Dimensions and Weight:
|
Unit
|
Dimensions (L x B x H)
|
Weight
|
Air Supply
|
|
Main Unit
|
375 x 245 x 220 mm (Approx.)
|
7.5 Kg (Approx.)
|
-
|
|
Compressor Unit
|
290 x 255 x 210 mm (Approx.)
|
8 Kg (Approx.)
|
By oil free mini compressor unit with pressure regulator
|
