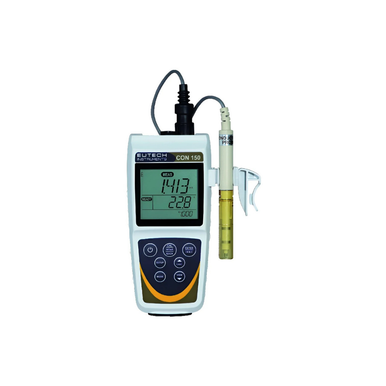

Parameter Cond TDS Meter
The Parameter Cond TDS Meter is a professional-grade waterproof conductivity and total dissolved solids measurement instrument engineered for accurate water quality analysis across laboratory, industrial, environmental, and process monitoring applications. Designed with advanced conductivity measurement technology, this high-performance meter provides reliable conductivity, TDS, and temperature monitoring for routine testing and analytical procedures.
Featuring an extended measurement range of 0 to 200 mS conductivity and 0 to 200 ppt TDS, the meter is suitable for both low-concentration and high-concentration sample analysis. The integrated large three-line LCD display simultaneously shows conductivity or TDS values, temperature readings, and cell efficiency information for enhanced operational convenience.
The meter incorporates an IP67-rated waterproof construction, ensuring dependable performance in demanding laboratory and field environments. Built-in data memory supports storage of up to 150 measurement records along with temperature values, simplifying data logging and quality control documentation.
Advanced calibration functionality enables automatic or manual calibration with support for multiple probe cell constants including 0.1, 1.0, and 10. Adjustable temperature compensation, customizable TDS conversion factors, and selectable manual or automatic temperature compensation modes provide exceptional measurement flexibility for varied analytical applications.
Additional features including calibration due alarms, measurement hold functionality, automatic shutoff, dual power operation, and the innovative Grip-Clip™ system make this conductivity and TDS meter ideal for water treatment facilities, environmental laboratories, aquaculture, chemical industries, food processing plants, educational institutions, and scientific research laboratories.
Technical Specifications
| Parameter / Feature | Details |
|---|---|
| Product Type | Conductivity / TDS / Temperature Meter |
| Measurement Parameters | Conductivity, Total Dissolved Solids (TDS), Temperature |
| Conductivity Range | 0 to 200 mS |
| Conductivity Resolution | 0.01 µS to 0.1 mS |
| Conductivity Accuracy | ±1% Full Scale |
| Conductivity Calibration | Automatic or Manual; 1 Point per Range |
| TDS Range | 0 to 200 ppt (TDS Factor 1.0) |
| TDS Resolution | 0.01 ppm to 0.1 ppt |
| TDS Accuracy | ±1% Full Scale |
| TDS Calibration | Manual; 1 Point per Range |
| Temperature Range | -10.0 to 110.0 °C (14.0 to 230.0 °F) |
| Temperature Resolution | 0.1 °C / °F |
| Temperature Accuracy | ±0.5 °C; ±0.9 °F |
| Temperature Calibration | Offset Adjustment in 0.1 Increments, ±10 °C or ±18 °F |
| Display Type | Large Three-Line Custom LCD |
| Waterproof Rating | IP67 Waterproof Construction |
| Temperature Compensation | Automatic or Manual from -10 to 110 °C |
| Temperature Coefficient | 0.0 to 10.0 %/°C Adjustable |
| TDS Conversion Factor | Adjustable from 0.4 to 1.0 |
| Memory Capacity | Stores up to 150 Data Sets |
| Probe Compatibility | Supports 0.1, 1.0, and 10 Cell Constant Probes |
| Power Supply | Two AA Batteries Included; Optional AC Adapter |
| Battery Life | More than 500 Hours Continuous Use |
| Dimensions | Meter: 20 x 8.3 x 5.7 cm | Boxed: 23 x 23 x 7 cm |
| Weight | Approx. 0.5 kg |
| Application Areas | Water Treatment, Environmental Testing, Aquaculture, Food Industry, Chemical Laboratories, Educational Institutions |
Core Features & User Benefits
The Parameter Cond TDS Meter combines advanced conductivity analysis, intelligent calibration functionality, and waterproof durability for dependable laboratory and field-based water quality measurements.
- Multi-Parameter Measurement Capability Simultaneously measures conductivity, total dissolved solids, and temperature, improving analytical efficiency and simplifying water quality monitoring procedures.
- Wide Conductivity and TDS Range Supports measurement from ultra-low to high concentration samples, making the meter suitable for diverse industrial, environmental, and laboratory applications.
- IP67 Waterproof Design The rugged waterproof housing enhances reliability and operational safety in wet laboratory conditions and field testing environments.
- Large Three-Line LCD Display Displays measurement values, temperature readings, and cell efficiency simultaneously for improved readability and faster data interpretation.
- Built-In Memory Function Stores up to 150 measurement records with temperature data for convenient documentation, quality control, and analytical record keeping.
- Advanced Calibration Flexibility Supports both automatic and manual calibration using recognized standards to ensure accurate and repeatable measurement performance.
- Adjustable Temperature Compensation Selectable manual or automatic temperature compensation improves conductivity and TDS measurement accuracy under varying sample temperatures.
- Customizable TDS Conversion Factor Adjustable conductivity-to-TDS conversion factor from 0.4 to 1.0 enables optimized measurement performance across different sample types.
- Multiple Probe Compatibility Compatible with probes featuring 0.1, 1.0, and 10 cell constants for expanded measurement flexibility and application versatility.
- Calibration Due Alarm Integrated recalibration reminder helps maintain measurement accuracy and supports routine instrument maintenance schedules.
- Flexible Power Operation Operates using standard AA batteries or optional AC adapter for convenient portable or benchtop operation.
- Innovative Grip-Clip™ System Securely holds the probe in beakers or containers, improving handling convenience during testing and sample analysis.
Frequently Asked Questions (FAQ)
What parameters can this conductivity meter measure?
The Parameter Cond TDS Meter is designed to measure conductivity, total dissolved solids (TDS), and temperature for comprehensive water quality analysis applications.
Its multi-parameter functionality makes it suitable for laboratory testing, industrial process monitoring, environmental analysis, and water treatment operations.
What is the conductivity and TDS measurement range?
The meter provides a conductivity measurement range of 0 to 200 mS and a TDS measurement range of 0 to 200 ppt, supporting both low-conductivity and high-concentration sample analysis.
This wide operating range enables accurate testing across diverse laboratory, industrial, and environmental applications.
Does the meter support automatic temperature compensation?
Yes, the meter supports both automatic and manual temperature compensation modes for improved conductivity and TDS measurement accuracy.
The adjustable temperature compensation functionality helps minimize temperature-related measurement variations during sample testing.
How many measurement records can be stored in memory?
The integrated memory system can store up to 150 measurement data sets along with temperature readings for convenient record management and data review.
This feature is particularly useful for routine laboratory analysis, quality assurance programs, and environmental monitoring documentation.
Is the conductivity meter waterproof?
Yes, the meter features an IP67-rated waterproof construction designed for reliable operation in laboratory, industrial, and field testing environments.
The waterproof design improves instrument durability and helps protect internal electronics during routine use in wet conditions.
Which industries and applications commonly use this meter?
This conductivity and TDS meter is widely used in water treatment plants, environmental laboratories, aquaculture facilities, chemical industries, food processing industries, research institutions, and educational laboratories.
It is ideal for water purity analysis, process monitoring, dissolved solids testing, and scientific quality control applications.
