- %T, Abs, Conc. & KFactor mode
- 1 ml Sample Volume
- Auto Zeroing Facility
- Highly Stable & Accurate
- Range 400 to 700 nm
- Soft Touch Membrane Keys
GST InvoiceBusiness-ready billing
Pan India DeliveryDispatched nationwide
Expert SupportBefore & after purchase
DocumentationDatasheets & manuals

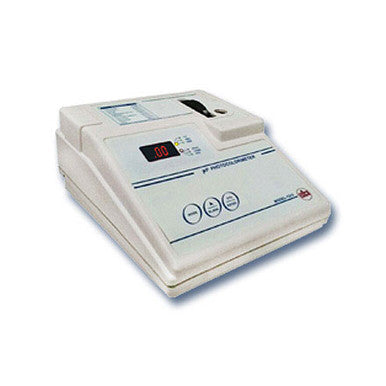

Photo Colorimeter Model 1313
Microprocessor Photo Colorimeter 1313
Features
Microprocessor Photo Colorimeter – 1313 is a compact and easy to operate instrument for Photo Colorimeter analysis of any concentration. The output is available on a 3 digit seven segment red LED display in terms of %Transmission (%T), Absorbance (Abs.), and Concentration (Conc.) and KFactor. This is a unique system that combines convenience with accuracy and precision in analysis.
The instrument includes a wide range of filters covering wavelength from 400-700 nm in the form of in-built filters. The filter setting is controlled by a rotating disc. An in-built shutter control is provided to avoid fatigue of photodiode. When the instrument is switched on, Lamp glows and light passes through the solution to the detector and absorbance or %T measurement is taken. Light source is pre-focused tungsten lamp. The instrument confirms to all general & safety standards. Photo Colorimeter Model 1313
Specifications Photo Colorimeter Model 1313
| Wavelength Range | 400 – 700 nm |
| Filter System | In-built filter disc with 8 standard filters |
| Sample Size | 1 ml |
| Sample System | 10 mm path-length matched glass test tubes |
| Detector | Silicon Photodiode |
| Display | 3 Digit 7-Segment Red LED Display |
| Keyboard | Soft Touch Membrane Keys |
| Light Sources | Special LED Light Source |
| Readout | %T: 0 – 100, Abs: 0 – 1.99, Conc.: 1.0 – 999, KFactor: 1.0 – 999 |
| Power | 230 V ± 10% AC, 50Hz |
| Dimensions (L x B x H) | 192 x 238 x 103 mm (Approx.) |
| Weight | 2.5 Kg (Approx.) |
| Accessories | Matched Test Tube: (A set of 5), Operation Manual and Dust Cover |
