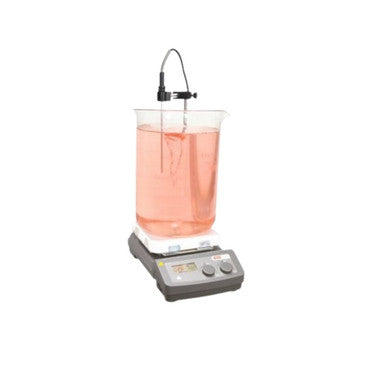

REMI 10MLH Plus Magnetic Stirrer with Ceramic Hot Plate – Precision Heating & Laboratory Mixing Solution
The REMI 10MLH Plus Magnetic Stirrer with Hot Plate is a high-performance laboratory instrument engineered for precise heating, controlled magnetic stirring, and reliable sample preparation across pharmaceutical, industrial, research, chemical, microbiology, and analytical laboratories. Designed with advanced microprocessor-based control technology, this sophisticated hot plate magnetic stirrer delivers highly accurate temperature regulation and stable mixing performance for demanding scientific workflows.
The instrument integrates efficient heating and magnetic stirring functions into a compact, laboratory-friendly design, enabling simultaneous temperature control and homogeneous liquid mixing. Equipped with a durable glass ceramic top plate, the system offers superior chemical resistance and high thermal durability while supporting temperatures up to 550°C. The magnetic stirring system utilizes a PTFE-coated stirring paddle to create consistent vortex mixing, ensuring uniform sample distribution and improved reaction reproducibility.
For enhanced operational accuracy, the REMI 10MLH Plus features a bright backlit LCD display that simultaneously shows actual and set parameters for both speed and temperature. The advanced brushless motor maintains stable stirring speed even under fluctuating viscosity or voltage conditions, ensuring dependable experimental consistency during prolonged operation.
The system supports an optional PT-1000 external temperature sensor, improving temperature control precision to an exceptional accuracy of ±0.2°C. Additional safety features include residual heating warning alerts above 50°C, integrated temperature protection systems, and maintenance-free motor technology for long-term reliability and user safety.
Widely used in chemical synthesis, microbiology sample preparation, food and beverage testing, pharmaceutical formulation, analytical chemistry, and academic research laboratories, the REMI 10MLH Plus Magnetic Stirrer with Ceramic Hot Plate offers an ideal combination of precision heating, powerful stirring performance, safety, and laboratory durability.
Technical Specifications
| Feature | Details |
|---|---|
| Model No. | 10 MLH Plus |
| Brand | REMI |
| Product Type | Magnetic Stirrer with Ceramic Hot Plate |
| Maximum Stirring Quantity | 10 Liters (Water) |
| Top Plate Material | Glass Ceramic |
| Top Plate Dimensions | 184 × 184 mm |
| Heating Power | 1000 W |
| Maximum Temperature | Up to 550°C |
| Speed Range | 150 – 1500 rpm |
| Display Type | Backlit LCD Display |
| Speed Display Resolution | 1 rpm |
| Internal Temperature Accuracy | ±1°C |
| External Temperature Sensor | PT-1000 |
| Temperature Accuracy with PT-1000 | ±0.2°C |
| Residual Heating Warning | Alarm Above 50°C |
| Motor Rating Input / Output | 18 W / 10 W |
| Stirring Paddle | PTFE Coated Q-20A (13 × 50 mm) |
| Dimensions (W × D × H) | 360 × 215 × 112 mm |
| Approximate Weight | 5.3 Kg |
| Protection Class | IP 21 |
| Motor Type | Maintenance-Free Brushless Motor |
| Control Technology | Advanced Microprocessor Control |
| Country of Origin | India |
| Applications | Chemical Synthesis, Pharmaceutical Research, Microbiology, Sample Preparation, Food Testing, Analytical Chemistry |
Core Features & Benefits
The REMI 10MLH Plus is designed to provide highly accurate temperature control, efficient magnetic stirring, and dependable laboratory safety for demanding scientific and industrial applications.
- Advanced Microprocessor Control The intelligent microprocessor-based control system delivers highly stable temperature and speed regulation for improved laboratory accuracy and repeatable experimental results.
- Integrated Heating & Stirring Functionality Simultaneous heating and magnetic stirring enable efficient sample preparation, homogeneous mixing, and enhanced process consistency during laboratory workflows.
- Durable Glass Ceramic Top Plate The chemically resistant ceramic top surface withstands aggressive chemicals and high temperatures up to 550°C for long operational durability.
- High Accuracy Temperature Monitoring The optional PT-1000 sensor improves temperature control accuracy to ±0.2°C for precision-sensitive laboratory applications and research analysis.
- Stable Brushless Motor Performance The maintenance-free brushless motor ensures constant stirring speed even during viscosity or voltage fluctuations for dependable operation.
- Real-Time LCD Display The backlit LCD display provides simultaneous viewing of actual and set values for easy monitoring of speed and temperature conditions.
- Enhanced Laboratory Safety Residual heating warning alarms and integrated temperature protection systems help improve operator safety during high-temperature applications.
- Wide Laboratory Applications Ideal for pharmaceutical laboratories, chemical synthesis, microbiology, analytical chemistry, food testing, homogenization, and industrial research applications.
Frequently Asked Questions (FAQ)
What is the primary use of the REMI 10MLH Plus Magnetic Stirrer?
The REMI 10MLH Plus Magnetic Stirrer with Hot Plate is primarily used for simultaneous heating and magnetic stirring of liquids in laboratory applications requiring accurate temperature control and homogeneous mixing.
It is widely utilized in pharmaceutical laboratories, chemical synthesis, microbiology research, analytical chemistry, food testing, and industrial sample preparation workflows.
What are the advantages of the glass ceramic top plate?
The glass ceramic top plate offers excellent chemical resistance, high thermal durability, and superior heat distribution for demanding laboratory applications.
Its smooth and corrosion-resistant surface supports temperatures up to 550°C while providing long operational life under continuous laboratory usage conditions.
How accurate is the temperature control system?
The internal control system provides temperature accuracy of ±1°C, while the optional PT-1000 external temperature sensor improves precision up to ±0.2°C.
This enhanced temperature control capability makes the instrument suitable for highly sensitive scientific experiments and analytical laboratory procedures.
What safety features are included in the REMI 10MLH Plus?
The REMI 10MLH Plus includes a residual heating warning alarm, advanced temperature protection system, and IP21 protection class for improved laboratory safety.
The warning alarm activates when the plate temperature remains above 50°C after operation, helping reduce accidental contact risks during laboratory use.
Which industries commonly use magnetic stirrers with hot plates?
Magnetic stirrers with hot plates are commonly used in pharmaceutical, biotechnology, food processing, chemical, academic, and industrial research laboratories.
They are widely applied for chemical reactions, sample homogenization, culture media preparation, titration, and temperature-controlled mixing applications.
