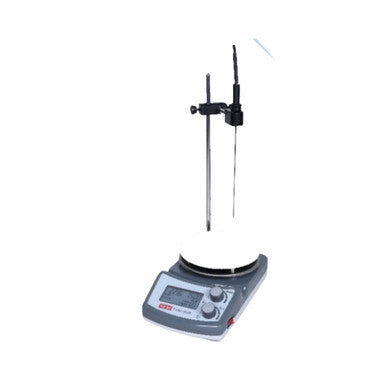

REMI 3MLH Plus Magnetic Stirrer with Hot Plate (3 Litre Capacity):
The REMI 3MLH Plus Magnetic Stirrer with Hot Plate is a precision laboratory device engineered for applications that demand accurate temperature control and efficient mixing of liquids. This model integrates a robust hot plate function with advanced magnetic stirring technology, making it suitable for industrial, research, pharmaceutical and biotechnology laboratories.
Key Features and Capabilities
Precise Temperature and Speed Control:
The 3MLH Plus is part of REMI's next generation of magnetic stirrers, featuring advanced control and monitoring capabilities.
• Digital Monitoring: A clear, backlit LCD screen provides a simultaneous display of the set and actual stirring speed and temperature. This digital interface is controlled by microprocessor technology, ensuring high accuracy and excellent reproducibility for critical laboratory processes.
• Optional External Temperature Probe: The instrument is compatible with an external PT-1000 temperature-sensing probe and stand, which enables direct measurement and precise control of the actual fluid temperature. When used with the PT-1000 probe, the instrument provides a temperature-control accuracy of up to 0.2°C.
Important: The PT-1000 temperature probe and stand are optional accessories. They are not included in the standard supply and must be ordered separately.
• Wide Stirring Range: It offers a flexible speed range from 150 to 1800 RPM, maintaining constant speed even when there are changes in the load or supply voltage.
Robust Construction and Durability
Designed to endure demanding laboratory environments, the 3MLH Plus combines reliable performance with safety and long service life.
• Hot Plate Material: The top plate is constructed from ceramic-coated aluminium alloy with a top-plate size of 154 mm. This material provides excellent chemical resistance, scratch-resistant durability and efficient heat transfer.
• Heating Power: The hot plate delivers a heating power of 450 W and can reach a maximum temperature of 300°C.
• Stirring Capacity: This model is designed for medium-scale laboratory processes and can efficiently stir a maximum quantity of 3 litres of water.
• Maintenance-Free Operation: The stirrer incorporates a maintenance-free brushless motor that provides high torque, smooth performance and quiet operation.
Advanced Safety Measures
Operator safety and process integrity are supported through built-in protective features.
• Residual Heat Warning: A residual-heat warning indicator alerts the user when the hot-plate temperature remains above 50°C, even after the unit is switched off. This helps prevent accidental contact with the heated surface.
• Safe Temperature Limit: Users can set a safe-temperature limit to help prevent the sample from overheating.
• Timer Function: The integrated timer is adjustable from 00:01 to 99:59 hours and also includes a continuous operating mode for extended applications.
Technical Specifications (Model 3MLH Plus)
| Specification | Detail |
|---|---|
| Product Type | Magnetic Stirrer with Hot Plate |
| Model No. | 3MLH Plus |
| Manufacturer | REMI Lab World |
| Country of Origin | India |
| Maximum Stirring Quantity (Water) | 3 Litres |
| Heating Power | 450 W |
| Stirring Speed Range | 150–1800 RPM |
| Maximum Temperature | 300°C |
| Top Plate Material | Ceramic-Coated Aluminium Alloy |
| Top Plate Size | 154 mm |
| Stirring Paddle (PTFE-Coated) | 9 × 35 mm |
| Display Type | LCD Display |
| External Temperature Sensor | PT-1000 probe with stand — optional accessory |
| PT-1000 Included in Standard Supply | No — must be ordered separately |
| Control Accuracy with PT-1000 | Up to 0.2°C |
| Timer | 00:01 to 99:59 hours and continuous mode |
| Dimensions (W × D × H) | 169 × 290 × 105 mm |
| IP Rating | IP21 |
Please note: The displayed product price is for the REMI 3MLH Plus instrument only. The external PT-1000 temperature probe and stand are not included and must be purchased separately if required.
