Product Overview:

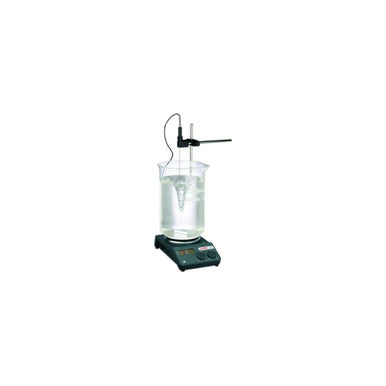

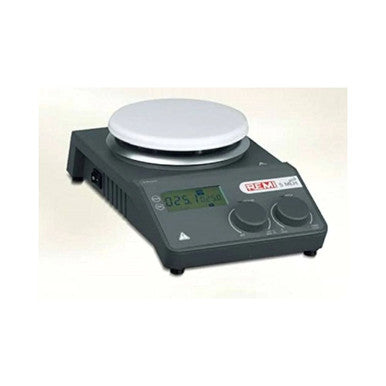

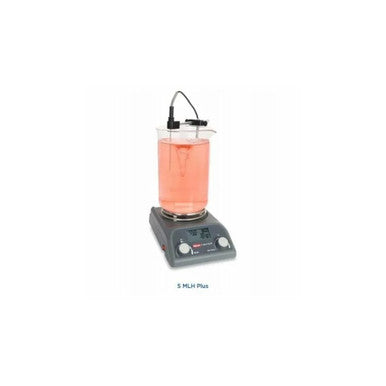

The Remi 5MLH Plus Magnetic Stirrer with Stainless Steel Hot Plate is a next-generation laboratory stirrer engineered for precise mixing and heating applications. This advanced model combines robust stirring technology with controlled heating capabilities, making it ideal for routine laboratory work, research, and quality assurance analyses. The 5MLH Plus is a premium quality product from Remi, known for its high quality and reliable performance in the challenging field of laboratory equipment.
Key Features and Advanced Technology:
This magnetic stirrer incorporates several key features designed to ensure accuracy, safety, and efficiency:
Precision and Performance
• Microprocessor Technology: The stirrer uses advanced microprocessor technology, enabling high accuracy in controlling both stirring speed and temperature.
• Constant Speed: The system maintains a constant speed, even when the load or voltage fluctuates.
• Wide Speed Range: It offers a speed range from 150 rpm up to 1500 rpm.
• Maintenance-Free Motor: Equipped with a brushless motor, the unit requires minimal maintenance.
• Durability: The unit features scratch-proof surfaces and excellent chemical resistance.
• Last Parameter Recall: This function allows the unit to recall the last operating parameters, which is ideal for repetitive processes.
Temperature Control and Heating:
• Stainless Steel Hot Plate: The unit features a durable Stainless Steel top plate capable of reaching temperatures up to 340°C.
• External PT-1000 Probe: An external PT-1000 temperature sensor is included for high-accuracy control, allowing the user to monitor and control the fluid temperature directly.
• High Accuracy: Temperature control accuracy for the heating element is 1°C, which improves to 0.2°C when utilizing the external PT-1000 probe.
Safety Features
• Residual Heating Warning: A crucial safety feature is the Residual Heating Warning Alarm, which activates when the top plate temperature is above 50°C, even after the heat control is switched off, protecting the operator from accidental burns.
• Safety Control System: The unit includes a unique safety temperature control system and allows for setting a safe temperature limit to prevent overheating.
Display and Monitoring
• LCD Display: An easy-to-read backlit LCD displays both the set and actual parameters for speed and temperature, allowing for effective monitoring of the experiment.
• Speed Resolution: Speed parameters are displayed with a resolution of 1 rpm.
Technical Specifications (Model 5-MLH Plus):
|
Specification
|
Detail
|
|
Brand
|
Remi
|
|
Model
|
5-MLH Plus
|
|
Max. Stirring Capacity (Water)
|
5 Litres (5 L)
|
|
Stirrer Speed Range
|
150-1500 rpm
|
|
Top Plate Material
|
Stainless Steel
|
|
Temperature Range (Hot Plate)
|
Up to 340°C
|
|
Heating Power
|
500 W
|
|
Speed / Temperature Display
|
LCD
|
|
Speed Display Resolution
|
1 rpm
|
|
External Temperature Sensor
|
PT-1000
|
|
Control Accuracy (with PT-1000)
|
0.2°C
|
|
Control Accuracy (Heating Temp)
|
1°C
|
|
Residual Heating Warning Alarm
|
Above 50°C
|
|
Stirring Paddle (PTFE coated)
|
Q-19A (9 x 35mm)
|
|
Motor Rating Input
|
18 W
|
|
Motor Rating Output
|
10 W
|
|
Power (Total W)
|
550 W
|
|
Base Size / Top Plate Dimension
|
$\phi$ 157 mm (or 135 mm diameter)
|
|
Dimensions (L x W x H)
|
34 x 20 x 16 cm (or 342 x 210 x 115 mm)
|
|
Weight
|
4 kg
|
|
Supply
|
220-240 Volts, 50 Hz Single Phase
|
|
Protection Class
|
IP 42 (or IP 21)
|
|
Common/Generic Name
|
Stirrer
|
