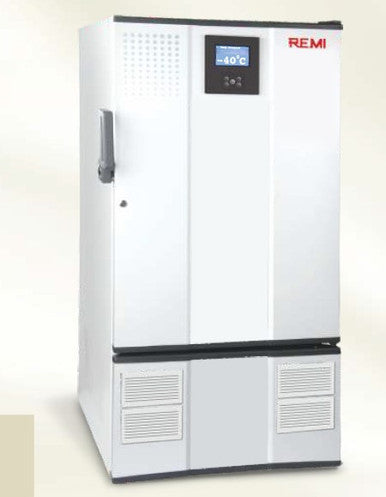

REMI RQV-400 Plus: Professional Upright Deep Freezer
The REMI RQV-400 Plus Deep Freezer is a high-capacity (400 Litres) cold storage solution engineered for clinical research and pharmaceutical settings. Designed to reach temperatures of -20°C to -40°C, this upright freezer ensures the long-term integrity of vaccines, serums, and biological specimens. Featuring Microprocessor control and a 1-inch LED display, it combines thermal precision with energy efficiency through 80mm thick CFC-free PUF insulation, making it the definitive choice for life science laboratories.
Technical Specifications
| Feature | Details |
|---|---|
| Internal Volume | 400 Litres |
| Temperature Range | -20°C to -40°C (in AC Room) |
| Insulation | 80mm Thick CFC-free PUF |
| Control System | Microprocessor-based |
| Display | 1" - 7 Segment LED |
| Internal Material | Stainless Steel - 304 Grade |
| Internal Dimensions | 640 x 755 x 830 mm |
| Power Requirements | 220-240V, 50Hz, Single Phase |
Core Features & User Benefits
- Advanced Thermal Safety Comprehensive audio-visual alarms for sensor failure, power outages, and door-open events safeguard critical biological components.
- Energy Efficient Design High-density 80mm PUF insulation prevents void pockets, ensuring superior thermal retention and reduced energy consumption.
- Durable SS-304 Interior The pharmaceutical-grade stainless steel internal body ensures corrosion resistance and easy decontamination.
- Intuitive Microprocessor Control A large, clear LED display provides real-time monitoring of set and process values for precision operation.
- Compressor Protection Integrated time delay and overload cut-off relay prevent compressor damage, extending the unit's operational life.
Frequently Asked Questions
What is the temperature range of the REMI RQV-400 Plus Deep Freezer?
The REMI RQV-400 Plus Deep Freezer is designed to achieve a minimum temperature of -20°C, and can reach ultra-low temperatures of -40°C when operated in an AC room environment. This flexibility makes it ideal for storing vaccines, serums, and clinical research specimens requiring strict thermal stability.
How does the REMI RQV-400 Plus ensure energy efficiency?
Energy efficiency in the REMI RQV-400 Plus is maximized through 80 mm thick CFC-free PUF insulation in both the body and the door. This machine-filled insulation prevents void pockets, ensuring superior thermal retention and reducing the workload on the compressor during long-term storage.
What safety features are included for sample protection?
The REMI RQV-400 Plus features a comprehensive audio-visual alarm system that triggers during sensor failure, power failure, door-open events, and temperature deviations. Additionally, it includes an electrical circuit breaker and an overload cut-off relay to protect the cooling system.
Is the internal body of the RQV-400 Plus resistant to corrosion?
Yes, the internal body is constructed from Stainless Steel - 304 grade. This high-quality material ensures maximum durability, easy cleaning, and resistance to corrosion, which is essential for medical and pharmaceutical environments handling various biological components.
What is the storage capacity of the RQV-400 Plus Deep Freezer?
The REMI RQV-400 Plus offers a substantial 400 Litre internal volume, providing ample space for large-scale storage. The unit comes standard with four adjustable trays, allowing for organized and flexible storage of varied sample sizes.
