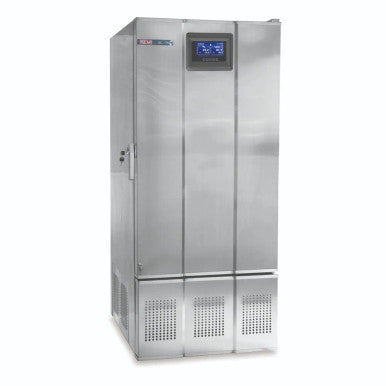

REMI SC-6 PLUS Stability Chamber (200 Litres)
The REMI SC-6 PLUS Stability Chamber is a high-performance environmental test chamber designed for precise long-term, intermediate, and accelerated stability studies in pharmaceutical, chemical, agrochemical, biotechnology, and research laboratories. Engineered in compliance with GMP requirements and ICH guidelines, this advanced stability chamber delivers highly accurate temperature and humidity control for critical stability testing applications.
Designed for dependable environmental simulation, the SC-6 PLUS supports standard storage conditions including 25°C / 60% RH, 30°C / 65% RH, and 40°C / 75% RH. The chamber incorporates advanced microprocessor-based control systems, forced air circulation, efficient heating and cooling mechanisms, and robust thermal insulation to ensure exceptional stability and uniformity throughout the chamber interior.
The chamber features a durable double-walled stainless steel construction with SS-316 internal surfaces and SS-304 external body construction for superior corrosion resistance, hygiene, and long operational life. Advanced monitoring, data logging, and safety systems make the REMI SC-6 PLUS an ideal solution for regulated laboratories and industrial quality control environments.
With built-in data storage, optional TFT touch screen controls, printer connectivity, and comprehensive safety alarms, the REMI SC-6 PLUS Stability Chamber provides reliable performance, regulatory compliance, and operational convenience for modern laboratory stability testing applications.
Technical Specifications
| Parameter / Feature | Details |
|---|---|
| Product Type | Stability Chamber |
| Model | SC-6 PLUS |
| Brand | REMI |
| Capacity | 200 Litres |
| Number of Shelves | 2 |
| Internal Dimensions (W × D × H) | 660 × 655 × 450 mm |
| External Dimensions (W × D × H) | 800 × 1095 × 1020 mm |
| Temperature Range | 10°C to 60°C |
| Temperature Accuracy | ±1°C |
| Humidity Range | 40% to 95% RH |
| Humidity Accuracy | ±3% RH |
| Temperature & Humidity Controller | Microprocessor Controller with Capacitance Type Sensor |
| Standard Display | 4" LCD Display |
| Optional Display | 7" TFT Color Touch Screen with PLC |
| Internal Body Material | Stainless Steel 316 Grade |
| External Body Material | Stainless Steel 304 Grade |
| Insulation | 80 mm CFC-Free Polyurethane Foam |
| Cooling System | Hermetically Sealed Compressor with CFC-Free Refrigerant |
| Heating System | Stainless Steel Tubular Heaters |
| Illumination | 8 Watt Fluorescent Tube |
| Noise Level | Less Than 65 dB(A) |
| Tray Load Capacity | 30 Kg (Uniformly Distributed) |
| Power Supply | 220–240V AC, 50Hz, Single Phase |
| Recommended Voltage Stabilizer | VS-04 |
| Data Storage Capacity | 1000 Records (LCD Version) / 1500 Records (TFT Version) |
| Safety Features | Power Failure Alarm, High Temperature Cutoff, Compressor Overload Protection, Low Water Level Alarm |
| Applicable Standards | GMP & ICH Guidelines |
Core Features & User Benefits
The REMI SC-6 PLUS Stability Chamber is engineered to provide reliable environmental simulation, precise climatic control, and dependable long-term laboratory performance for critical stability testing applications.
- Precise Temperature & Humidity Control Advanced microprocessor-based control system with capacitance-type sensor ensures accurate monitoring and stable environmental conditions throughout the testing cycle.
- ICH Compliant Stability Testing Designed to support standard ICH stability storage conditions including 25°C/60% RH, 30°C/65% RH, and 40°C/75% RH for pharmaceutical and industrial testing applications.
- Uniform Forced Air Circulation Powerful fan-assisted air circulation maintains highly uniform temperature and humidity conditions inside the chamber.
- Efficient Heating & Cooling System Long-life stainless steel heaters and hermetically sealed compressor provide fast response and dependable environmental control.
- Energy Efficient Thermal Insulation Machine-filled CFC-free polyurethane foam insulation minimizes heat loss and improves energy efficiency.
- Durable Stainless Steel Construction SS-316 internal chamber and SS-304 external body construction ensure corrosion resistance, hygiene, and long operational life.
- Advanced LCD Display System Large 4-inch LCD display provides direct viewing of humidity and temperature values with user-friendly operation and easy readability.
- Optional TFT Touch Screen Control Optional PLC-controlled 7-inch color touch screen provides enhanced monitoring, larger data storage, and Ethernet connectivity.
- Integrated Data Logging Capability Built-in memory stores environmental records while histogram recording enhances monitoring and documentation.
- Comprehensive Safety Protection Includes high temperature cutoff, overload relay protection, power failure alarms, low water level alarm, and audio-visual alerts.
- Smart Door Design Auto door closer with LED closure indication improves operational convenience and chamber sealing efficiency.
- 21 CFR Part 11 Compatible Software Support Optional REMI Datasoft software supports advanced data acquisition and regulatory compliance requirements.
Frequently Asked Questions (FAQ)
What is the REMI SC-6 PLUS Stability Chamber used for?
The REMI SC-6 PLUS Stability Chamber is primarily used for long-term, intermediate, and accelerated stability studies in pharmaceutical, chemical, agrochemical, biotechnology, and research laboratories.
It provides highly controlled temperature and humidity conditions required for product stability testing, shelf-life studies, and quality assurance applications.
Which stability testing conditions are supported by the SC-6 PLUS?
The chamber supports commonly required ICH stability testing conditions including 25°C/60% RH, 30°C/65% RH, and 40°C/75% RH.
These controlled environmental conditions are essential for pharmaceutical and industrial stability testing protocols.
How does the chamber maintain temperature and humidity uniformity?
The SC-6 PLUS uses a powerful forced air circulation system combined with precision microprocessor control and capacitance-type humidity sensing.
This integrated system ensures highly stable and uniform environmental conditions throughout the chamber interior.
Does the REMI SC-6 PLUS include data logging functionality?
Yes, the standard LCD version includes built-in memory for storing up to 1000 environmental records, while the optional TFT version supports storage of up to 1500 records.
The chamber also supports printer connectivity and optional REMI Datasoft software for advanced data acquisition and regulatory compliance.
What safety features are available in the SC-6 PLUS Stability Chamber?
The chamber includes multiple safety systems such as power failure alarms, high temperature cutoff protection, compressor overload relay protection, low water level alarm, compressor time delay protection, and audio-visual alarms for environmental deviations.
These safety mechanisms help protect samples, maintain operational reliability, and improve user safety during long-term testing applications.
Which industries commonly use REMI Stability Chambers?
REMI Stability Chambers are widely used in pharmaceutical manufacturing, biotechnology laboratories, chemical industries, agrochemical facilities, research institutions, quality control laboratories, and regulated testing environments.
Their precise environmental control and regulatory compliance make them ideal for critical product stability and storage studies.
