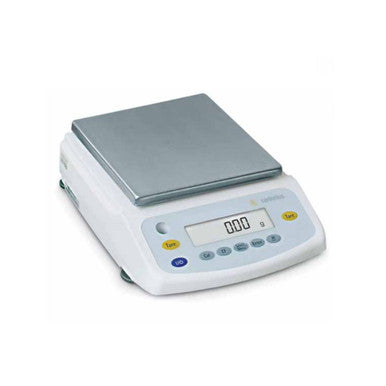

Sartorius BSA3202S-CW Precision Balance
Overview and Design
The Sartorius BSA3202S-CW is an electronic precision balance part of the robust Sartorius BSA series, specifically engineered to carry out reliable and effective daily weighing work in the laboratory. This balance features a design focused on simplifying laboratory tasks, offering ultra-fast response and practical functionality.
Key Features and Operation
This model is equipped with a built-in, motorized calibration weight, allowing for internal calibration and adjustment to ensure optimal accuracy. The BSA3202S-CW provides a clear user interface featuring clear key assignments and an excellent readability provided by a backlit 14 segment display (15mm character high white backlight high contrast display).
Key operational features include:
• Two dedicated tare keys.
• A stability indicator for reliable readings.
• Four user-selectable filter levels.
• An optimized display update rate for quick results.
• Overload protection to maintain the integrity of the weighing cell.
• Leveling feet and a level indicator for easy setup.
Integrated Application Programs
The BSA3202S-CW comes equipped with a suite of integrated application programs, offering ideal functions to ensure error-free weighing operations across various laboratory tasks.
Available applications include:
• Weighing
• Counting with automatic reference sampling updating
• Weighing in percent
• Totalizing and Net-Total functions
• Density Determination
• Animal Weighing
• Mass unit conversion by toggling
• Calculation (multiplication and division)
Connectivity, Data Management, and Security
The balance features a bidirectional RS-232 data interface port (RS232C 25-pin) for seamless data communication. When connected to the Sartorius printer YDP20-0CE, the balance supports ISO/GLP-compliant printing and recording of both weighing and calibration data.
The design also includes practical hardware enhancements for laboratory workflow and security:
• A hanger is supplied for convenient below-balance weighing.
• A lug is included for attaching an anti-theft locking device, securing the equipment.
BSA3202S-CW Technical Specifications
|
Parameter
|
Value
|
|
Model Number
|
BSA3202S-CW
|
|
Brand
|
Sartorius BSA
|
|
Type
|
Electronic Precision Balance
|
|
Capacity (Maximum Weighing)
|
3200 g (3,200 g)
|
|
Readability / Resolution
|
0.01 g (10 mg)
|
|
Repeatability
|
<=± 0.01 g (10 mg)
|
|
Linearity
|
<=± 0.02 g (20 mg)
|
|
Tare Range (Subtractive)
|
3200 g
|
|
Response Time (Average)
|
1.1 s
|
|
Calibration
|
Built-in, motorized (Internal)
|
|
Weighing Pan Size
|
180 x 180 mm (⌀ 180 mm)
|
|
Data Interface
|
Bidirectional RS-232 data interface port (RS232C 25-pin)
|
|
Housing Dimensions (W x D x H)
|
230 x 310 x 91 mm
|
|
Net Weight
|
Approx. 3.6 kg
|
|
Power Requirements
|
100 - 240 V ~, -10% | + 10%, 50 - 60 Hz, 0.2 A
|
|
Below-Balance Weighing
|
Yes (Hanger included)
|
