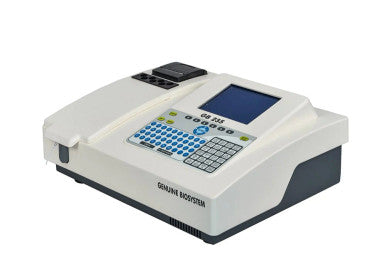

Semi Automated Biochemistry Analyzer GB 235
The GB 235 Semi Automated Biochemistry Analyzer is a reliable and high-precision laboratory instrument designed for accurate biochemical testing in diagnostic labs, hospitals, and research facilities. Supporting up to 48 parameters, it delivers consistent performance across routine and specialized assays.
Equipped with a 7-inch true color touch screen, advanced optical system, and Peltier temperature control, the analyzer ensures stable reaction conditions and highly reproducible results. Its dual testing capability using both flow cell and cuvette modes enhances flexibility for different laboratory workflows.
With multiple testing methods including endpoint, kinetics, fixed-time, and coagulation, along with built-in printer and connectivity options, the GB 235 provides an efficient, user-friendly, and cost-effective solution for modern biochemical analysis.
Technical Specifications
| Parameter / Feature | Details |
|---|---|
| Model | GB 235 |
| Type | Semi Automated Biochemistry Analyzer |
| Parameters | Up to 48 |
| Test Methods | 1-point, 2-point (sample blank), kinetics, fixed-time, coagulation |
| Optical Filters | 340, 405, 450, 505, 546, 578, 630 nm (+2 optional) |
| Light Source | Tungsten halogen lamp (6V/10W) with auto-sleep |
| Photometric Range | 0.0000 – 4.0000 Abs |
| Resolution | 0.0001 Abs |
| Temperature Control | Peltier system (25°C, 30°C, 37°C, Room Temp) |
| Display | 7-inch TFT LCD Touch Screen (800×480) |
| Flow Cell | 18 µL, 10 mm path length |
| Printer | Built-in thermal printer (57 mm) |
| Processor | ARM Cortex-A8 (720 MHz) |
| Memory | DDR2 SDRAM (1 Gbit) |
| Connectivity | 4 USB ports, 1 Ethernet port |
Core Features & Benefits
- High Precision Optical SystemAdvanced multi-filter optics ensure accurate and reliable biochemical test results across multiple parameters.
- Multiple Testing ModesSupports endpoint, kinetics, fixed-time, and coagulation methods for versatile laboratory applications.
- Peltier Temperature ControlMaintains stable reaction temperatures, ensuring consistency and repeatability in every test.
- User-Friendly Touch Interface7-inch color touchscreen simplifies operation and reduces training time for lab technicians.
- Dual Testing FlexibilityFlow cell and cuvette modes allow adaptation to different sample types and workflows.
- Integrated Printing & ConnectivityBuilt-in printer and multiple ports enable easy data recording and transfer.
Frequently Asked Questions (FAQ)
What is a semi automated biochemistry analyzer?
A semi automated biochemistry analyzer is a laboratory instrument used to measure biochemical parameters in blood and other samples. It combines manual sample preparation with automated analysis, ensuring accurate, cost-effective testing for clinical diagnostics and laboratory applications.
What tests can the GB 235 perform?
The GB 235 supports up to 48 biochemical parameters including liver, kidney, lipid, and glucose tests. It performs endpoint, kinetic, fixed-time, and coagulation assays, making it suitable for both routine diagnostics and specialized laboratory testing.
Why is Peltier temperature control important?
Peltier temperature control ensures stable reaction conditions during biochemical analysis. This improves accuracy and reproducibility, making test results more reliable across different assays and laboratory environments.
What is the benefit of flow cell and cuvette modes?
Flow cell mode enables continuous testing for high efficiency, while cuvette mode allows individual sample analysis. This dual functionality provides flexibility for different laboratory workflows and testing requirements.
Is the GB 235 suitable for small laboratories?
Yes, the GB 235 is compact, easy to operate, and cost-effective, making it ideal for small to medium laboratories, diagnostic centers, and clinics requiring reliable biochemical analysis.
