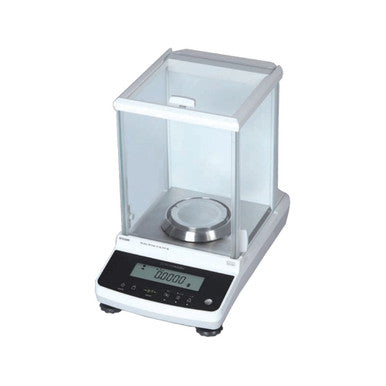

Shimadzu ATX224R Analytical Balance – High Precision Internal Calibration Laboratory Balance
The Shimadzu ATX224R Analytical Balance is a premium high-precision laboratory weighing instrument engineered for advanced analytical measurement applications in pharmaceutical laboratories, chemical research facilities, academic institutions, biotechnology laboratories, and industrial quality control environments. Part of the highly reliable Shimadzu AT-R Series, this analytical balance delivers exceptional weighing performance with a 220 g capacity and ultra-fine 0.1 mg readability for precise analytical workflows.
Designed for laboratories requiring dependable repeatability and measurement stability, the ATX224R incorporates a built-in internal calibration system (i-CAL) utilizing an integrated calibration weight to maintain accurate weighing performance automatically without the need for external calibration masses. This advanced calibration technology improves laboratory efficiency while ensuring compliance with demanding analytical standards.
The Shimadzu ATX224R analytical balance features advanced environmental compensation modes including High-Stability Mode, Anti-Convection Mode, and Pouring Mode, allowing laboratories to optimize balance response under varying environmental conditions. These intelligent operating modes help minimize the effects of vibration, airflow, and ambient temperature fluctuations, resulting in highly stable and reproducible measurement data.
Equipped with modern connectivity options including USB and RS232C communication interfaces, the balance enables seamless data transfer, laboratory reporting, and integration with computer systems. Its WindowsDirect functionality further simplifies laboratory data management by allowing direct transfer of weighing results into applications such as Microsoft Excel without additional software installation.
With advanced application programs including density determination, percentage weighing, formulation, and piece counting, the Shimadzu ATX224R is an ideal solution for precision laboratory analysis, research applications, pharmaceutical testing, and regulated laboratory environments requiring consistent analytical accuracy.
Technical Specifications
| Parameter / Feature | Details |
|---|---|
| Product Type | Analytical Balance |
| Model | Shimadzu ATX224R |
| Series | AT-R Series |
| Brand | Shimadzu |
| Maximum Capacity | 220 g |
| Readability | 0.1 mg |
| Calibration System | Built-in Internal Calibration (i-CAL) |
| Weighing Pan Size | Approx. 91 mm Diameter |
| Display Type | LCD Digital Display |
| Operating Modes | High Stability Mode, Pouring Mode, Anti-Convection Mode |
| Application Functions | Piece Counting, Percentage Weighing, Density Measurement, Formulation Mode |
| Data Interface | RS232C (D-sub 9P), USB Device (Type B) |
| Data Transfer Feature | WindowsDirect Communication Function |
| Dimensions (W × D × H) | Approx. 213 × 356 × 338 mm |
| Net Weight | Approx. 6.2 kg |
| Power Supply | AC Adapter Input 100–240V AC, 50/60 Hz |
| Output Power | 12V, 1A |
| Connectivity Compatibility | Computer and Printer Connectivity via USB or RS232C |
| Application Areas | Pharmaceutical Labs, Chemical Analysis, Research Laboratories, Biotechnology, Quality Control |
Core Features & User Benefits
The Shimadzu ATX224R Analytical Balance is engineered to deliver exceptional analytical weighing precision, advanced calibration reliability, and intelligent laboratory performance optimization.
- Ultra-High Analytical Precision Provides exceptional 0.1 mg readability for highly accurate laboratory measurements in pharmaceutical, chemical, and scientific research applications.
- Built-in Internal Calibration System Integrated i-CAL motorized calibration technology automatically maintains weighing accuracy without requiring external calibration weights.
- Advanced Environmental Compensation High Stability Mode and Anti-Convection Mode help minimize the effects of vibration, airflow, and temperature fluctuations for stable analytical results.
- Fast Pouring and Dosing Performance Dedicated Pouring Mode delivers rapid response speed for efficient formulation, dispensing, and sample preparation workflows.
- Modern USB & RS232 Connectivity Enables seamless integration with laboratory computers, printers, and data management systems for efficient workflow automation.
- WindowsDirect Data Transfer Allows direct transfer of weighing results into Microsoft Excel and other Windows applications without requiring additional communication software.
- Multiple Laboratory Application Modes Supports percentage weighing, density determination, piece counting, and formulation functions for versatile analytical laboratory operation.
- Reliable Shimadzu Engineering Built with advanced electromagnetic weighing technology for dependable repeatability, long-term stability, and laboratory-grade durability.
Frequently Asked Questions (FAQ)
What is the weighing capacity and readability of the Shimadzu ATX224R Analytical Balance?
The Shimadzu ATX224R Analytical Balance provides a maximum weighing capacity of 220 g with an ultra-high readability of 0.1 mg, making it suitable for highly sensitive analytical laboratory measurements.
This precision level supports pharmaceutical analysis, chemical research, quality control procedures, and laboratory applications requiring accurate and repeatable weighing performance.
Does the Shimadzu ATX224R include internal calibration?
Yes, the Shimadzu ATX224R is equipped with a built-in internal calibration system known as i-CAL, which uses an integrated calibration weight for automatic calibration adjustment.
This feature improves weighing reliability, reduces operator intervention, and ensures consistent analytical accuracy throughout laboratory operation.
What connectivity options are available in the Shimadzu ATX224R?
The analytical balance includes both USB Device (Type B) and RS232C communication interfaces, enabling direct connection with computers, laboratory software systems, and printers.
It also supports WindowsDirect functionality, allowing users to transfer weighing data directly into Microsoft Excel and other Windows applications without additional software installation.
Which applications is the Shimadzu ATX224R suitable for?
The Shimadzu ATX224R is widely used in pharmaceutical laboratories, chemical research facilities, biotechnology laboratories, educational institutions, and industrial quality control departments.
Its advanced analytical precision and multiple application modes make it suitable for density determination, formulation, sample preparation, percentage weighing, and scientific analytical testing.
How does the Anti-Convection Mode improve weighing stability?
The Anti-Convection Mode helps reduce display fluctuations caused by environmental temperature changes and air currents, improving measurement stability during sensitive analytical weighing procedures.
This feature is particularly useful in laboratories where air conditioning systems, ambient airflow, or temperature variations may affect weighing consistency.
