Product Overview:
The Digital Wireless Rain Gauge MONSOON 47.3003 by TFA provides an accurate and easy way to determine rainfall amounts and monitor temperature, making it an essential accessory for gardening, agriculture, and nature enthusiasts. This radio-controlled rain gauge transmits outdoor temperature and rainfall data wirelessly to a base station, allowing you to track all important values from the comfort of your living room. Its simple design, often featuring silver buttons, ensures it is both a practical measuring device and a decorative home accessory.
Key Features and Highlights:
• Accurate Rainfall Measurement: Determines the rainfall amount easily and accurately.
• Wireless Transmission: Rainfall and outdoor temperature readings are transmitted wirelessly (maximum range of 30 metres).
• Historical Data Display: Features a bar chart display and reading history covering the last 7 days, weeks, and months.
• Temperature Monitoring: Provides indication of both indoor and outdoor temperatures.
• Maximum and Minimum Values: Tracks and displays Max.-Min. recorded values for temperature.
• Programmable Alarms: Includes an adjustable temperature alarm and a rain sensor alarm to alert you when precipitation starts or when temperatures exceed set limits.
• Time Management: Indication of time, date, and includes a Quartz clock.
• Installation Flexibility: The console can be used free-standing on a desktop or mounted on a wall.
Detailed Functionality

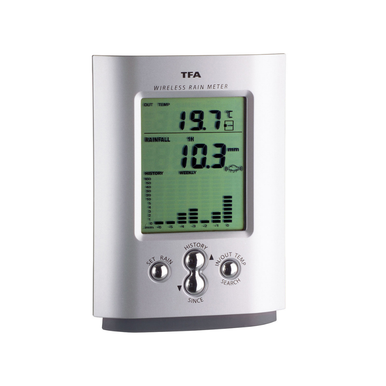

The MONSOON 47.3003 base station provides extensive meteorological data through its display:
Rainfall Tracking: The device records various measurements of precipitation, including:
• Indication of cumulative rainfall.
• Rainfall amount of the last hour.
• Rainfall amount of the last 24 hours.
• Time and date of the last rainfall recording. The middle section of the display typically shows current rainfall, total rainfall, 1-hour rainfall, 24-hour rainfall, time, and date. The bottom section graphically shows daily, weekly, and monthly rainfall values.
Temperature and Alerts: The device wirelessly transmits outdoor temperature and rainfall amounts with a temperature trend display. It also detects the temperature of the indoor environment where the base station is located. The top section of the display alternately shows the indoor and outdoor temperature values. Users can review the maximum and minimum temperature values recorded for both indoor and outdoor environments.

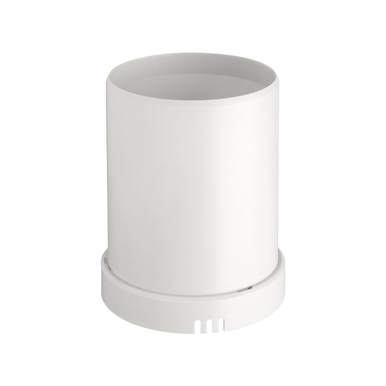

Setup and Placement: For accurate measurement, the self-emptying rain collector should be placed upright in a determined open place, free from obstructions such as buildings or trees. The sensor and main unit are wirelessly paired, eliminating the need for cables.
Technical Specifications (Model 47.3003):
|
Feature
|
Detail
|
|
Product Type
|
Digital wireless radio-controlled rain gauge
|
|
Model Number
|
47.3003
|
|
Rainfall Measuring Range
|
R: 0...9999 mm (or 0...999.9 inch)
|
|
Indoor Temperature Range
|
-10...+50°C (+14...+122°F)
|
|
Outdoor Temperature Range
|
Out T: -50...+70°C (-58...+158°F)
|
|
Maximum Wireless Range
|
30 m
|
|
Transmission Frequency
|
433 MHz
|
|
Clock Type
|
Quartz clock
|
|
Material
|
Plastic
|
|
Assembling
|
Free-standing or hung (Wall hanging or table standing)
|
|
Batteries (Base Station)
|
3 x AA 1.5 V
|
|
Batteries (Transmitter)
|
2 x AA 1.5 V (T/R-transmitter)
|
|
Batteries Included
|
Yes (5 x AA batteries total)
|
|
Transmitter Included
|
30.3161
|
|
Base Station Dimensions (HxWxD)
|
122 x 94 x 25 mm (94 x 25 (48) x 122 (130) mm)
|
|
Rain Gauge/Sensor Dimensions
|
Ø132 x 160 mm
|
|
Base Station Weight
|
114 g (or 113 g)
|
|
Display Type
|
LCD
|
|
Max/Min Value Memory
|
Available
|
